82' Width

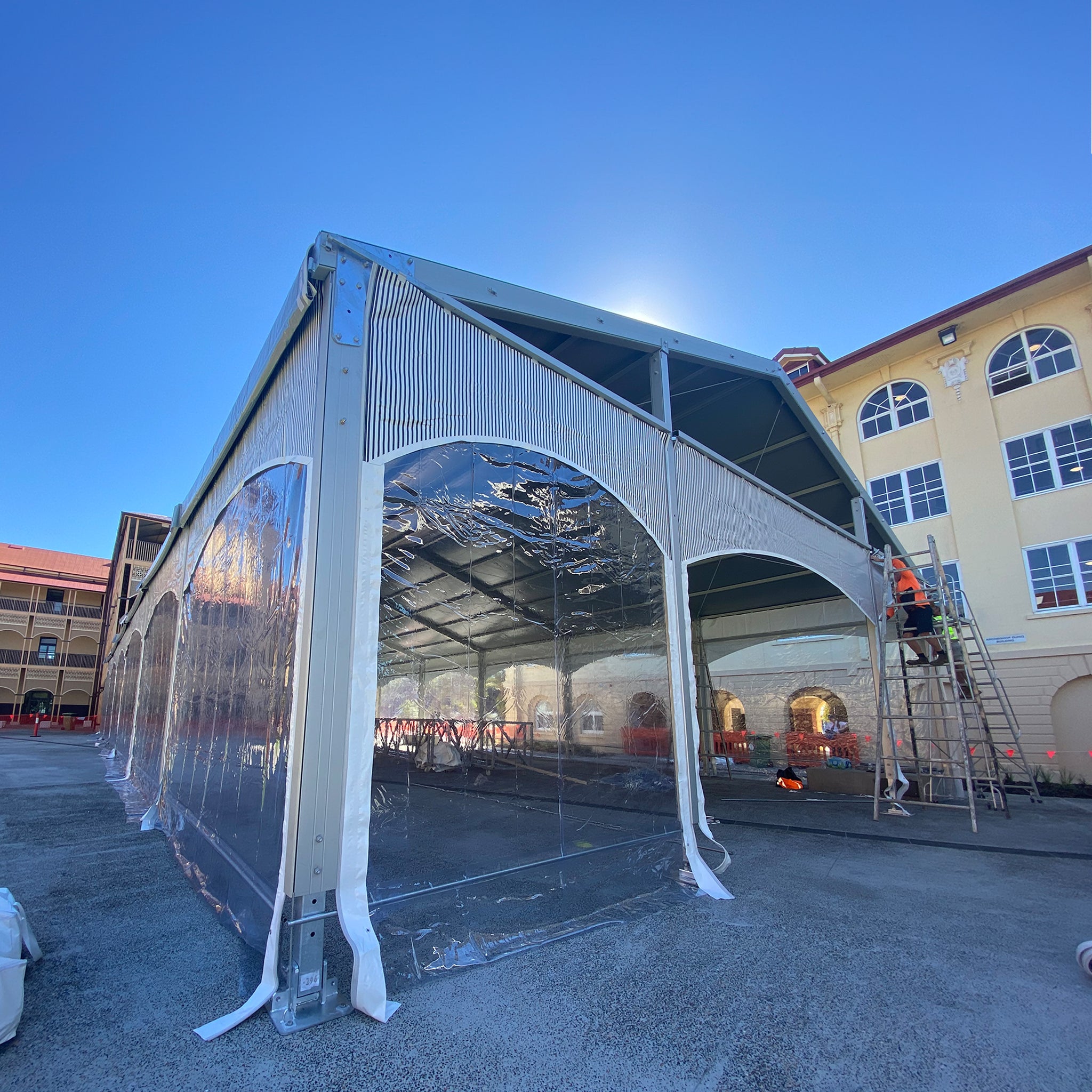

The Crest Tent 82' Wide Clear Span A-Frame is a premier event structure offering vast, unobstructed space for large gatherings. Engineered with a heavy-duty aluminum frame and a clear-span design, it provides superior durability and weather resistance. Ideal for trade shows, corporate events, and high-end weddings. Enjoy free shipping and extended warranties. Elevate your event today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	82' (25m)
Eave Height	13′ (4m)

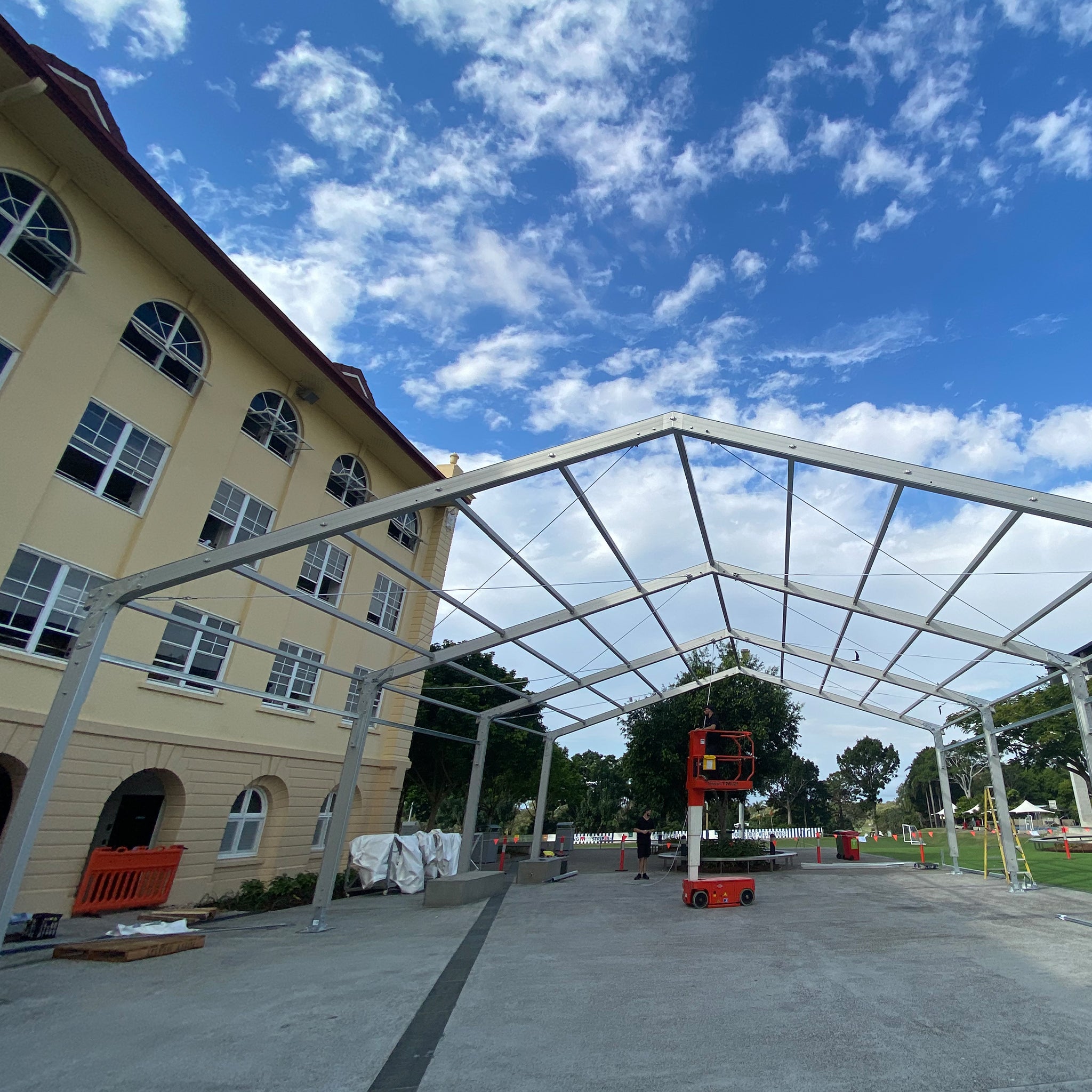

Frame Profile	203 x 112 x 4mm (4-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert

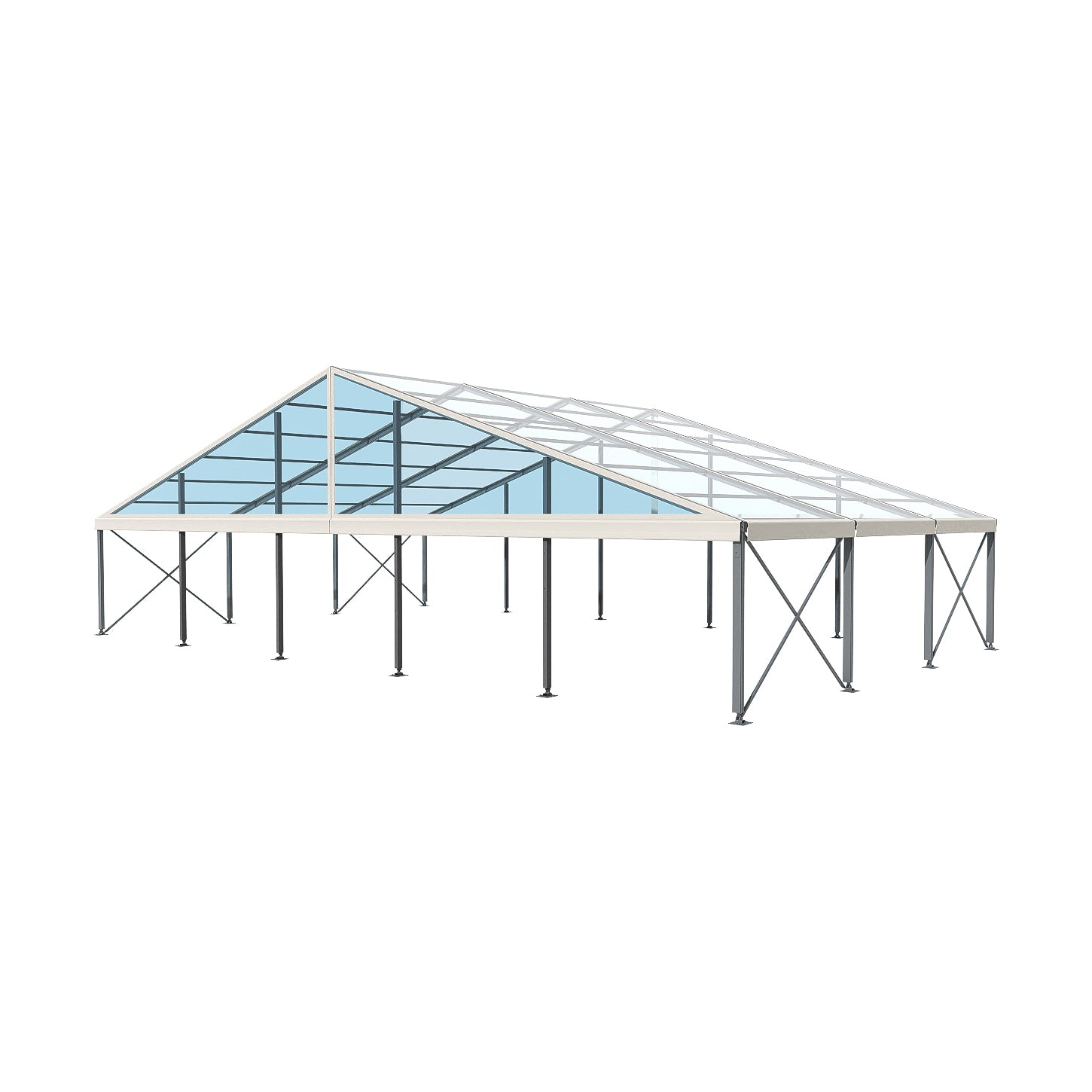

Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years



Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

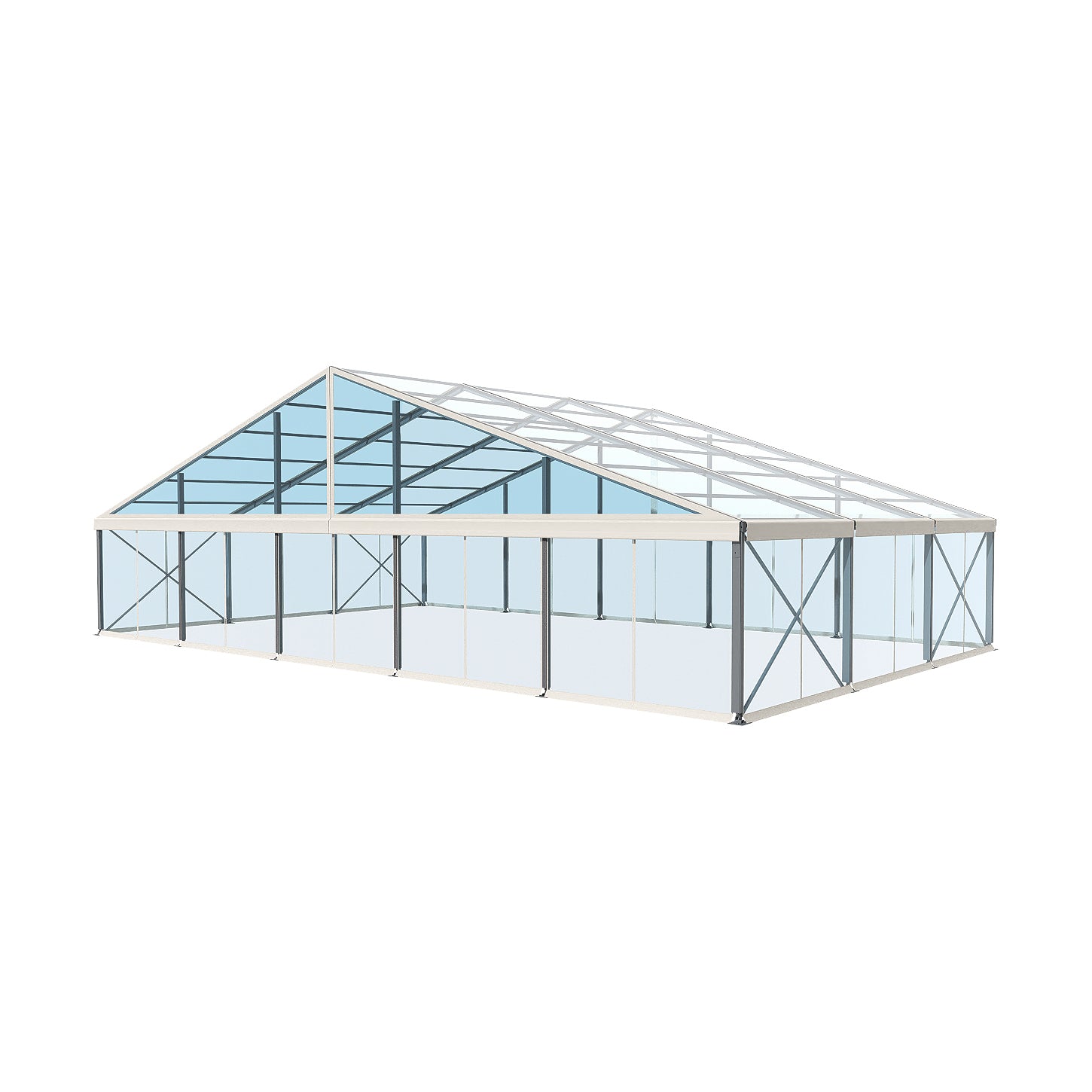

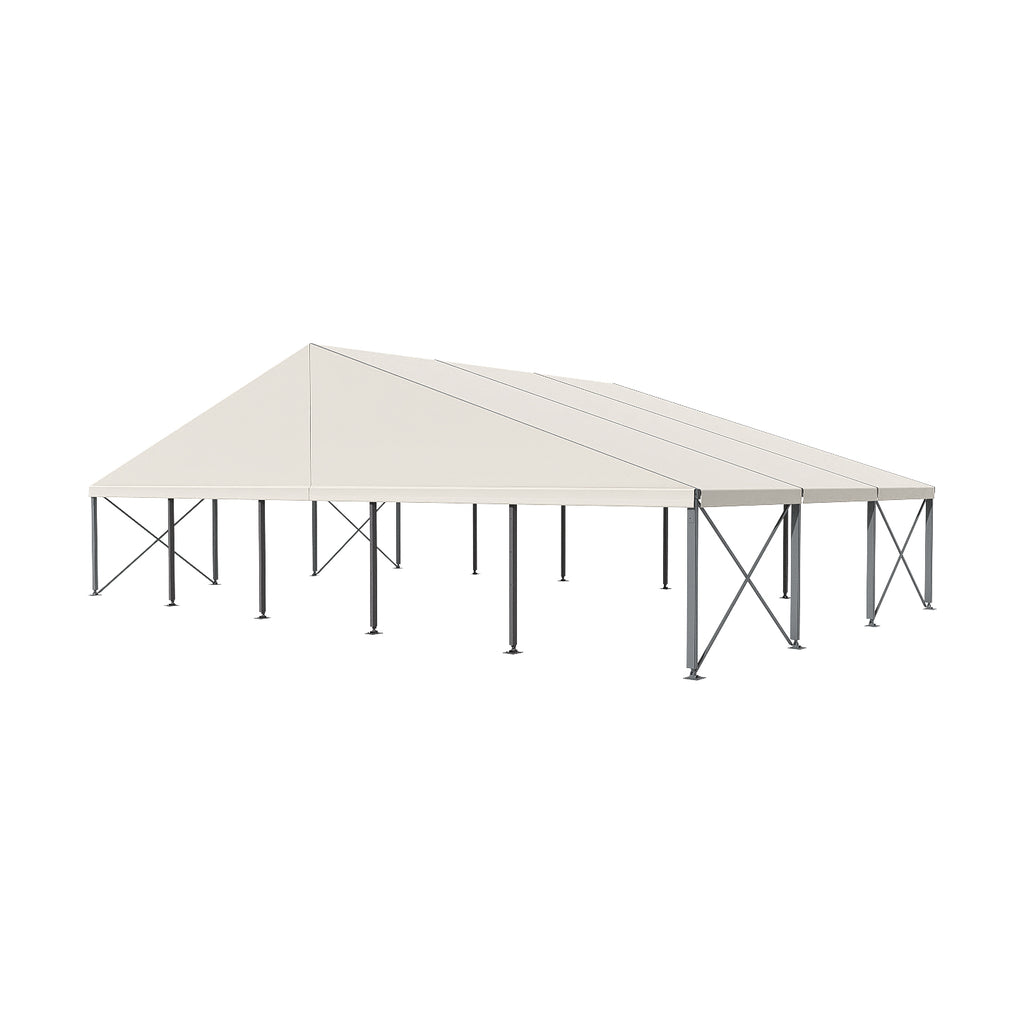

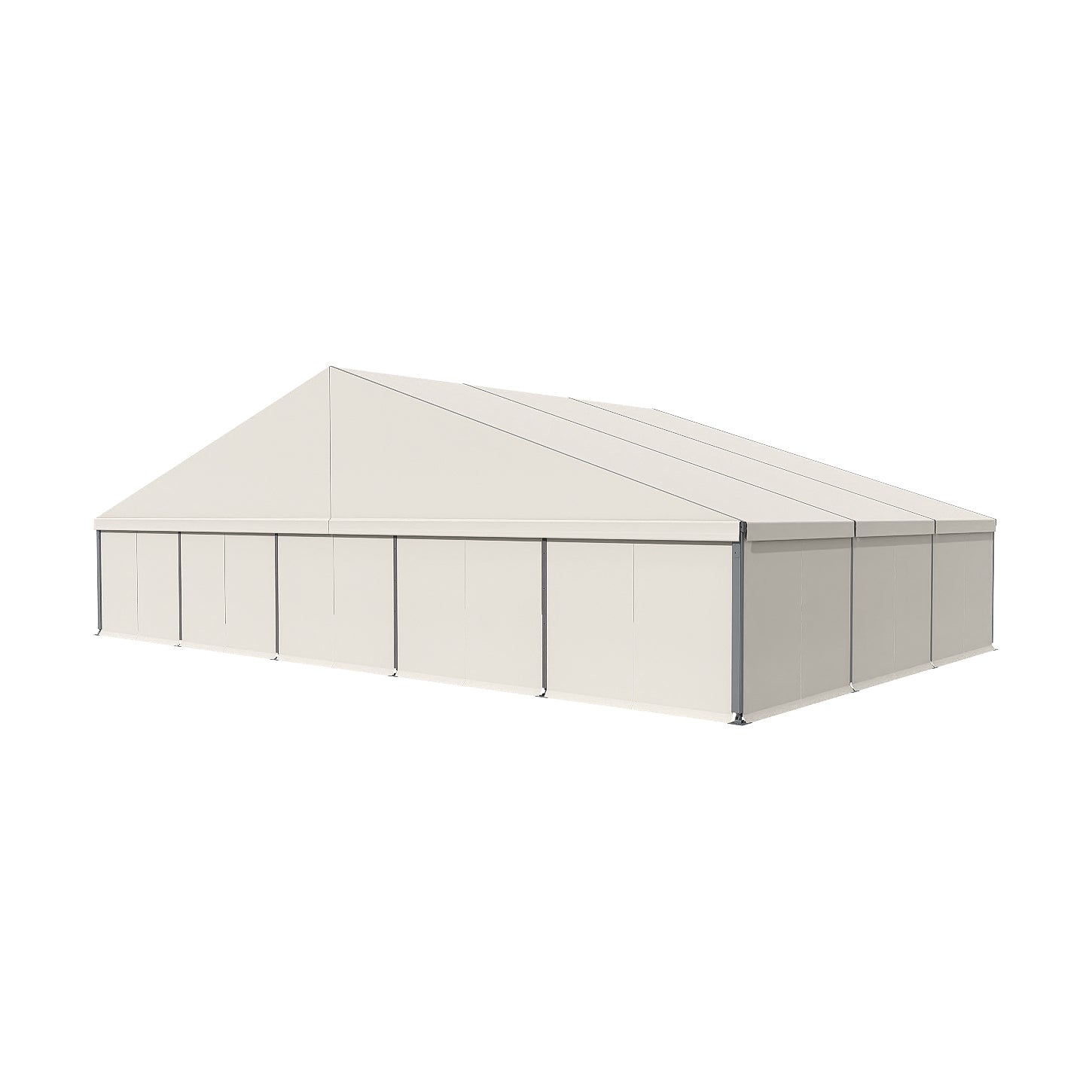

82' x 50'	381	530	265	505	400-505

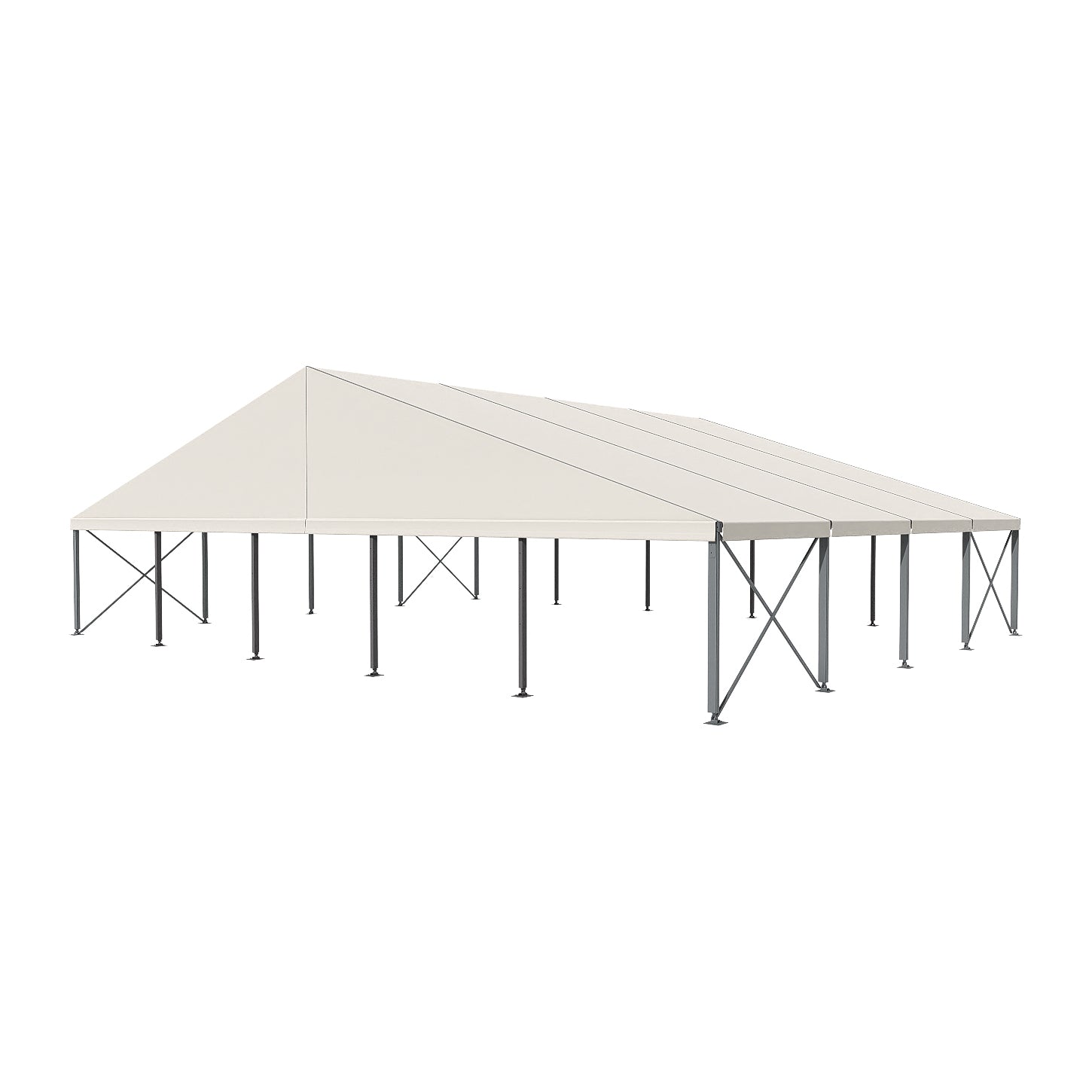

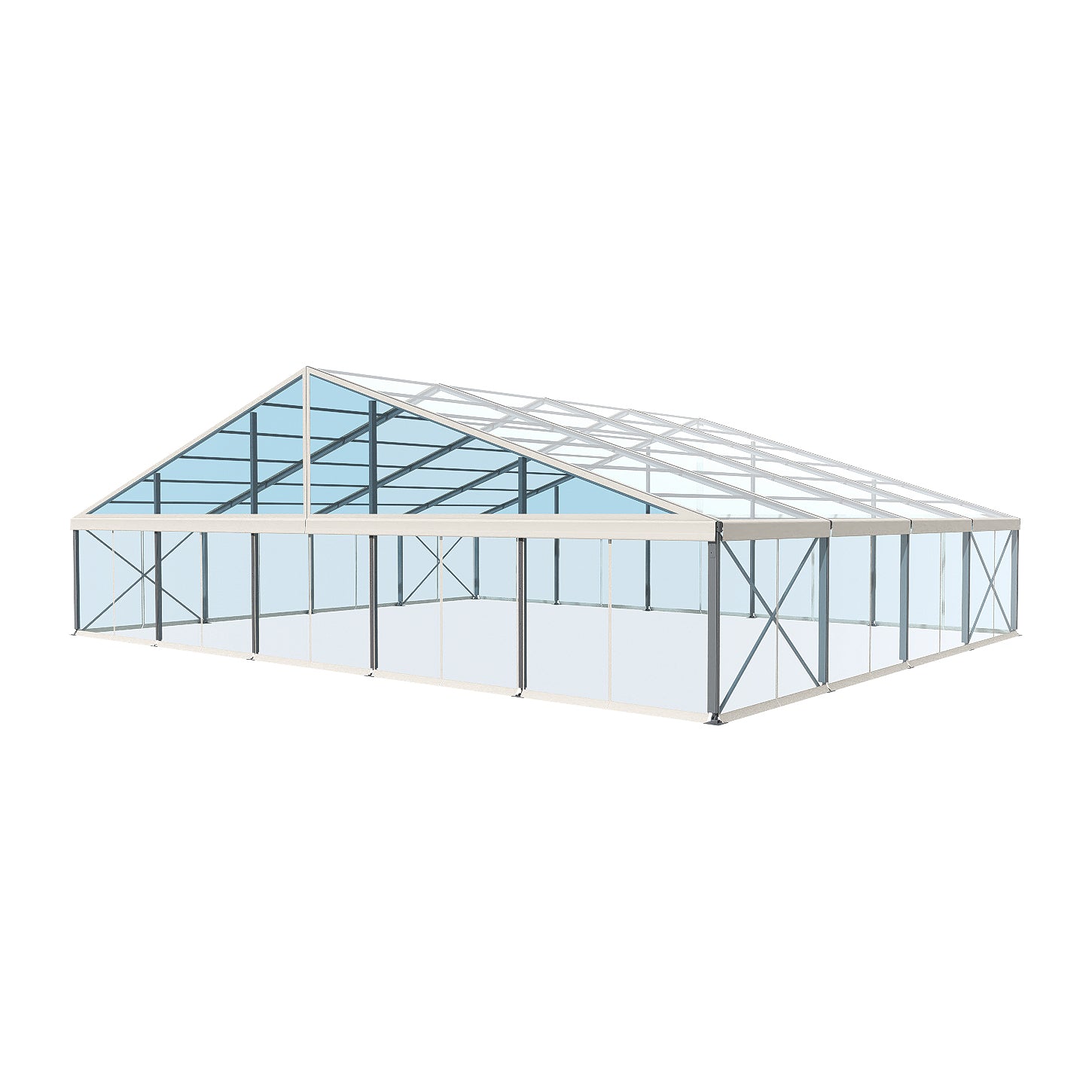

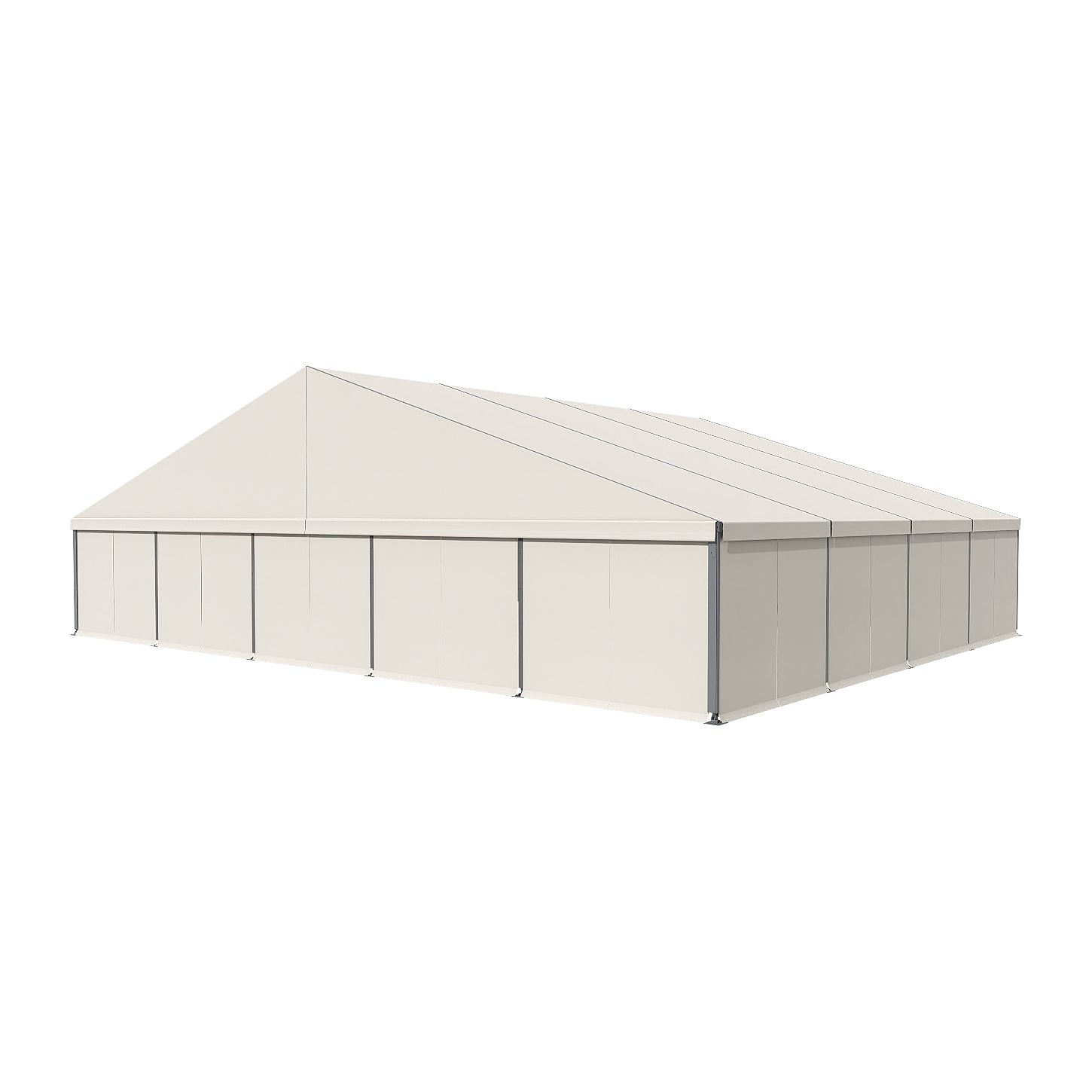

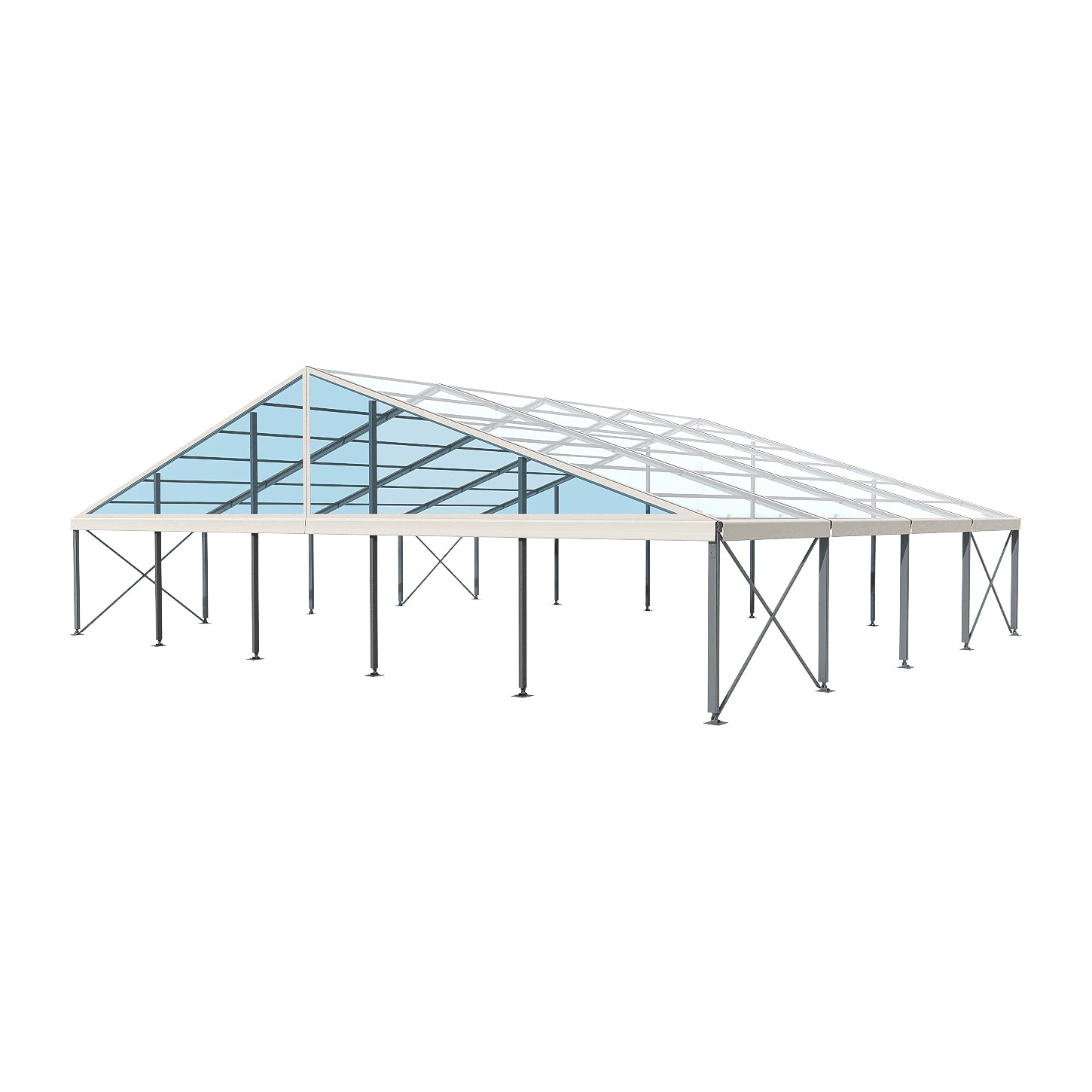

82' x 66'	502	695	345	680	540-680

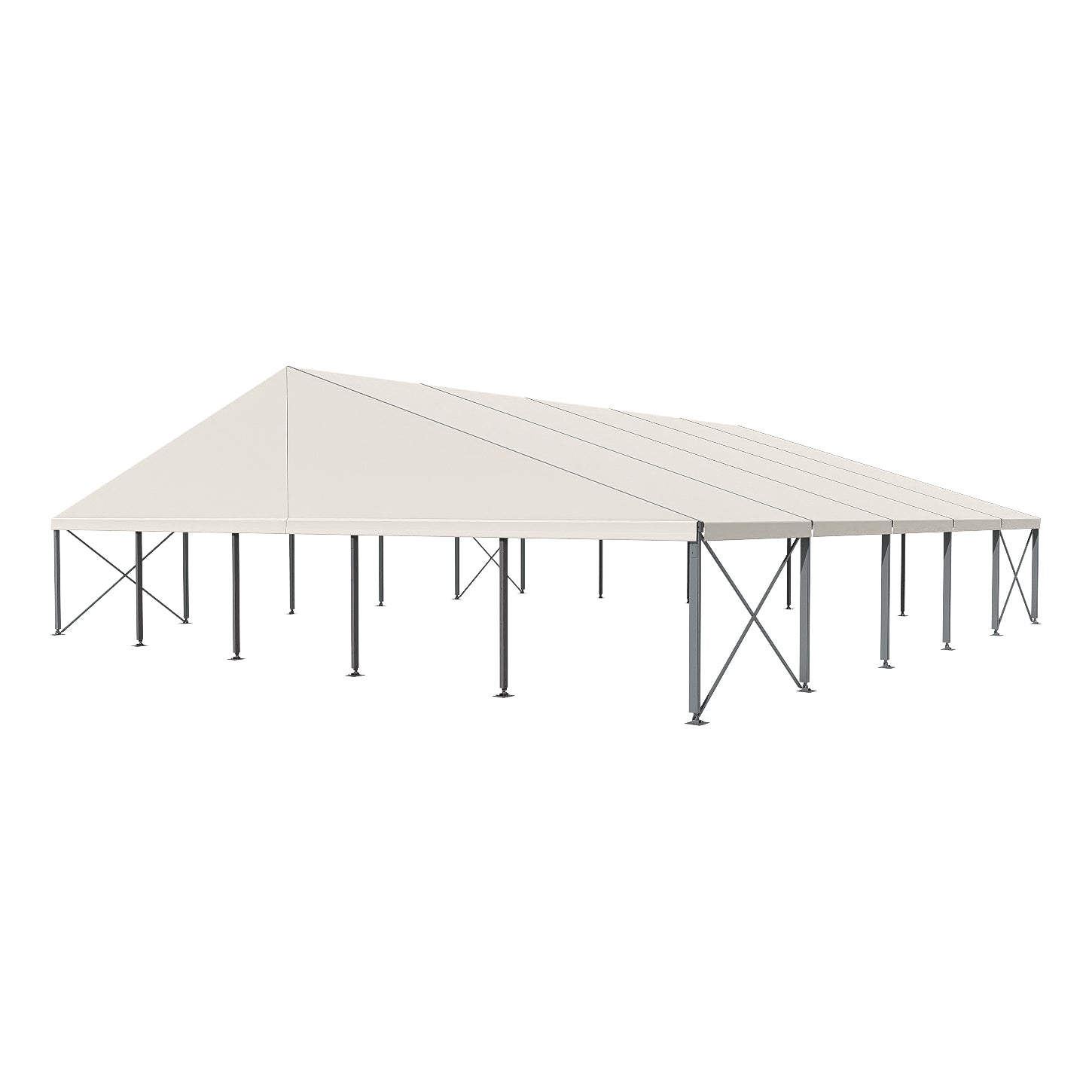

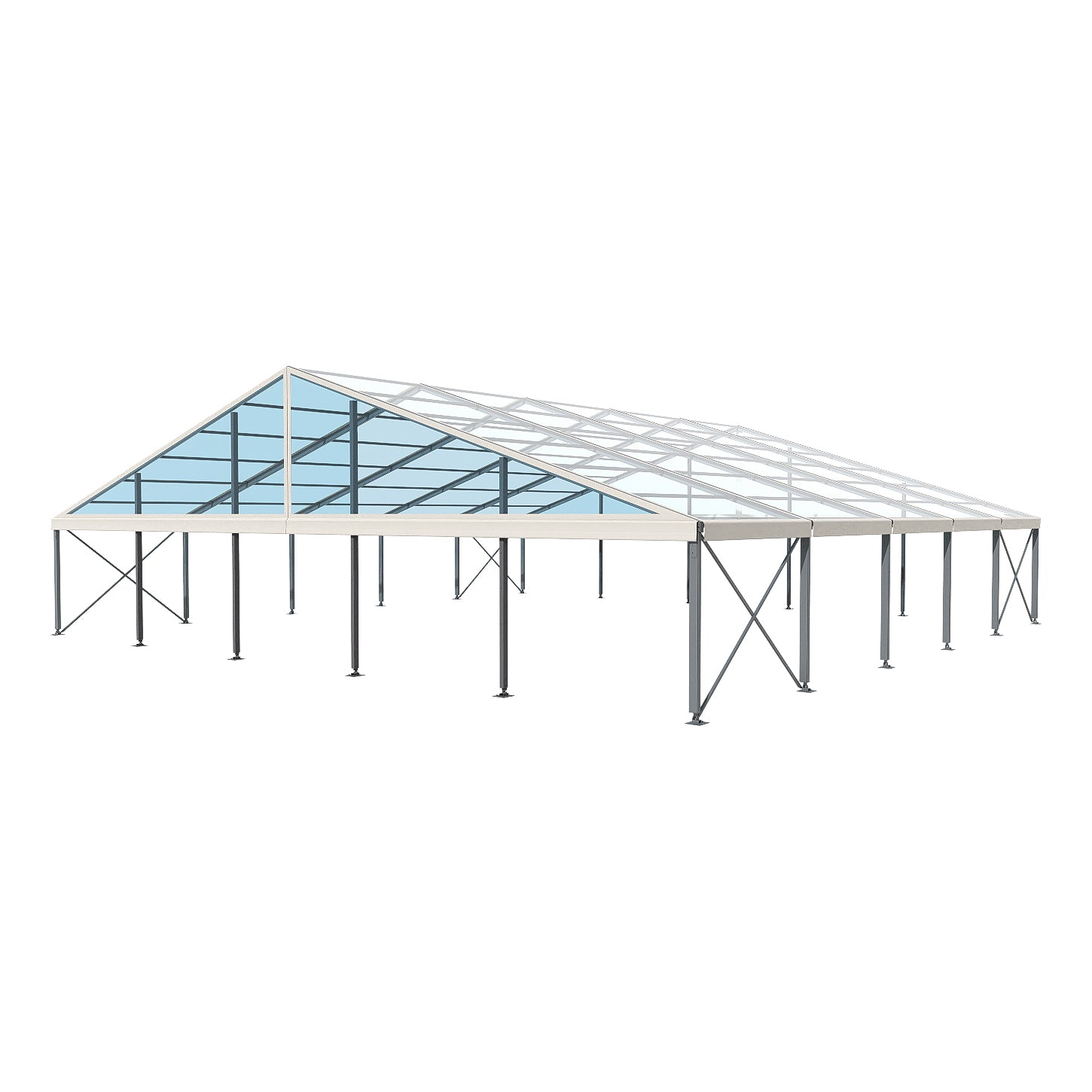

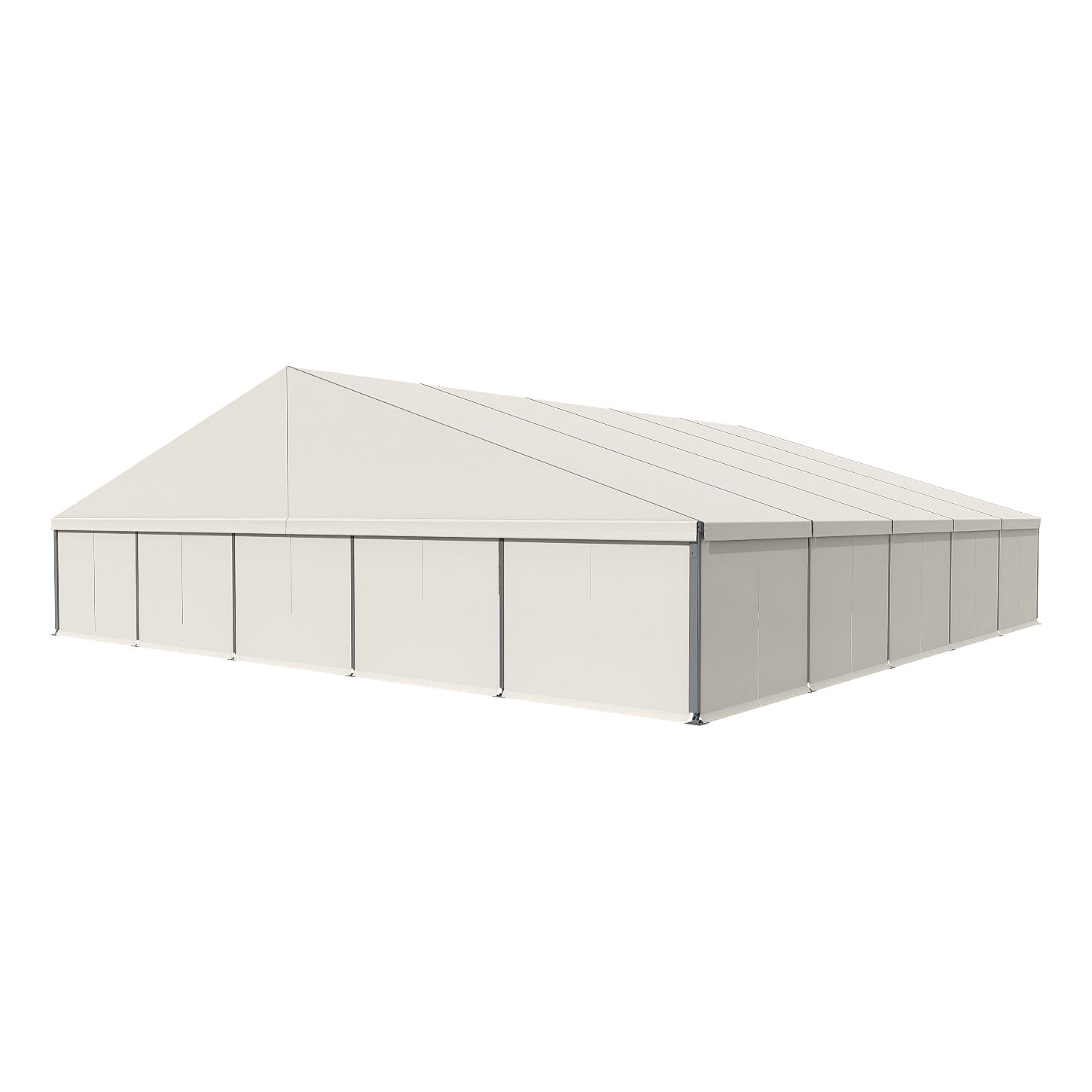

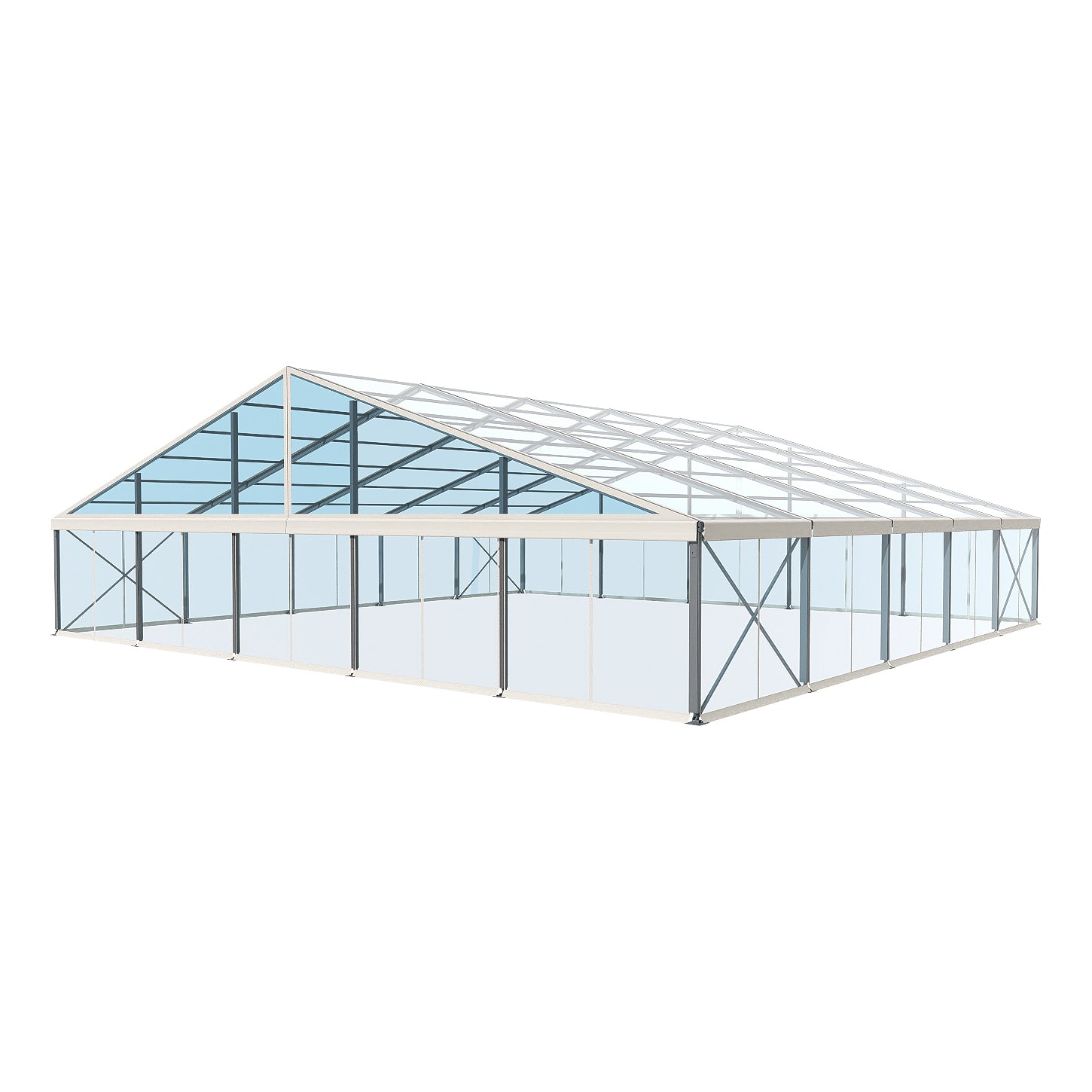

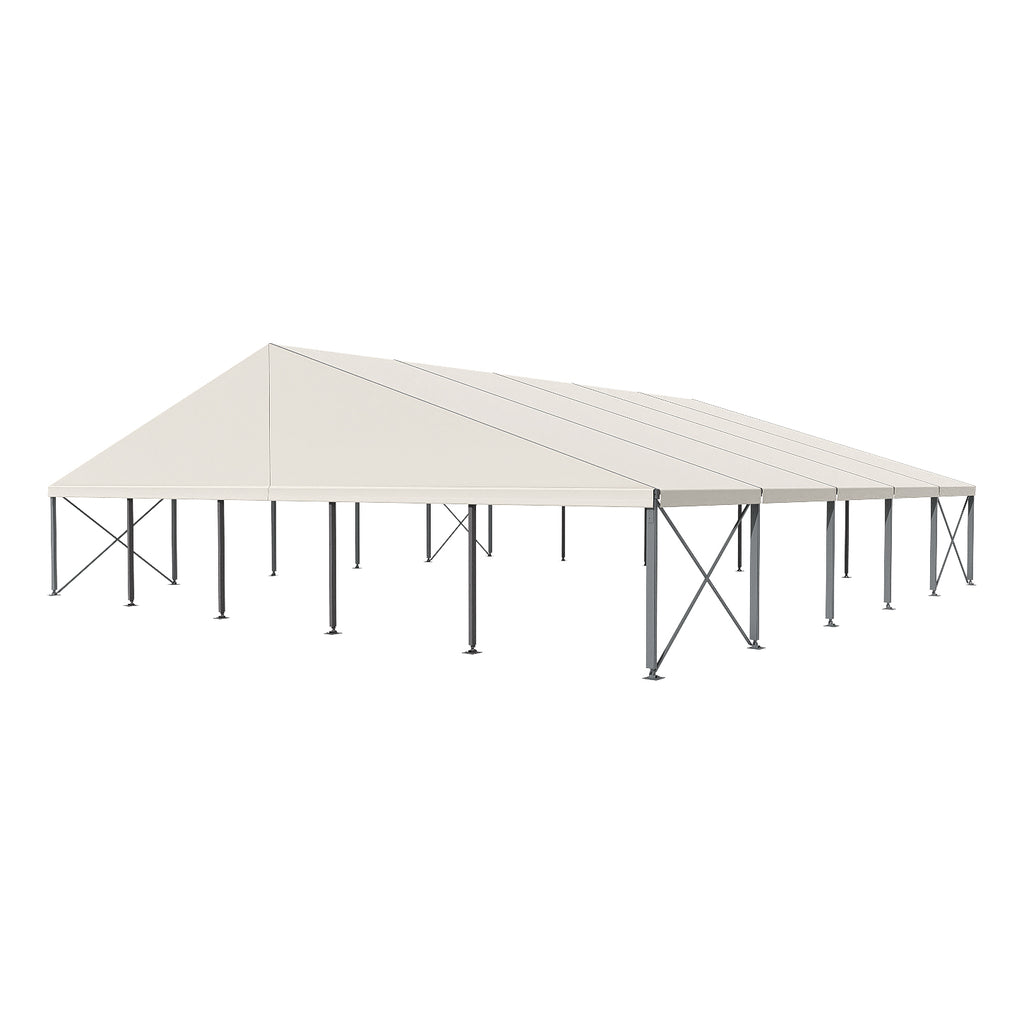

82' x 82'	625	875	435	850	675-850

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
