40' Width

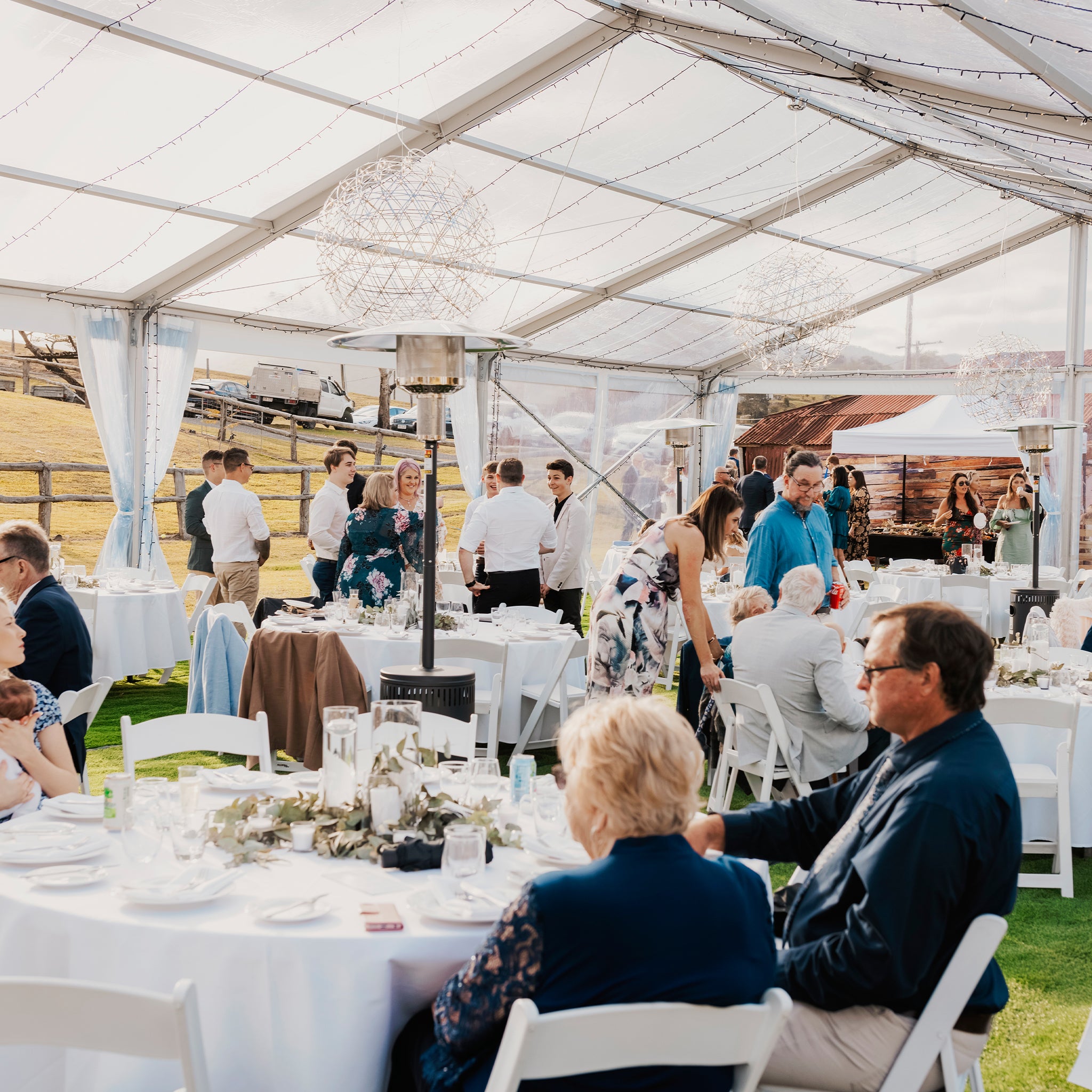

The Crest Tent 40' Wide Clear Span A-Frame is a premium event structure offering expansive coverage and a sleek, unobstructed design. Built with a reinforced aluminum frame, it provides exceptional durability and stability for large gatherings. Perfect for weddings, corporate events, and exhibitions. Enjoy free shipping and extended warranties. Upgrade your venue today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	40' (12m)
Eave Height	10′ (3m)
Frame Profile	122 x 68 x 3mm (4-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert

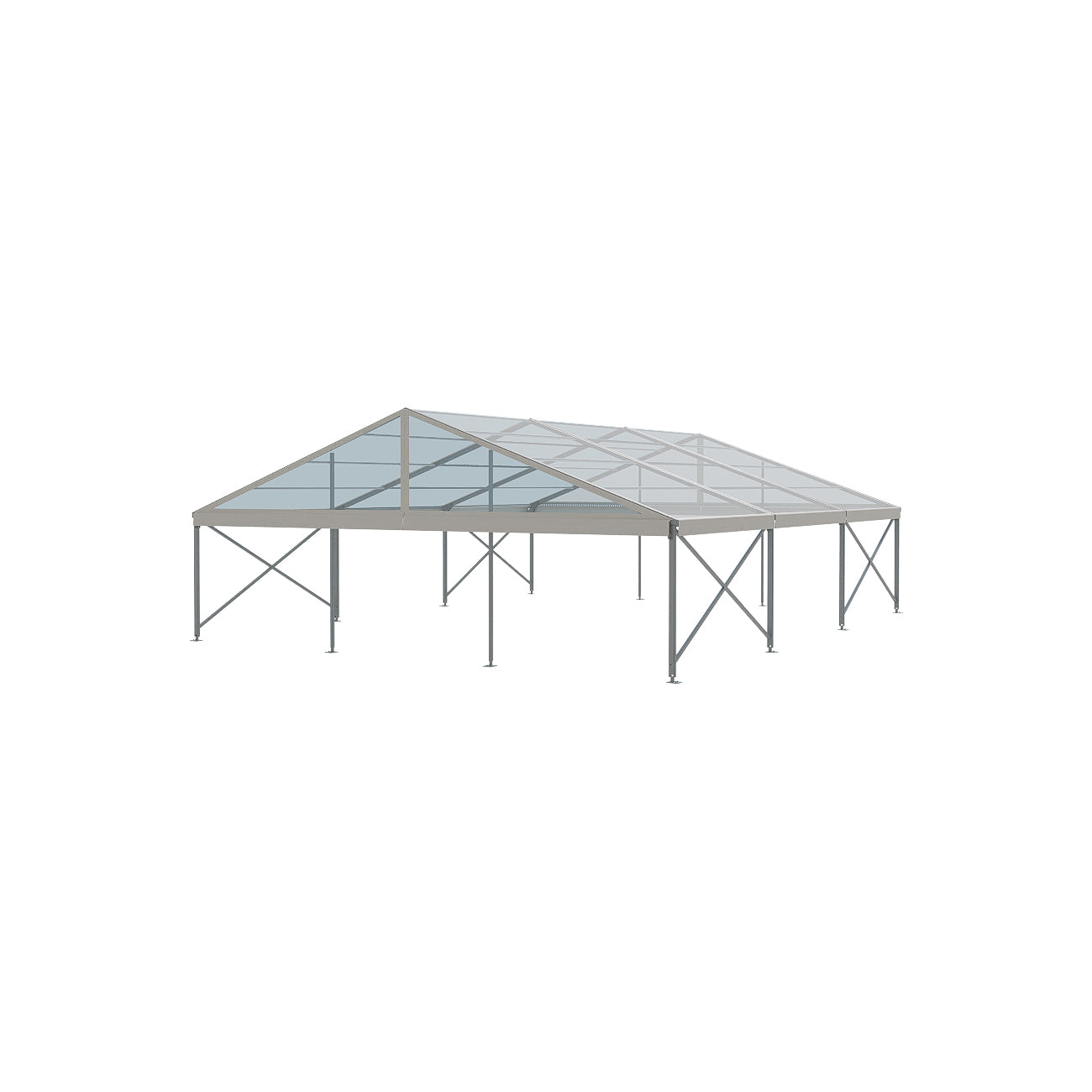

Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

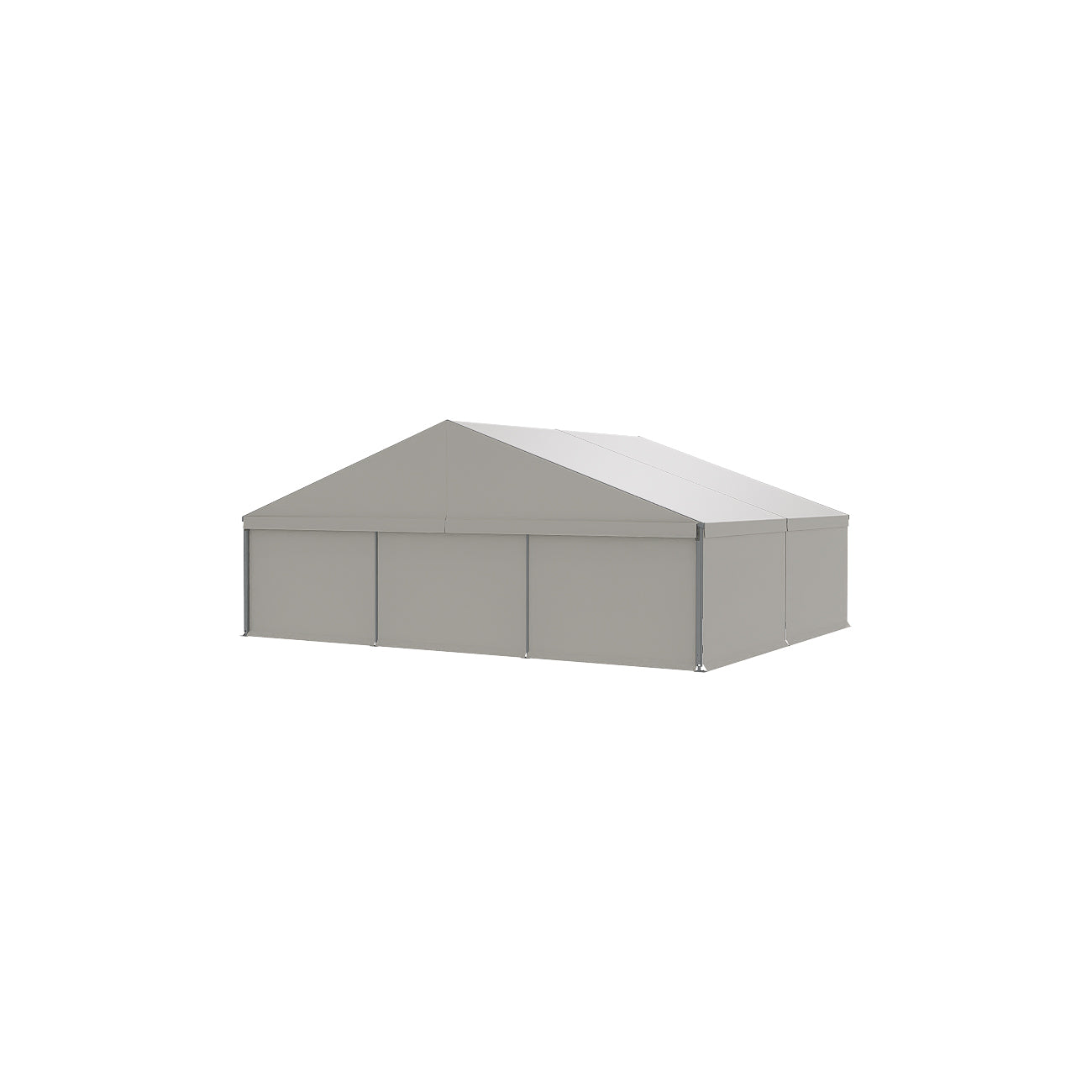

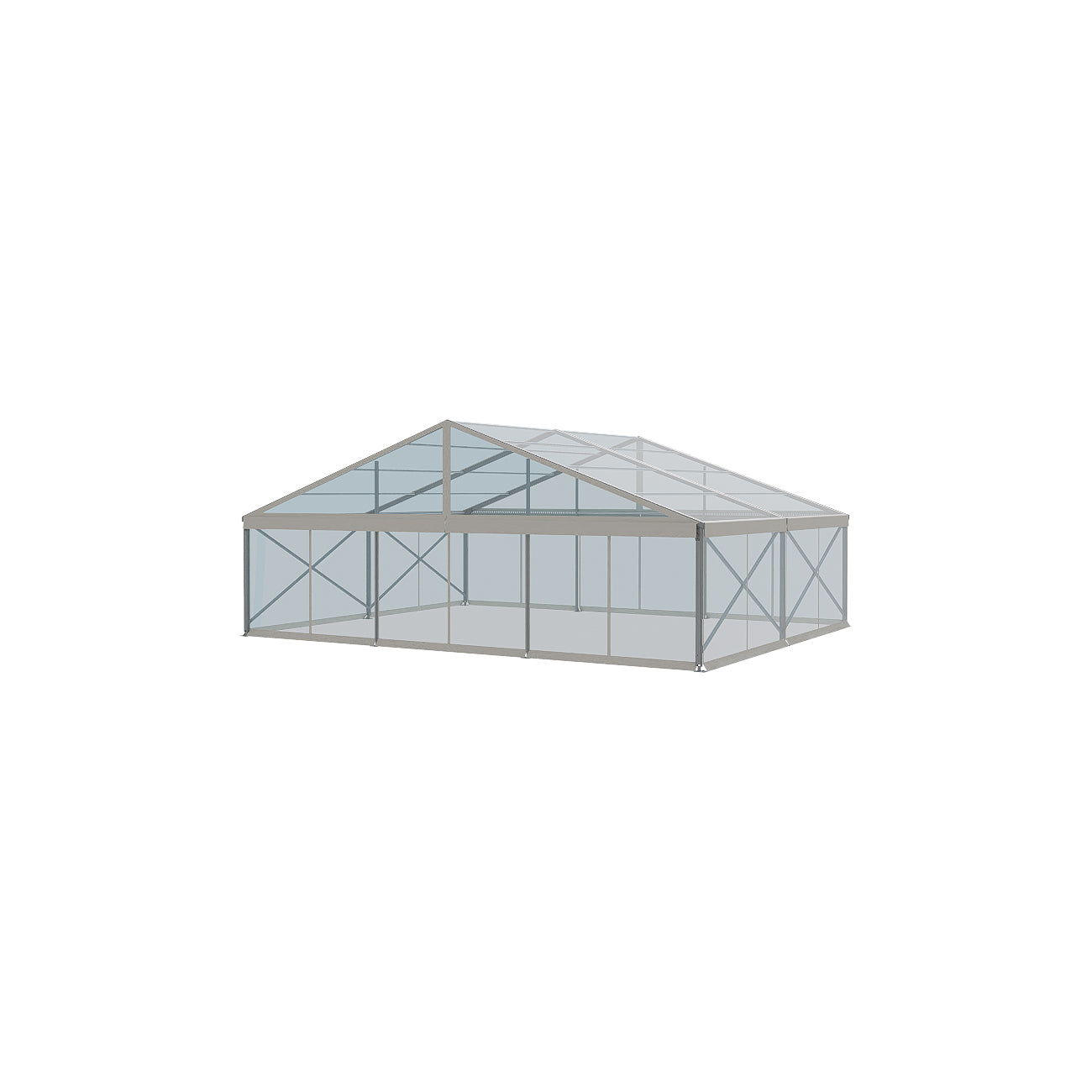

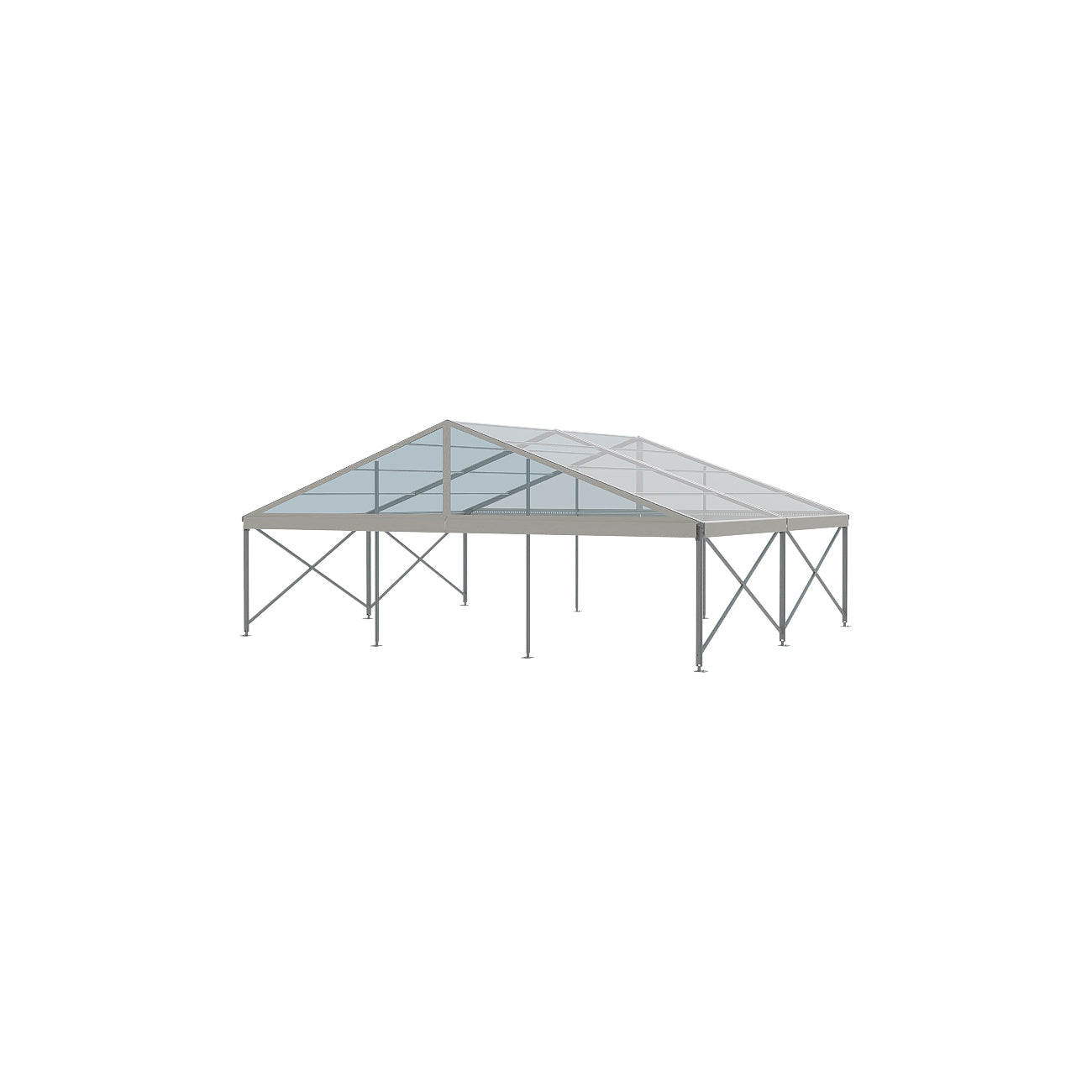

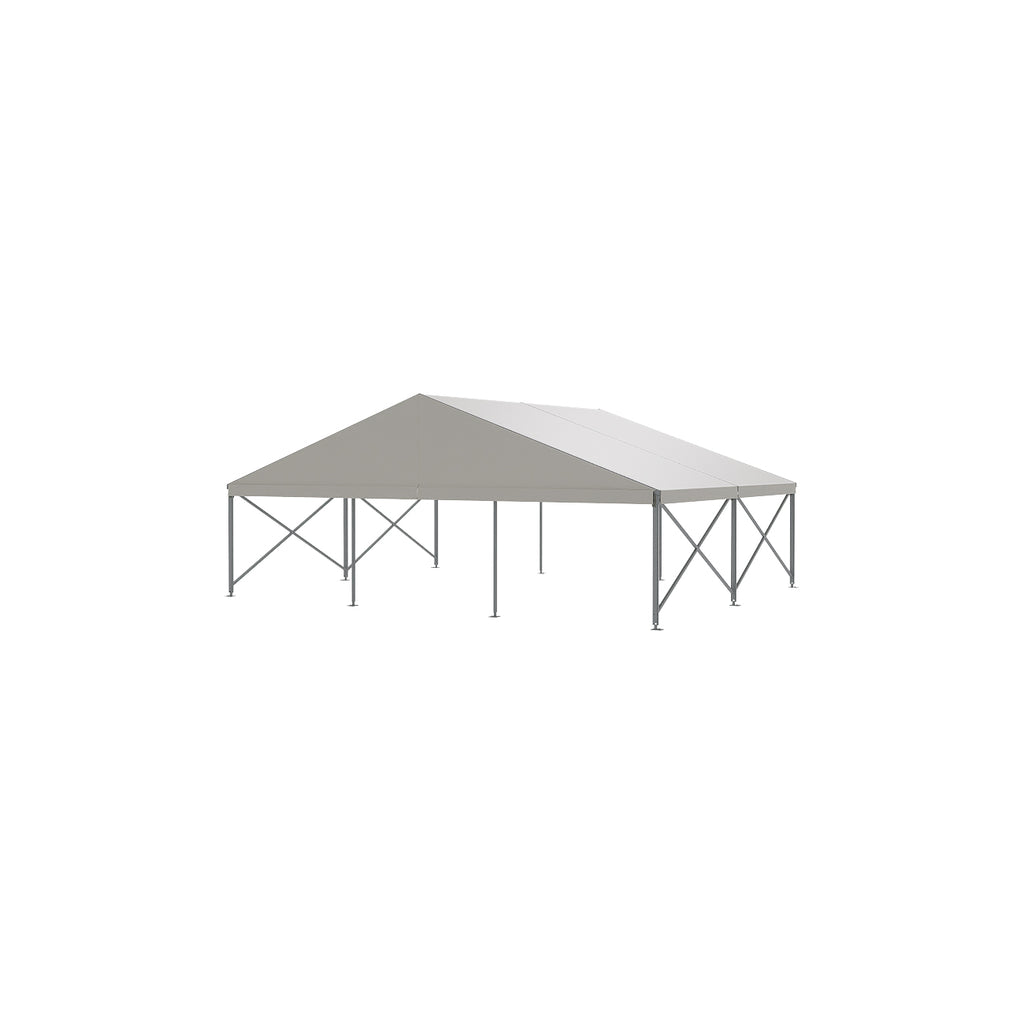

40' x 33'	123	220	130	190	130-150

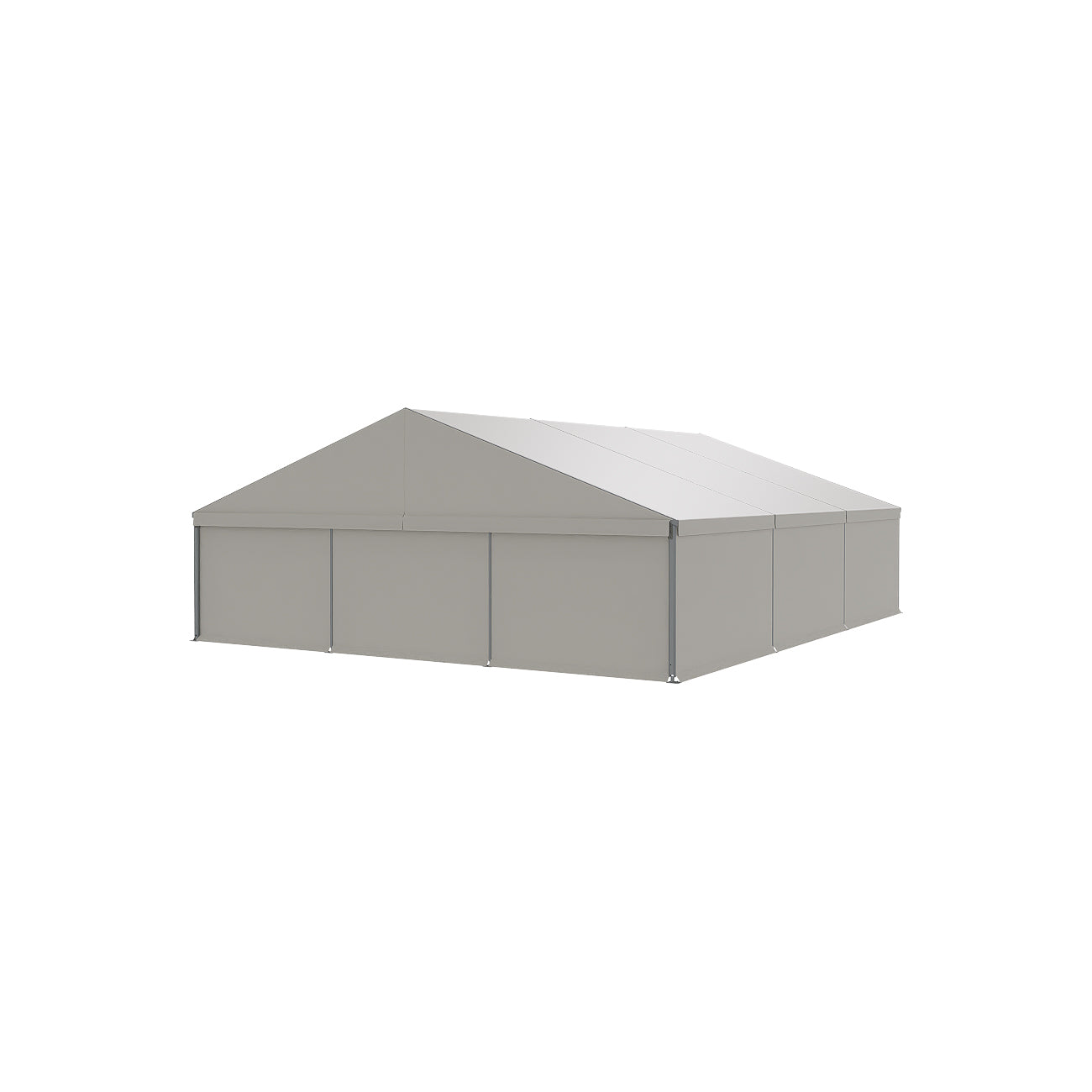

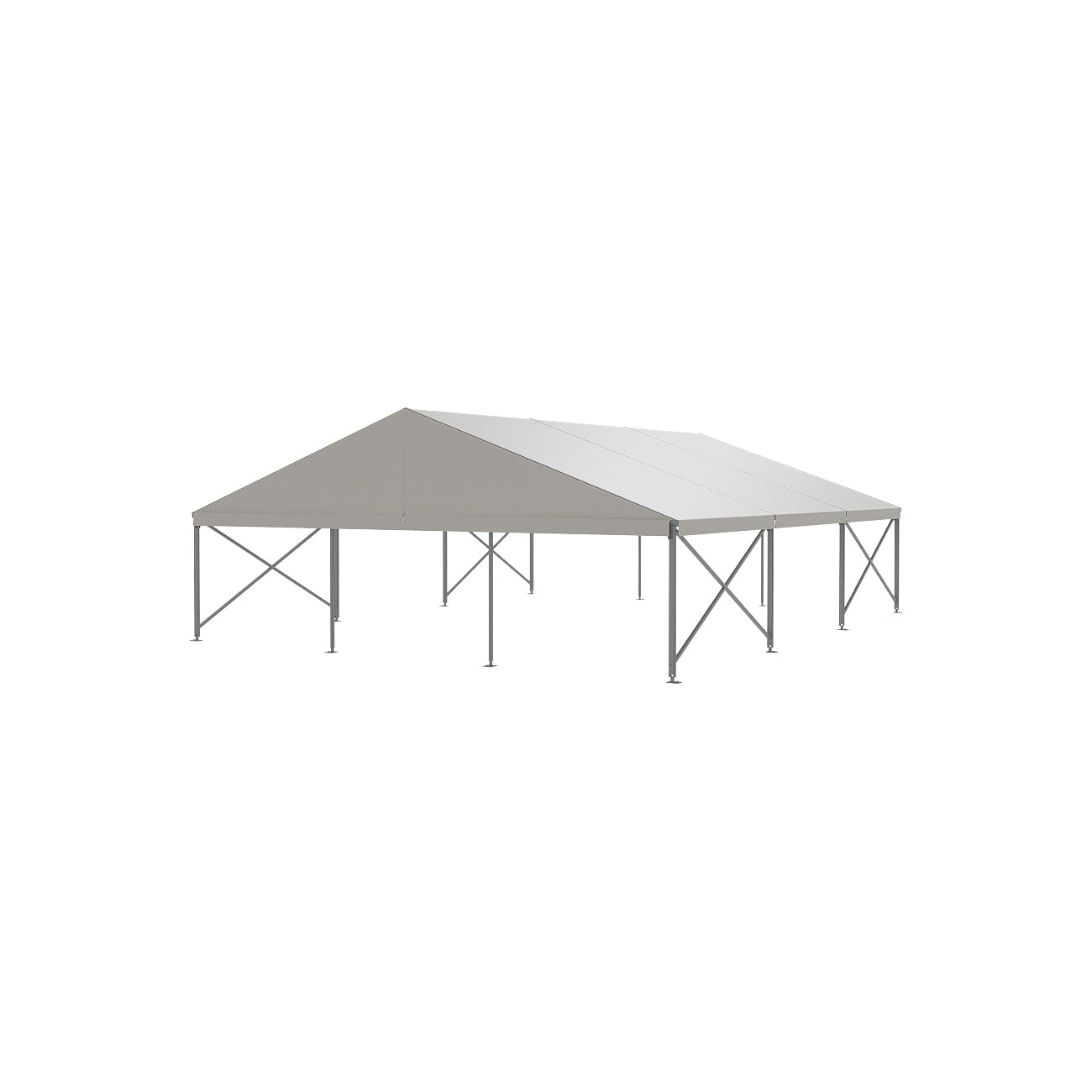

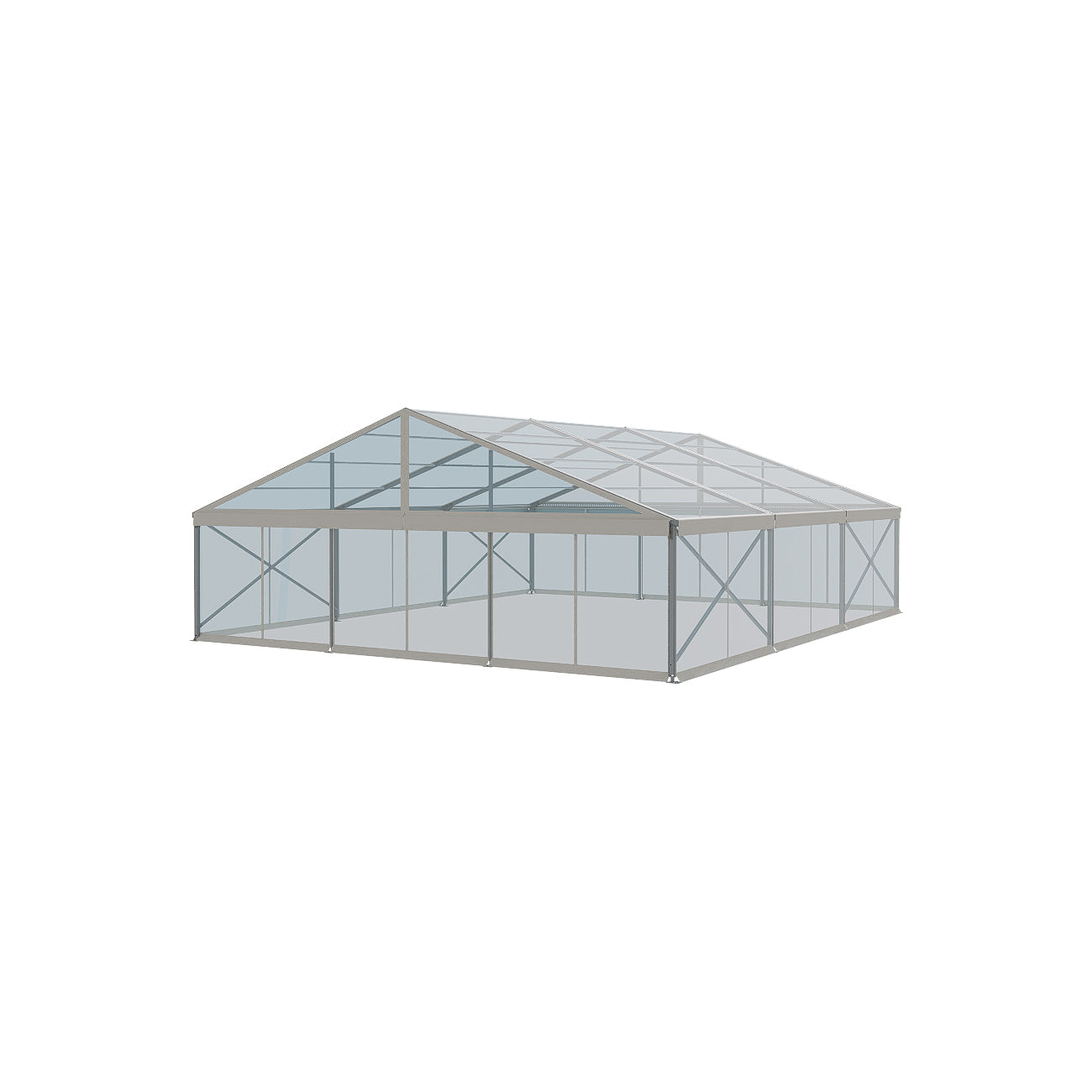

40' x 50'	180	250	120	240	200-240

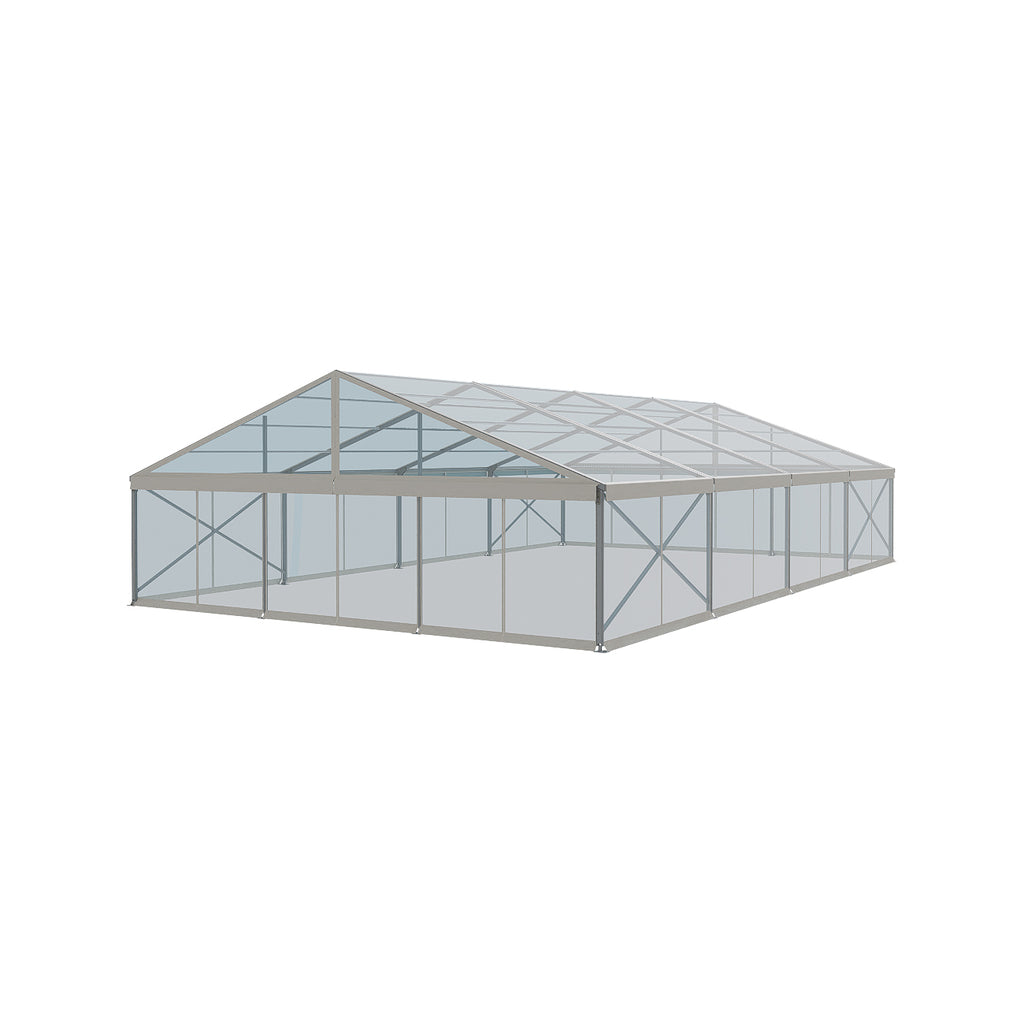

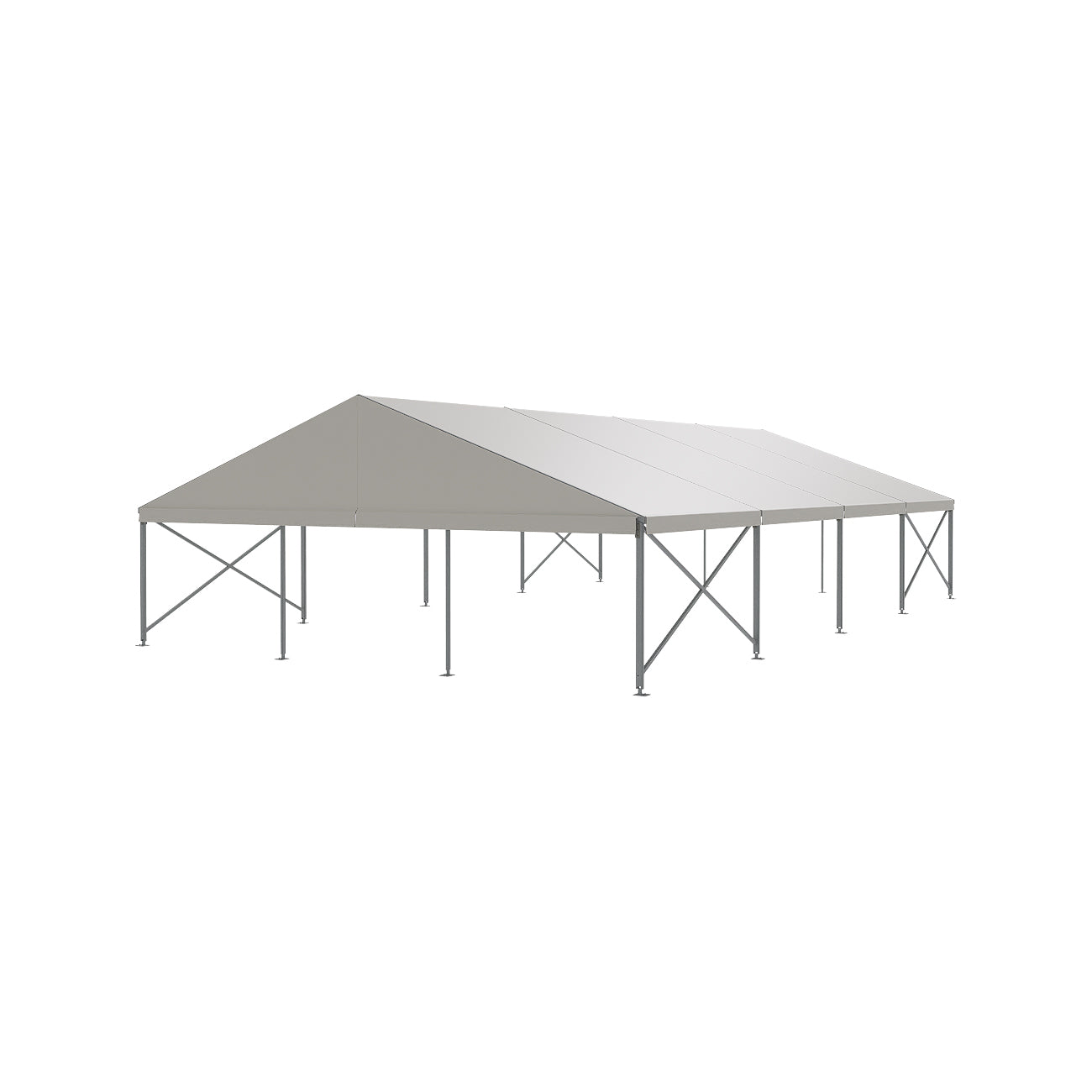

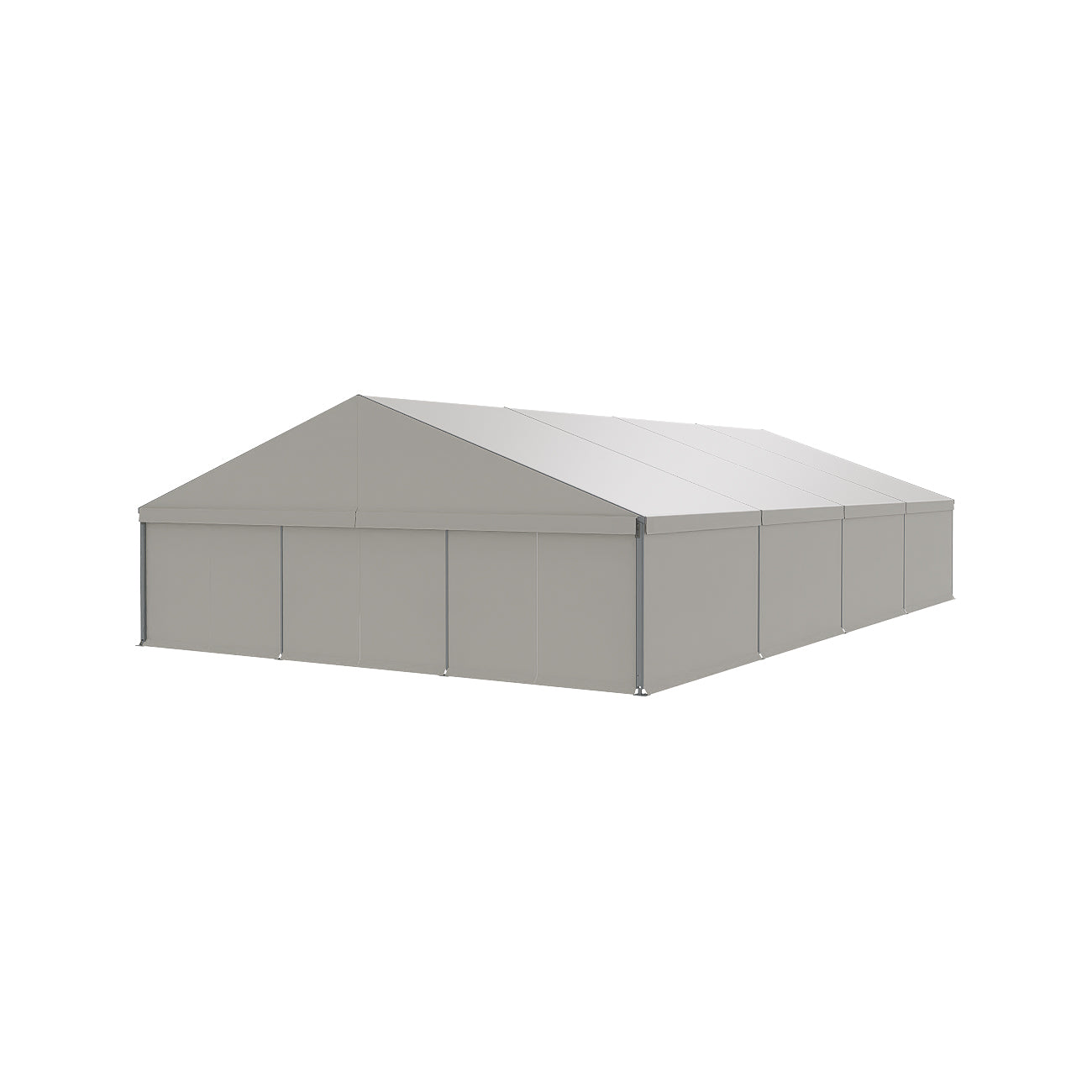

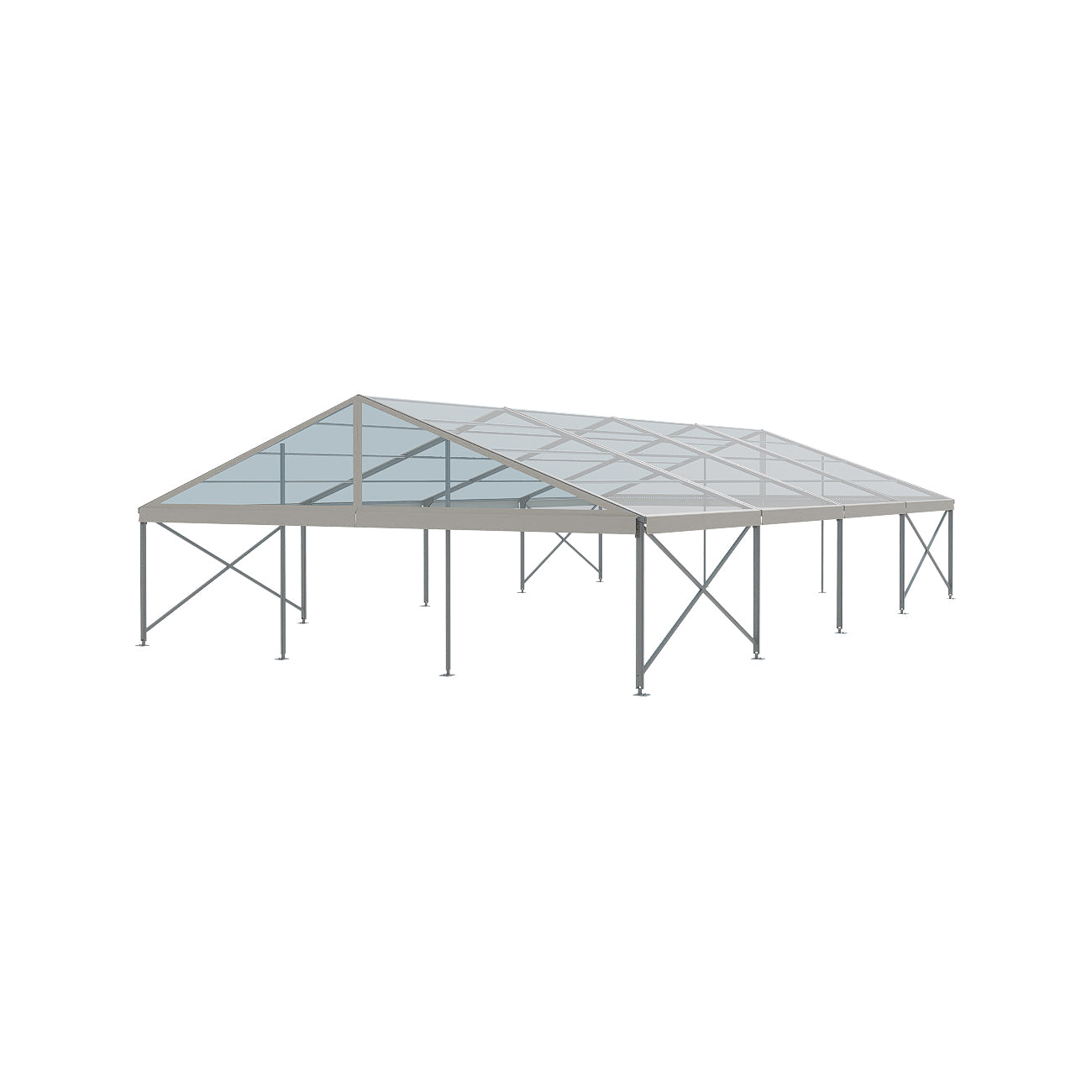

40' x 66'	245	365	160	325	260-320

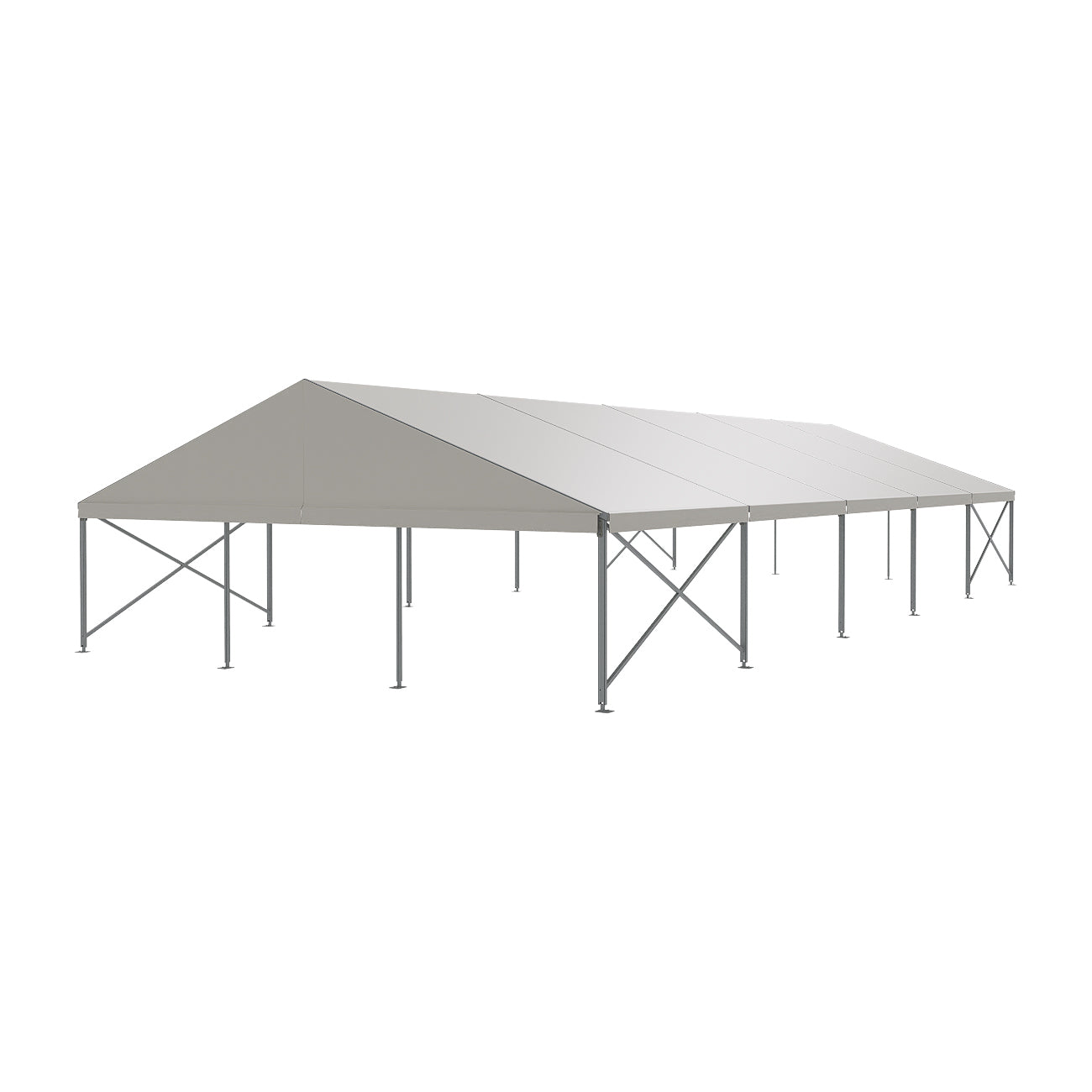

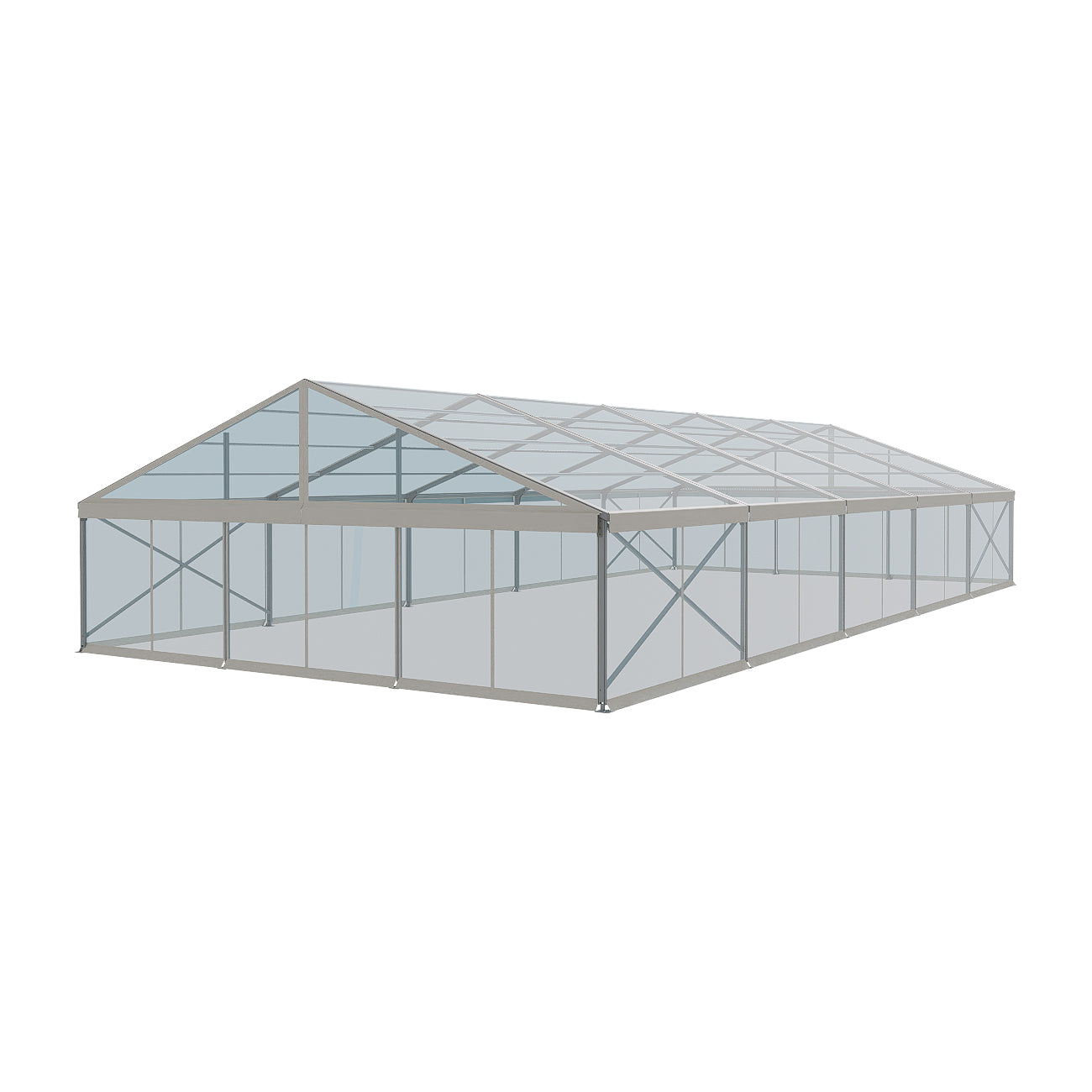

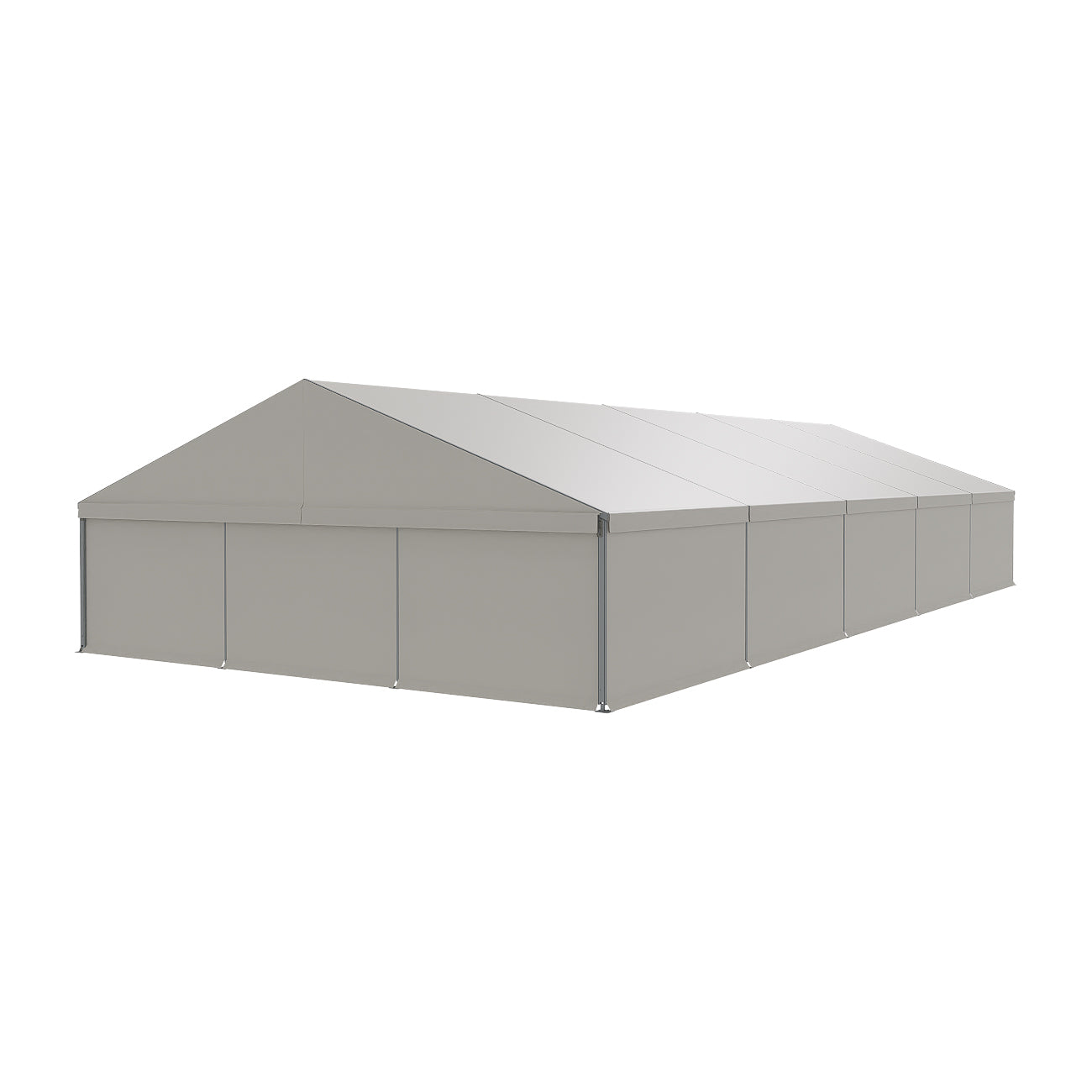

40' x 82'	307	455	200	405	320-400

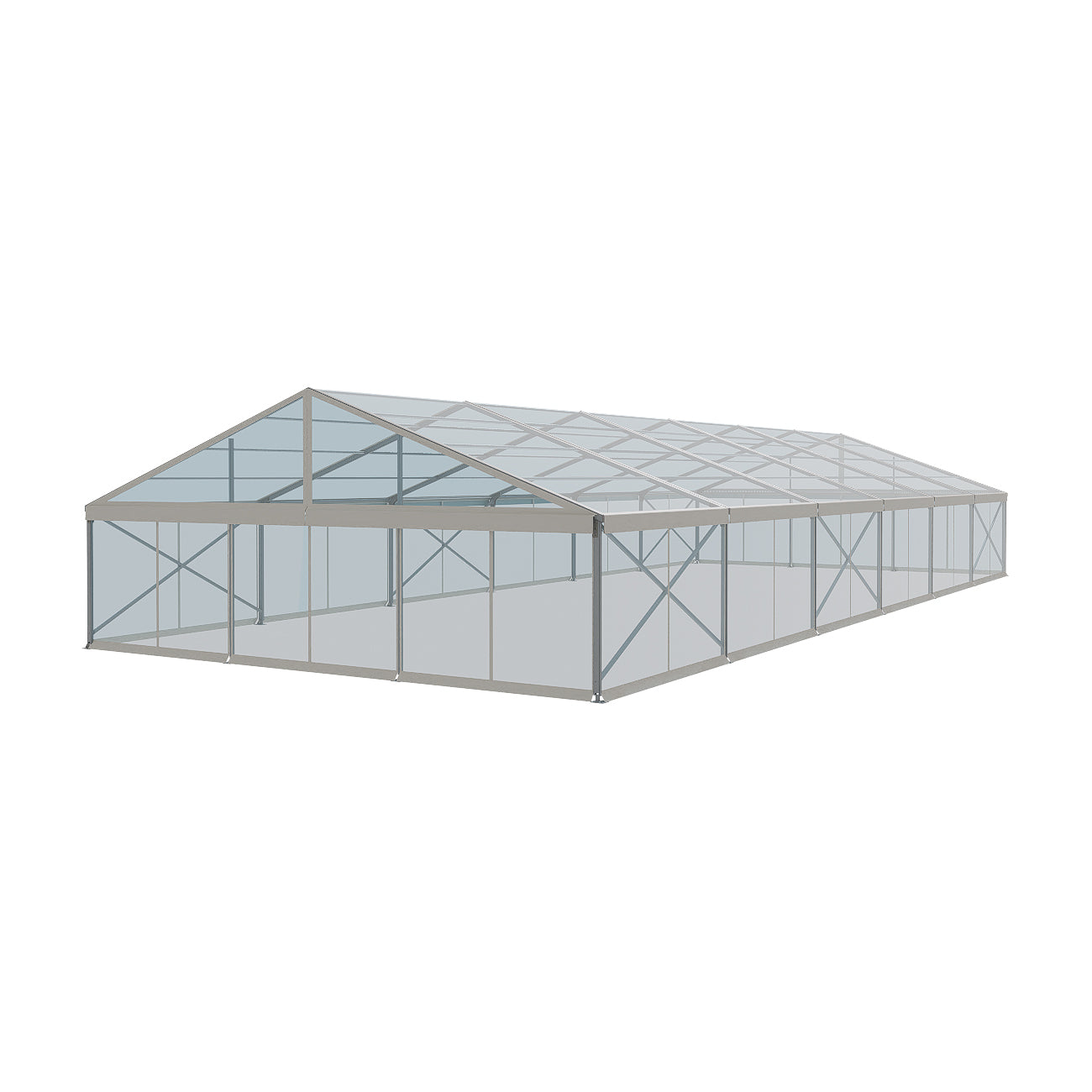

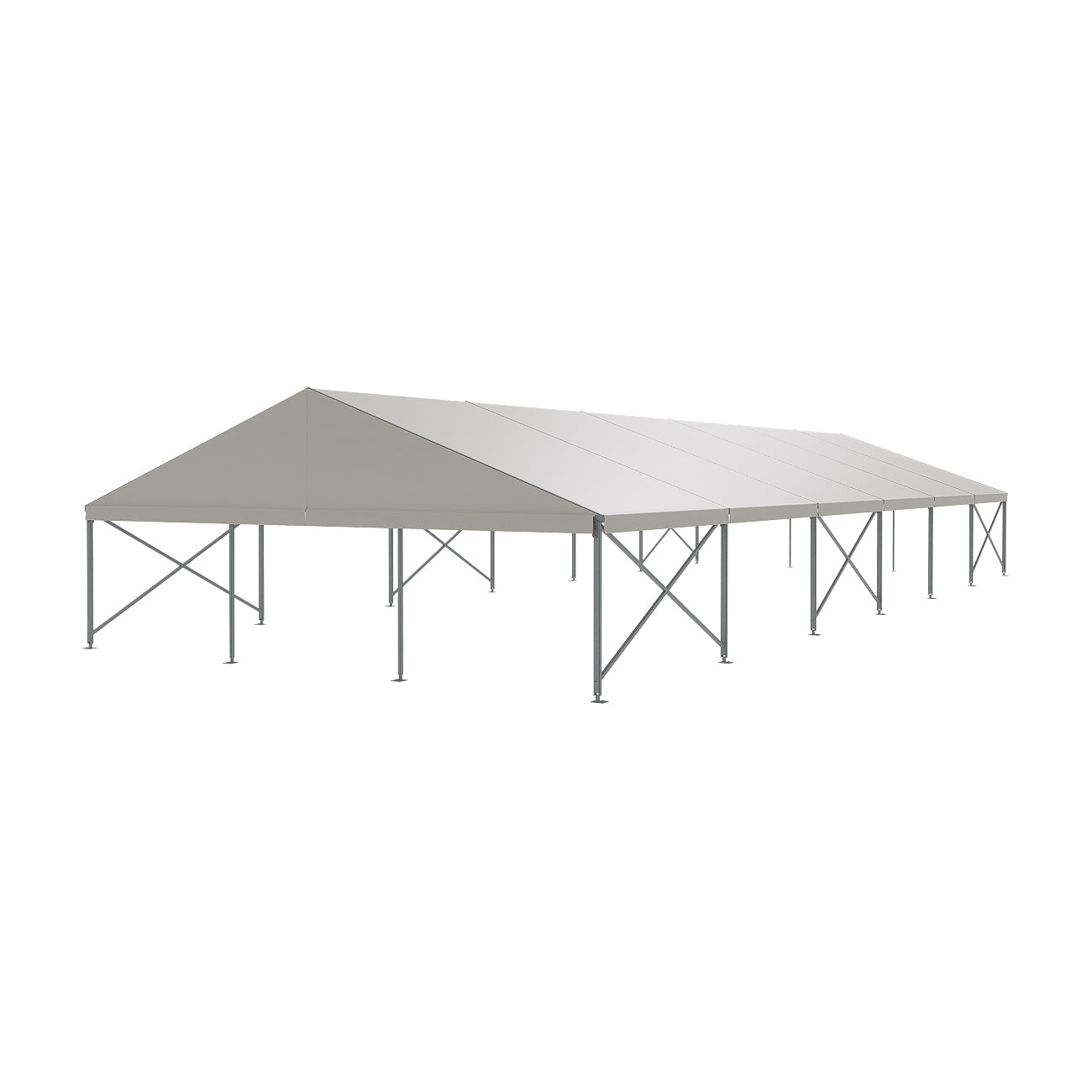

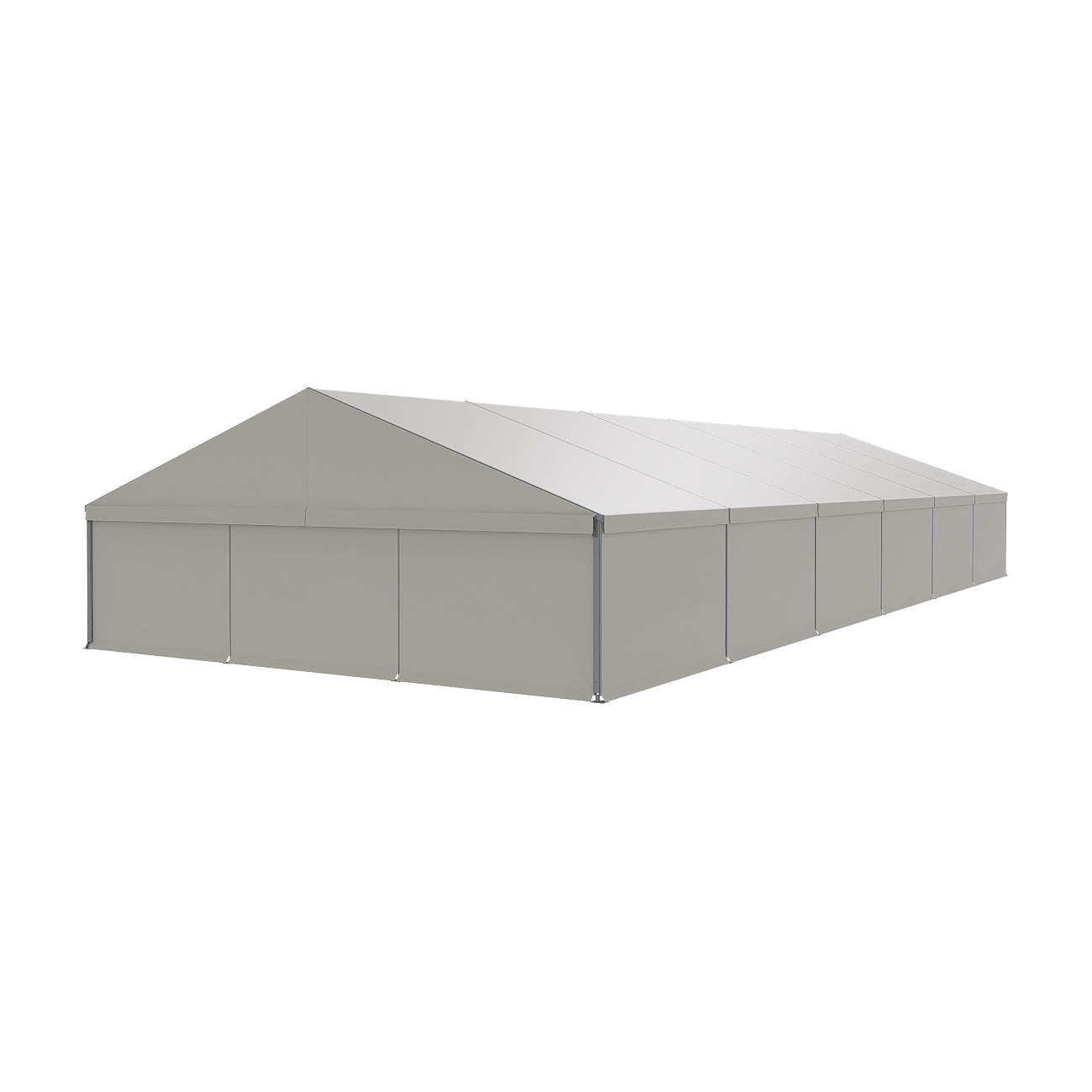

40' x 100'	372	550	250	500	400-500

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
