33' Width

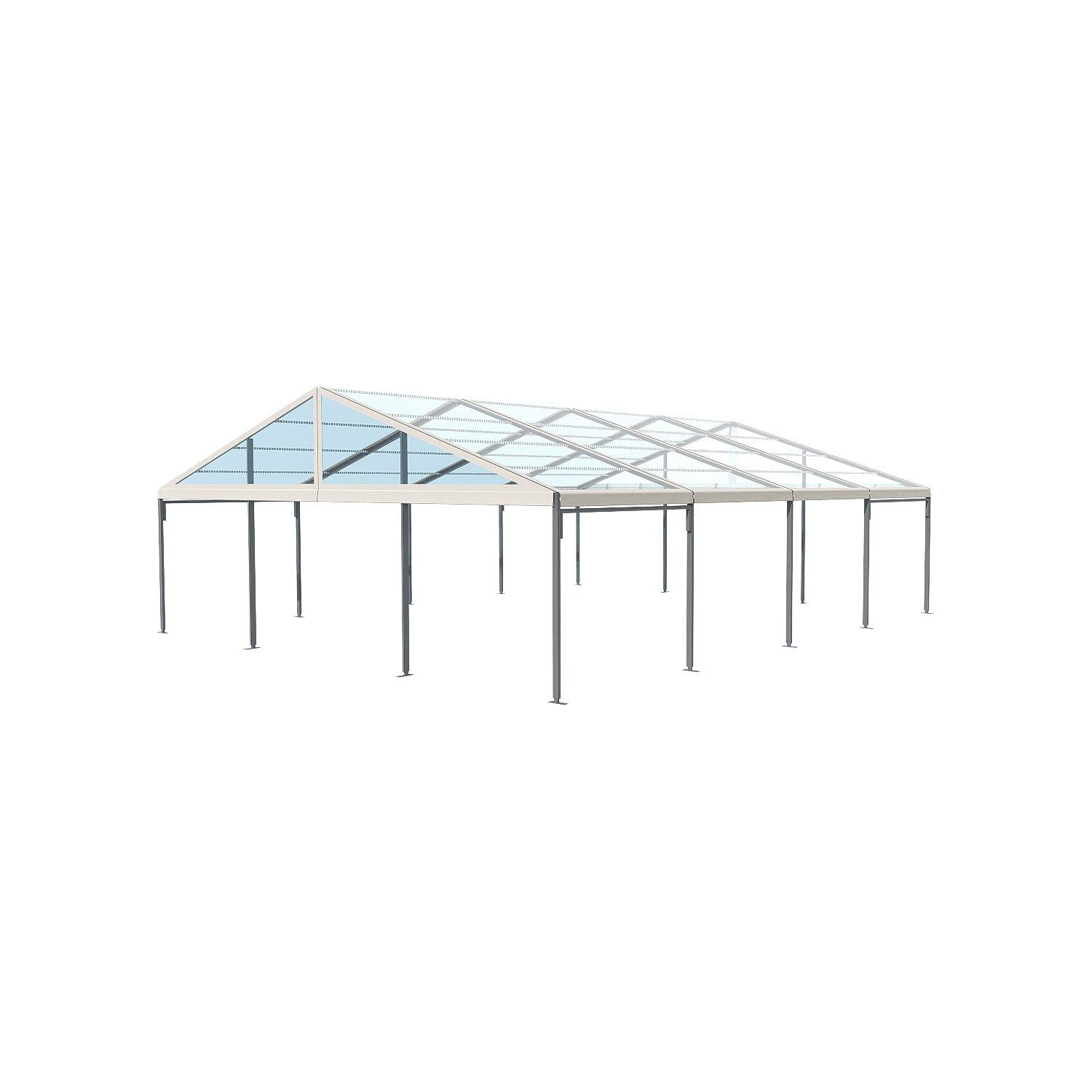

The Crest Tent 33' Wide Clear Span A-Frame is a spacious and durable event structure designed for large gatherings. Featuring a reinforced aluminum frame and a clear-span design, it provides unobstructed space with superior weather resistance. Ideal for corporate events, weddings, and trade shows. Enjoy free shipping and extended warranties. Elevate your venue today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	33' (10m)
Eave Height	8.5′ (2.6m)
Frame Profile	100 x 48 x 3mm (4-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert

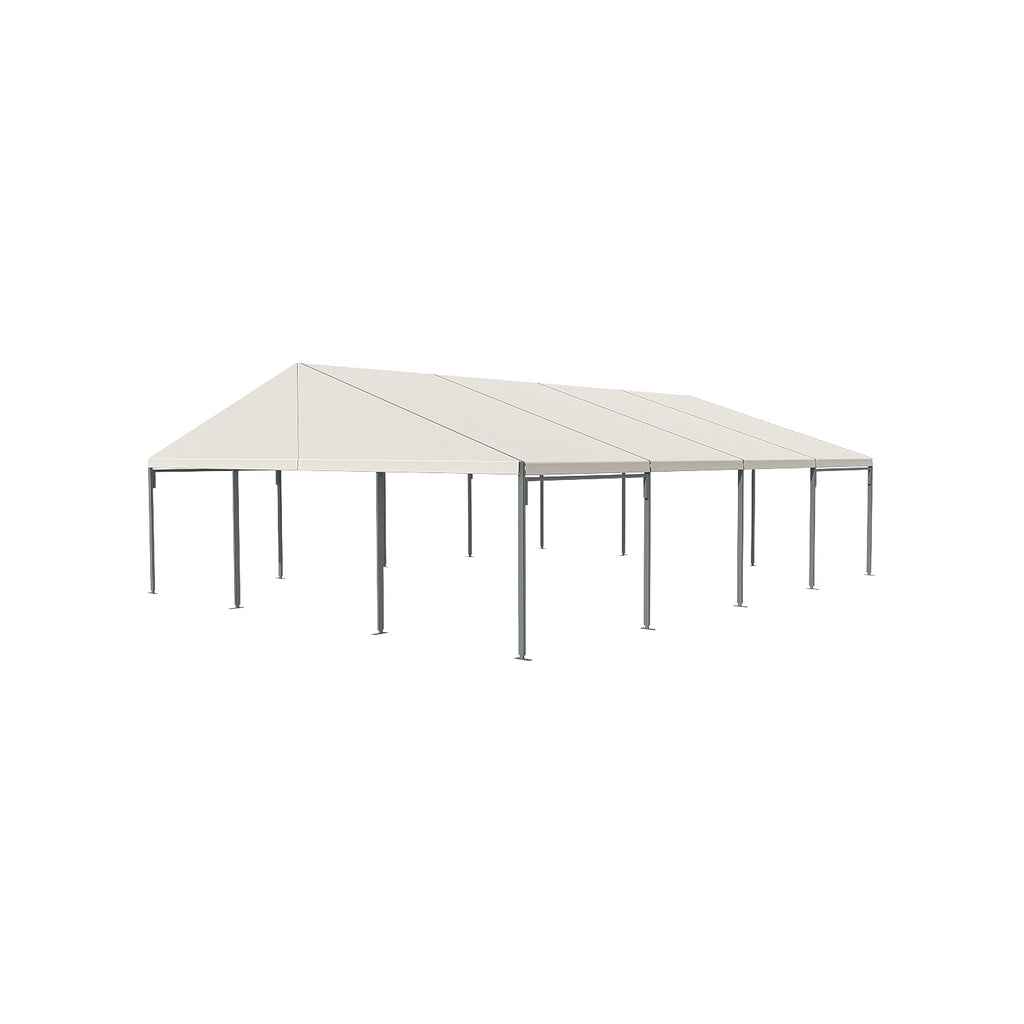

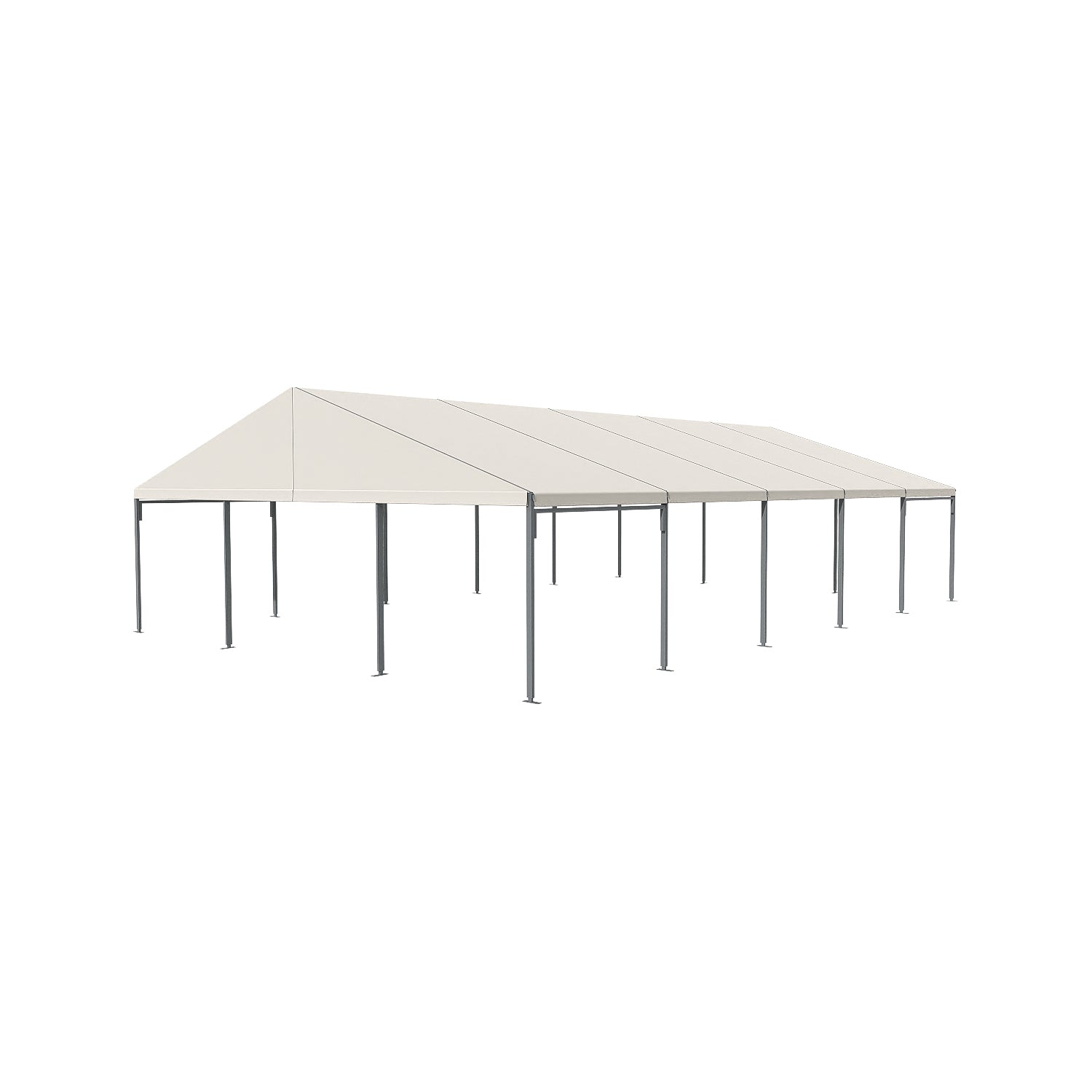

Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

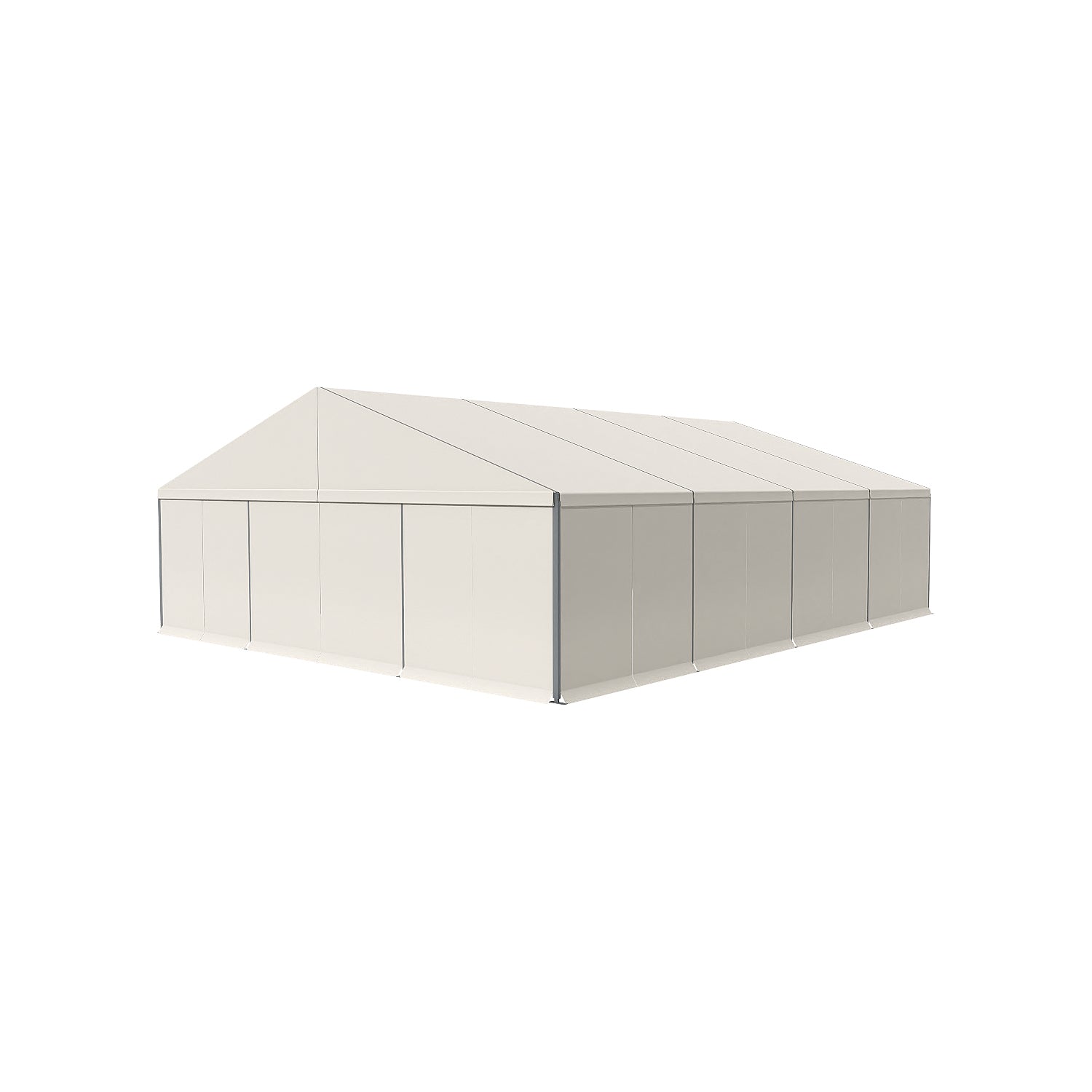

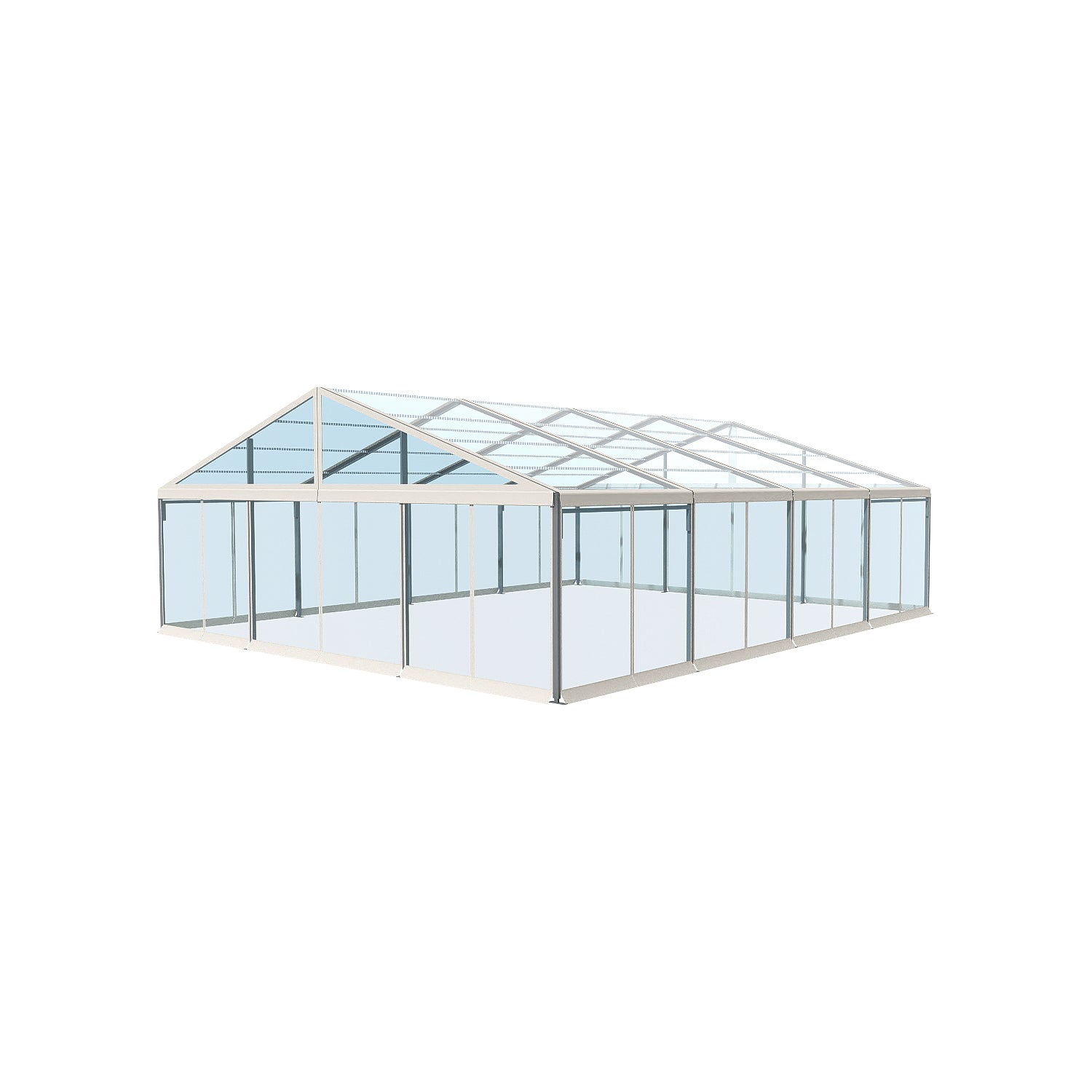

33' x 40'	123	220	130	190	130-150

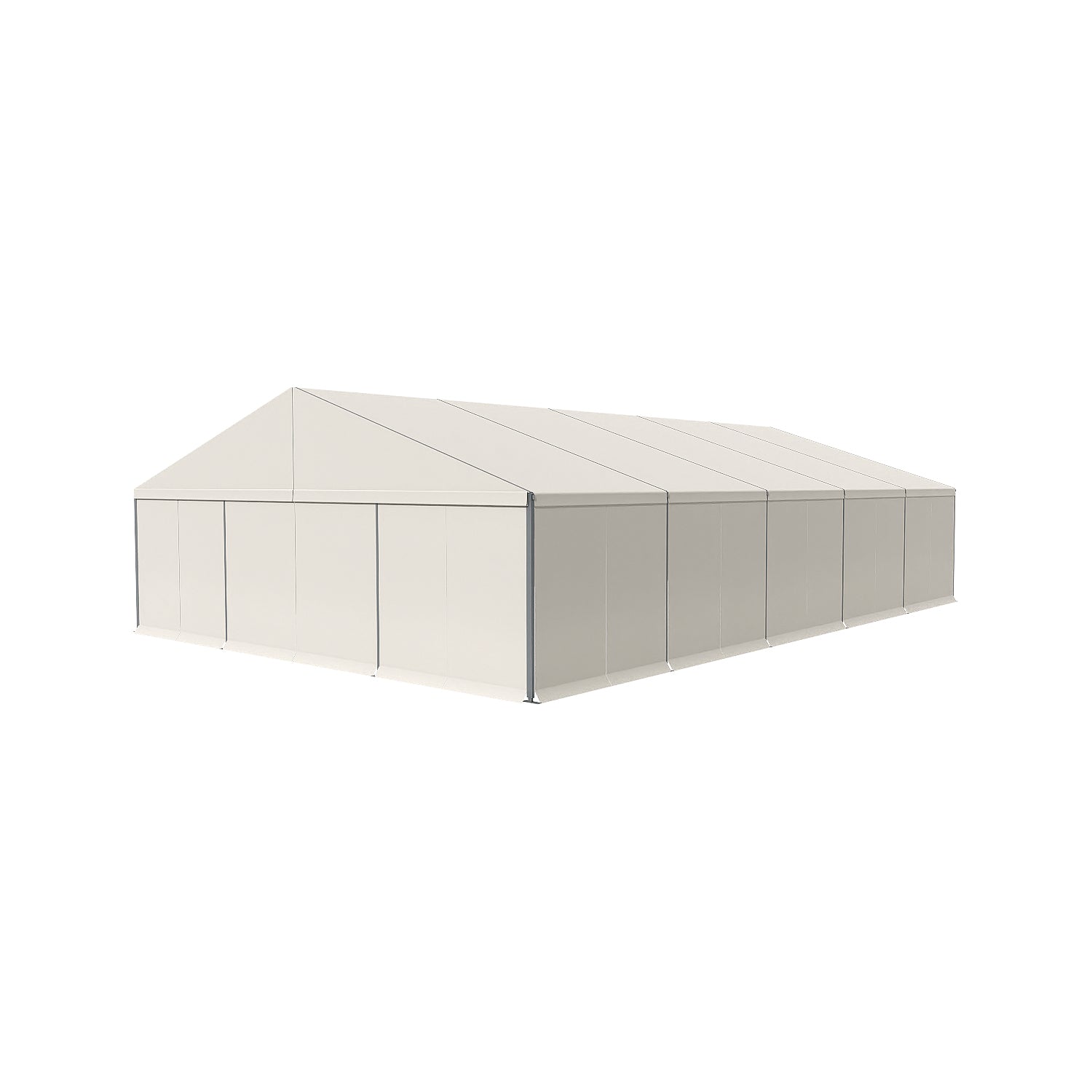

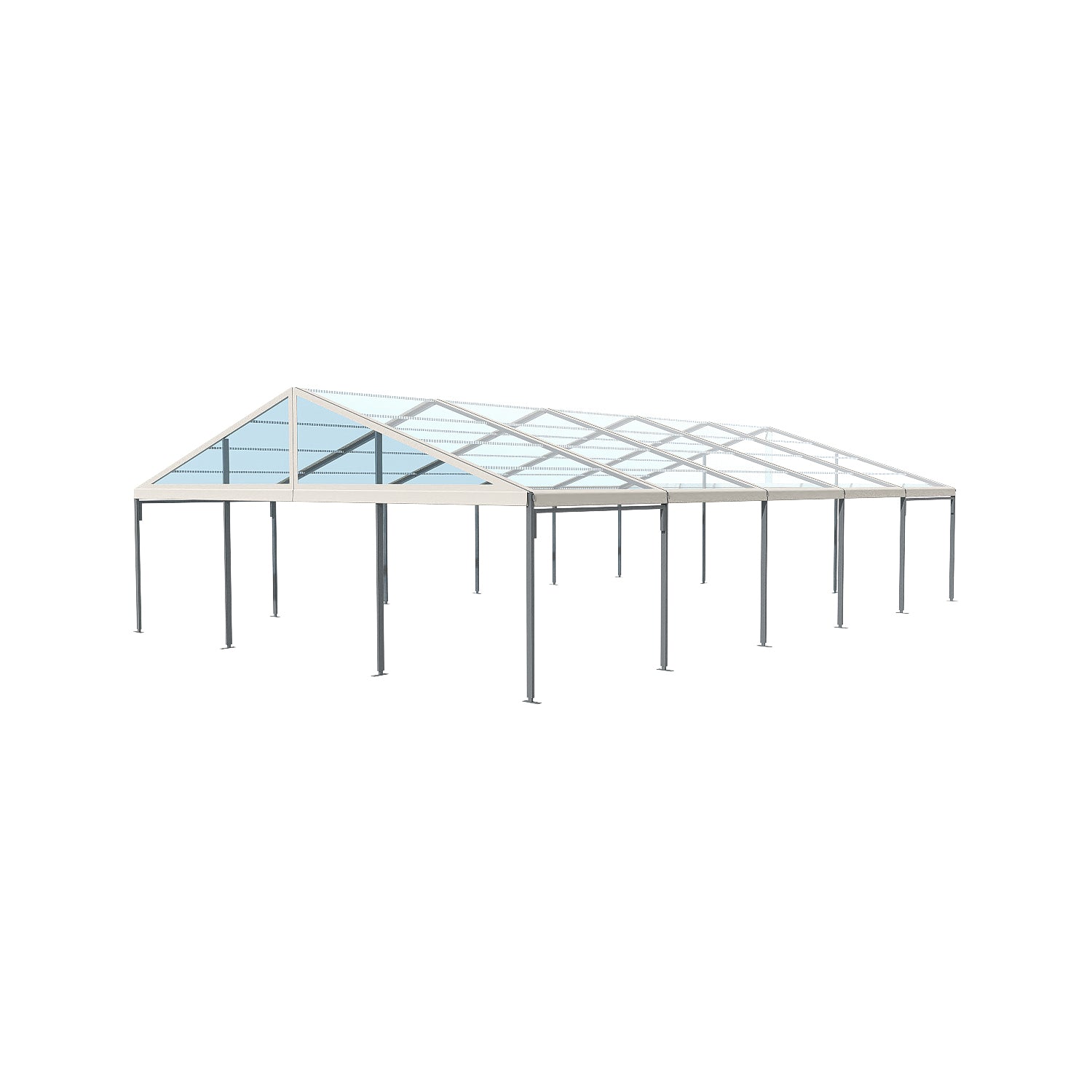

33' x 50'	153	275	165	240	165-195

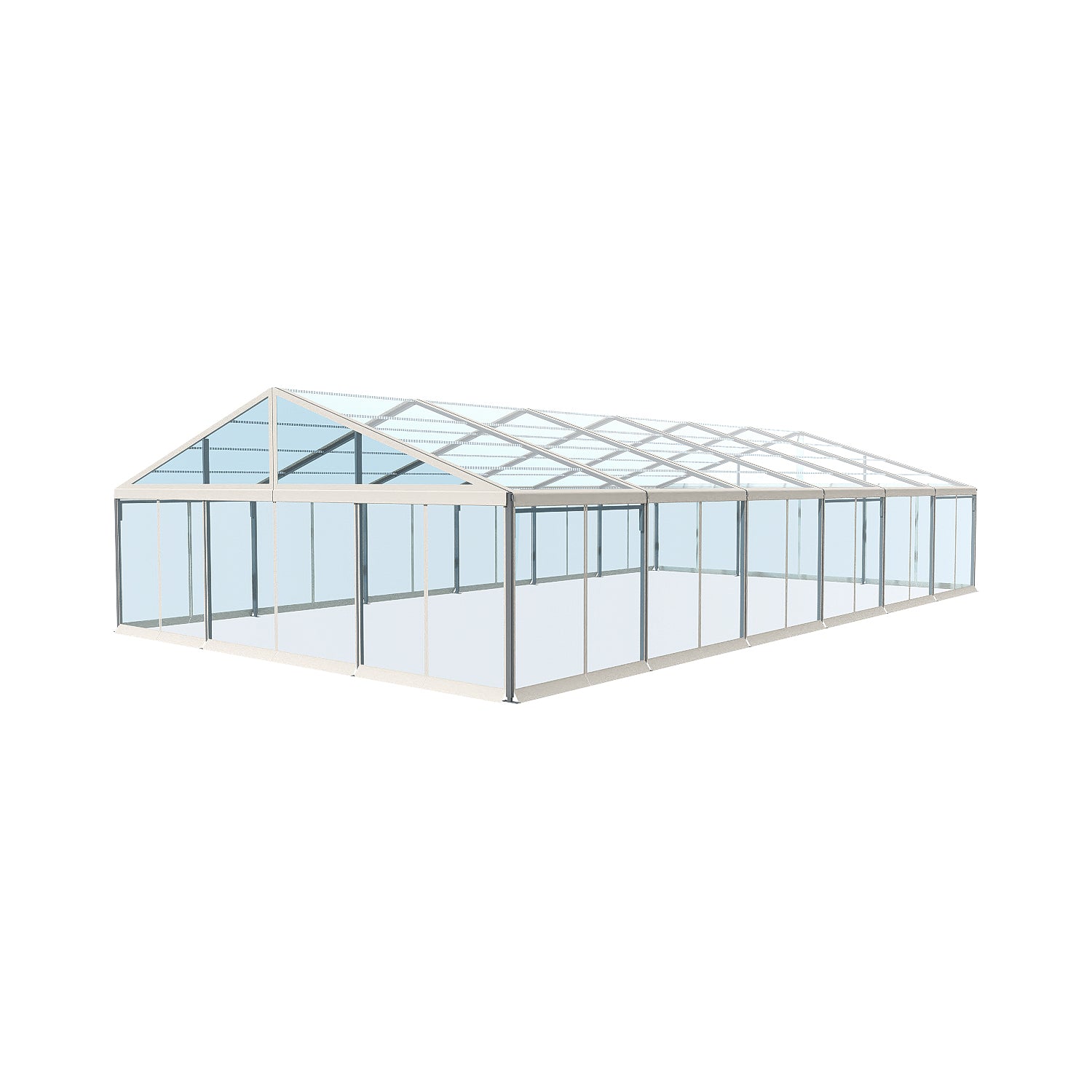

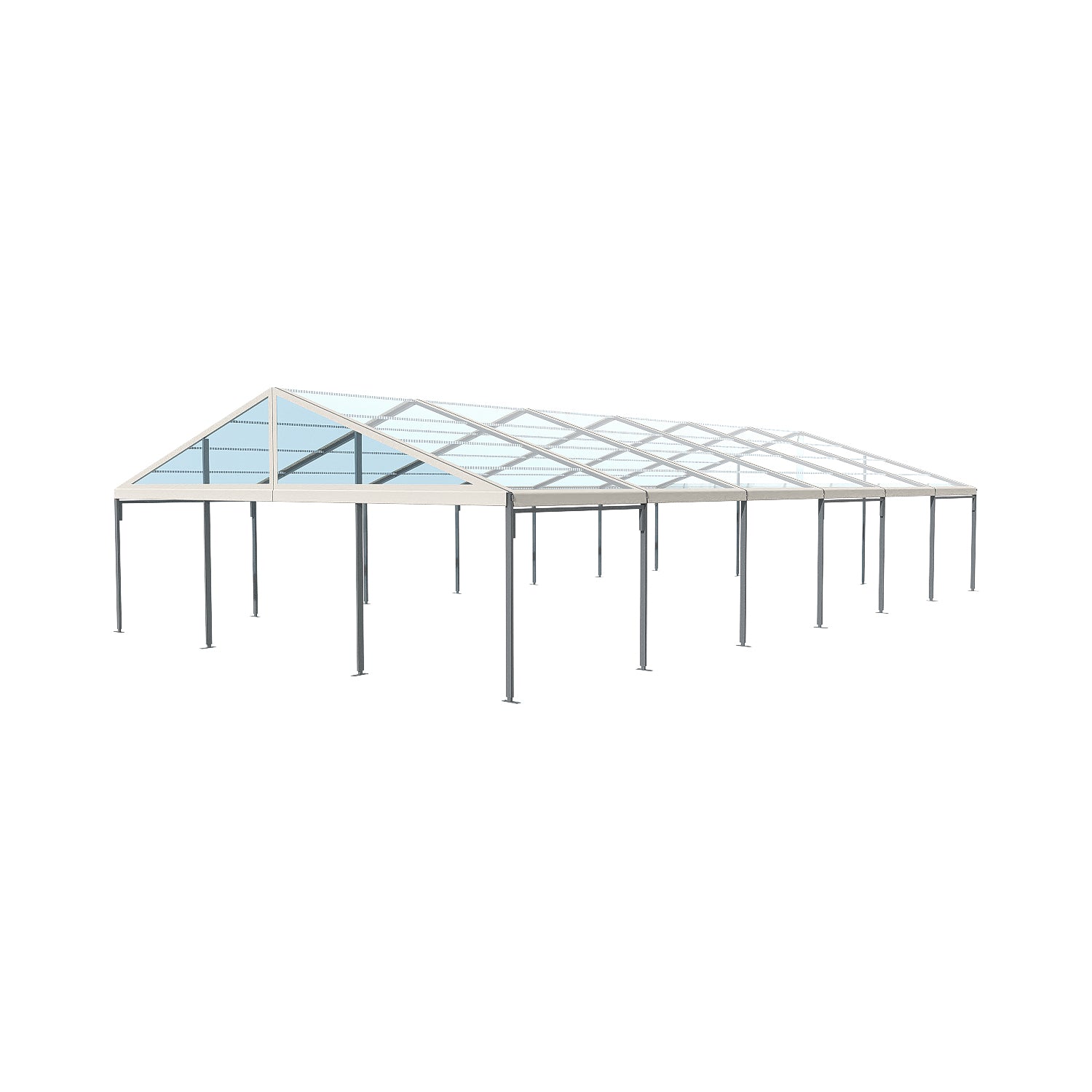

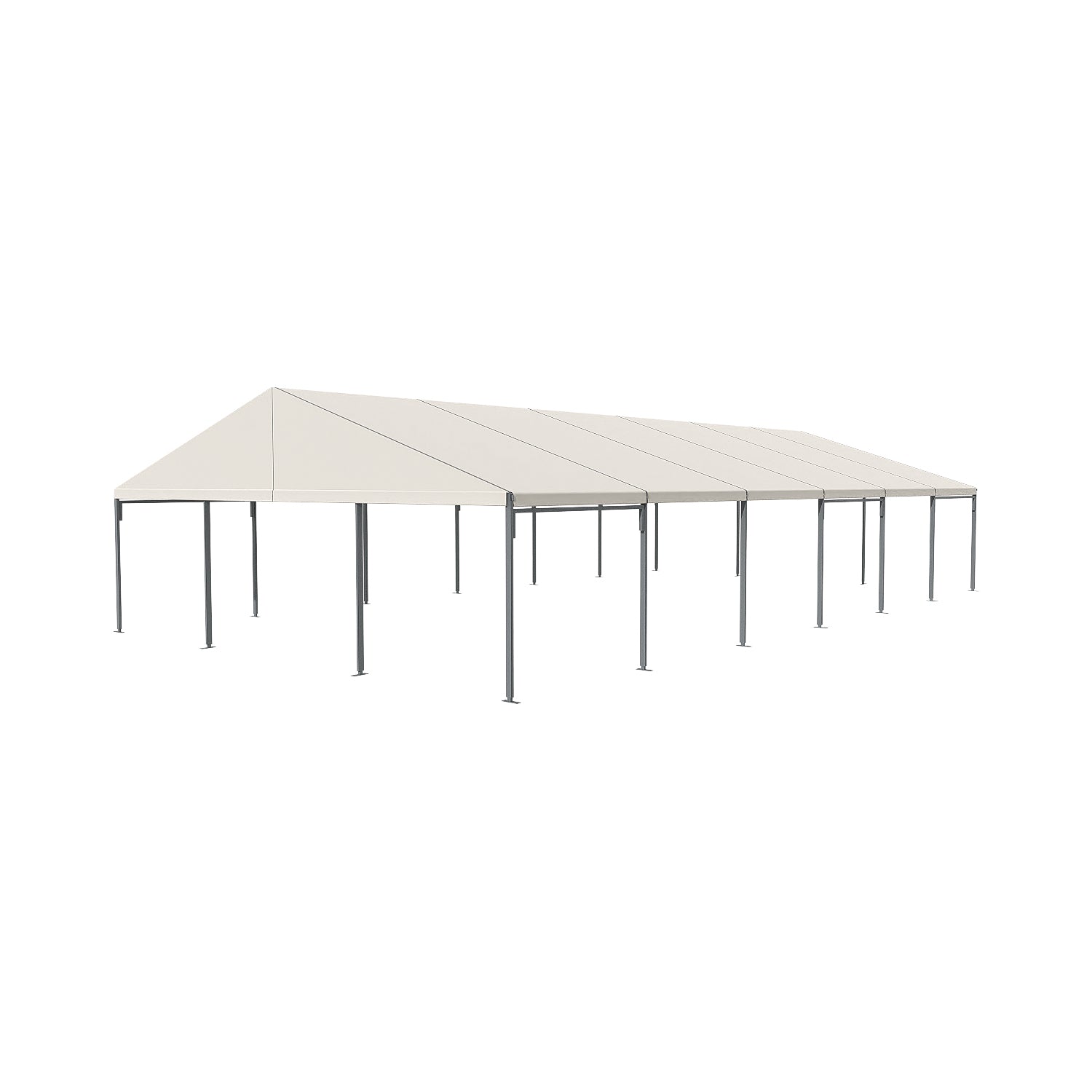

33' x 60'	184	330	195	290	195-230

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
