30' Width

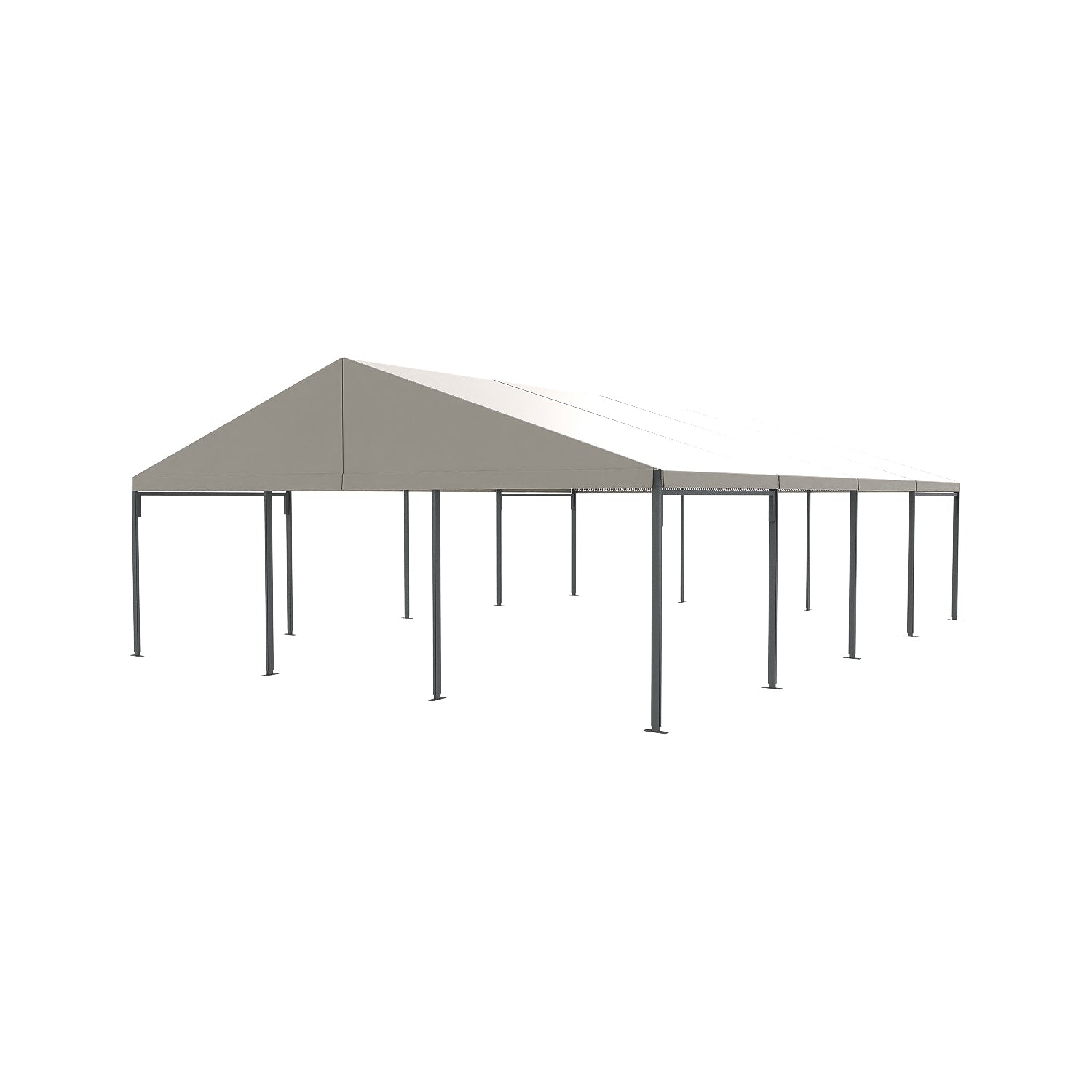

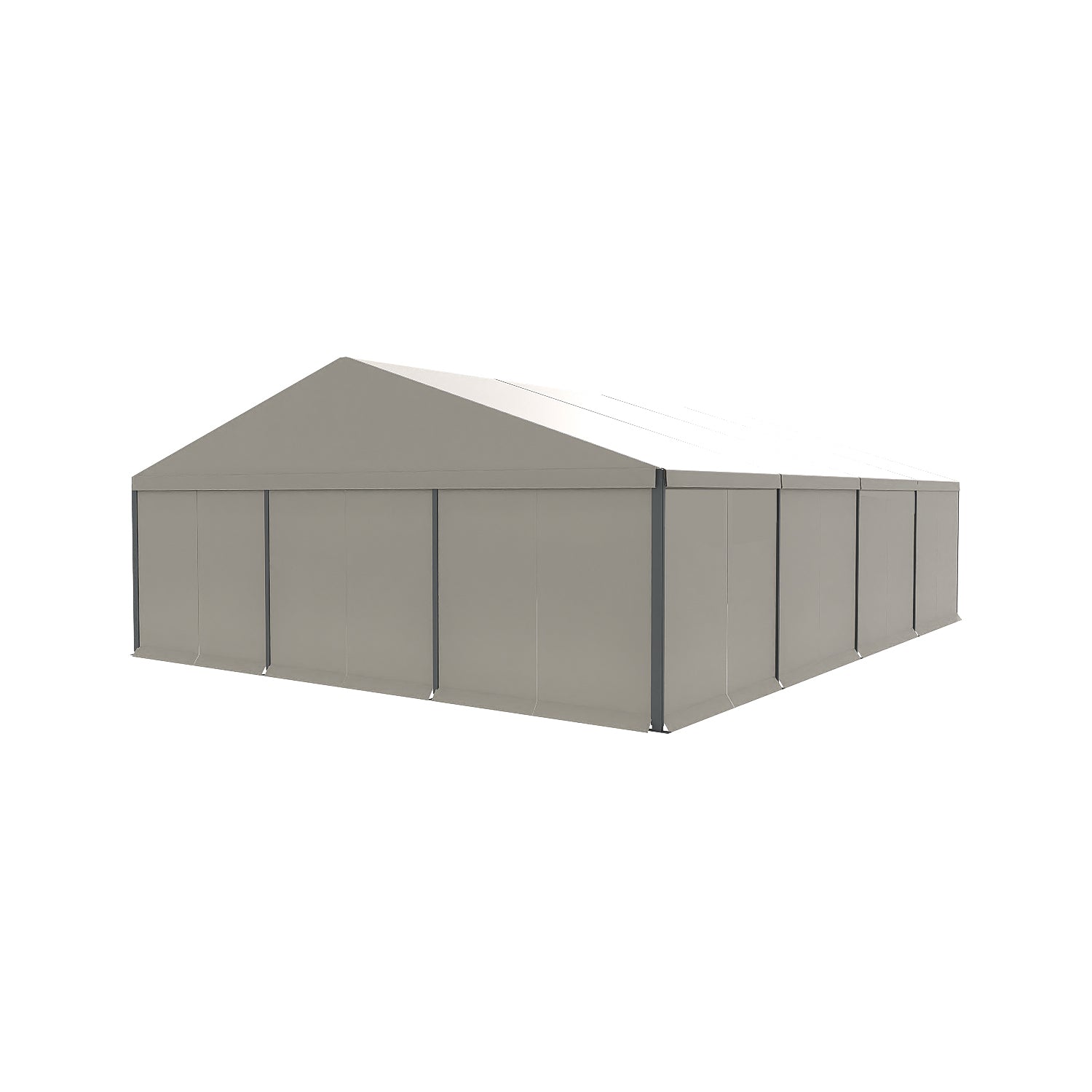

The Crest Tent 30' Wide Clear Span A-Frame is a robust and elegant event structure offering maximum space and versatility. Engineered with a high-strength aluminum frame and a clear-span design, it provides an open, unobstructed interior. Perfect for corporate functions, weddings, and large-scale events. Enjoy free shipping and extended warranties. Enhance your event space today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	30' (9m)
Eave Height	8.5′ (2.6m)
Frame Profile	100 x 48 x 3mm (4-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert
Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table
30' x 30'	81	150	90	130	90-110
30' x 40'	108	200	120	175	120-140
30' x 50'	135	250	150	220	150-180

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
