20' Width

The Crest Tent 20' Wide Clear Span A-Frame is a premium event structure offering expansive coverage and durability. Built with a sturdy aluminum frame and a clear-span design, it provides unobstructed space for various applications. Ideal for weddings, corporate events, and large-scale activations. Enjoy free shipping and extended warranties. Elevate your event setup today!

Specification Sheet >    Instruction PDF >   Product Comparison >   PVC Fire Retardant Certification >

Clear Span Width	20'  (6m)
Eave Height	8.5′ (2.6m)
Frame Profile	84 x 84 x 3mm (2-channel)
Frame Material	Hard pressed extruded aluminum 6061/T6 (13HW)
Eave Connectors	Hot-dip galvanized steel insert

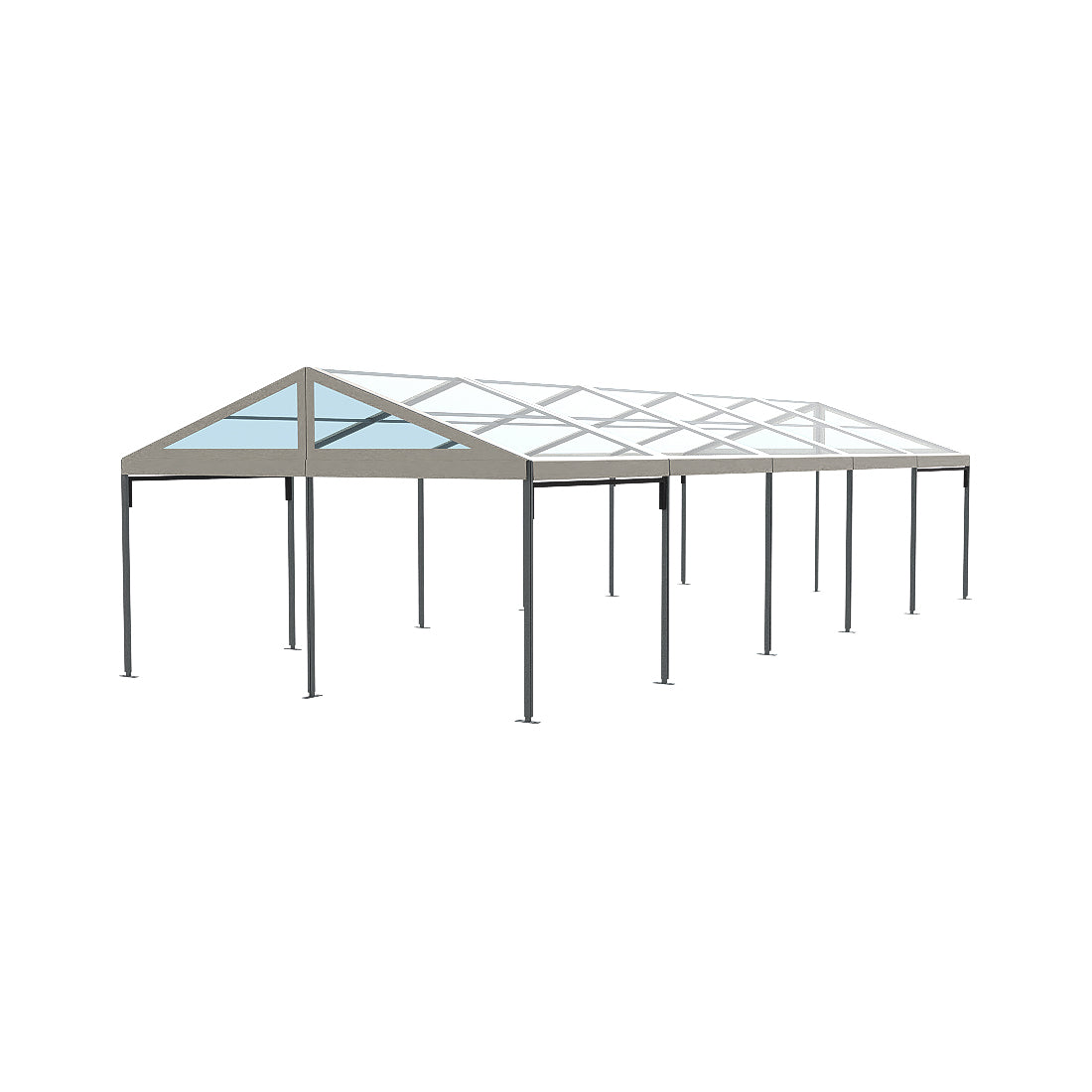

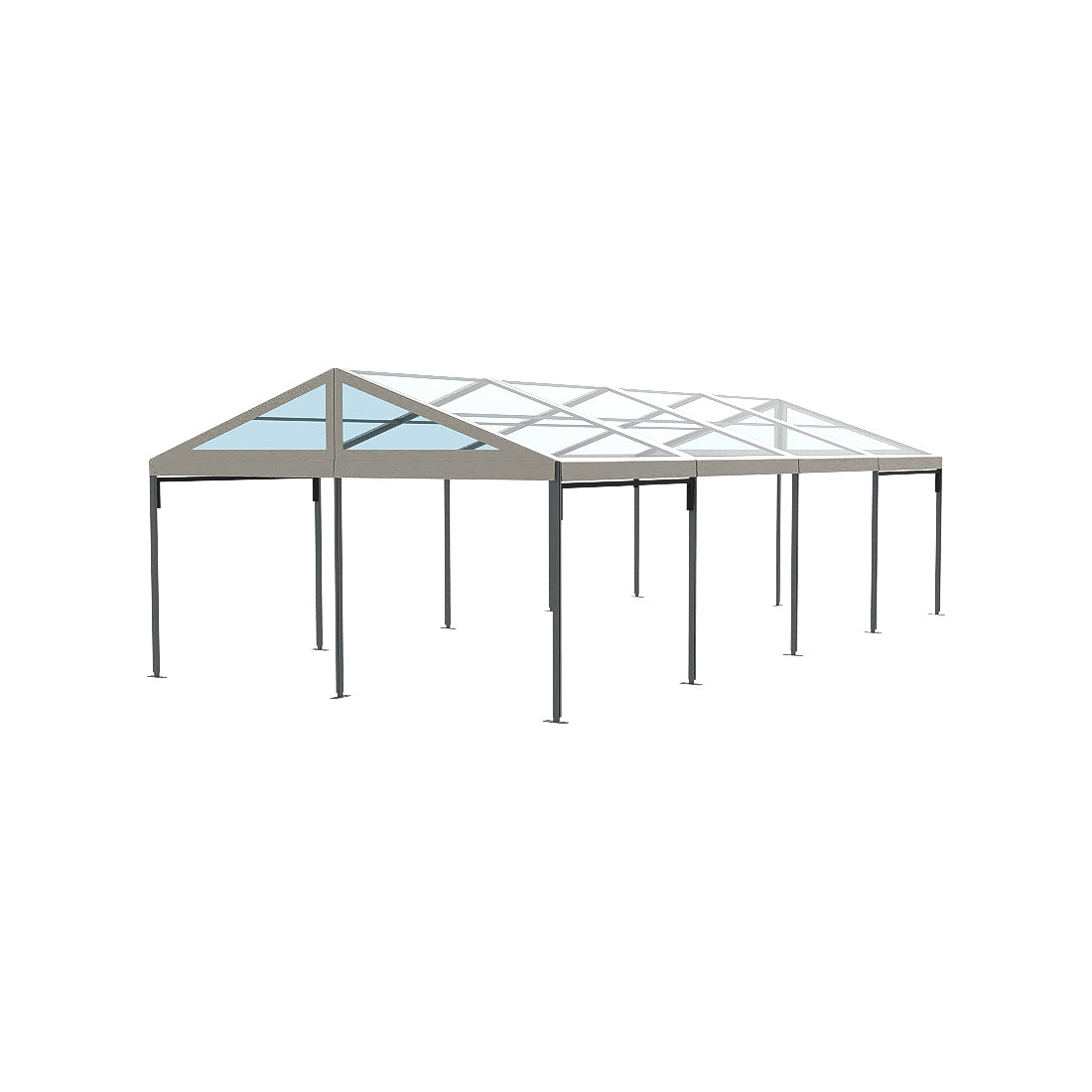

Roof Fabric	650GSM White PVC / 950GSM Clear PVC
Frame Warranty	Frame 10 Years
Roof Warranty	White PVC 5 Years / Clear PVC 2 Years





Capacity Chart

Size	Area (sqm)	Cocktail Standing	Theatre Seating	Seating Trestle Table	Seating Round Table

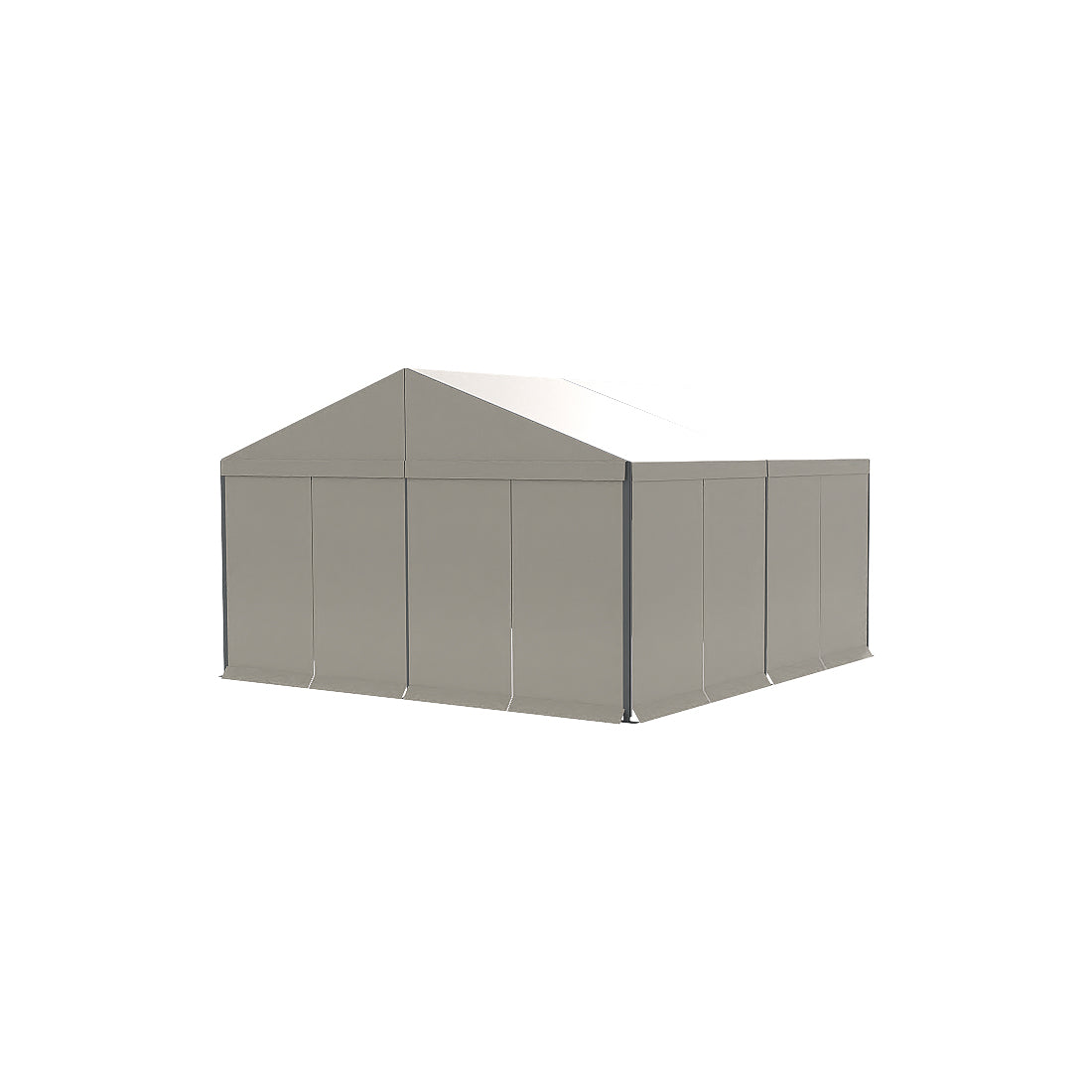

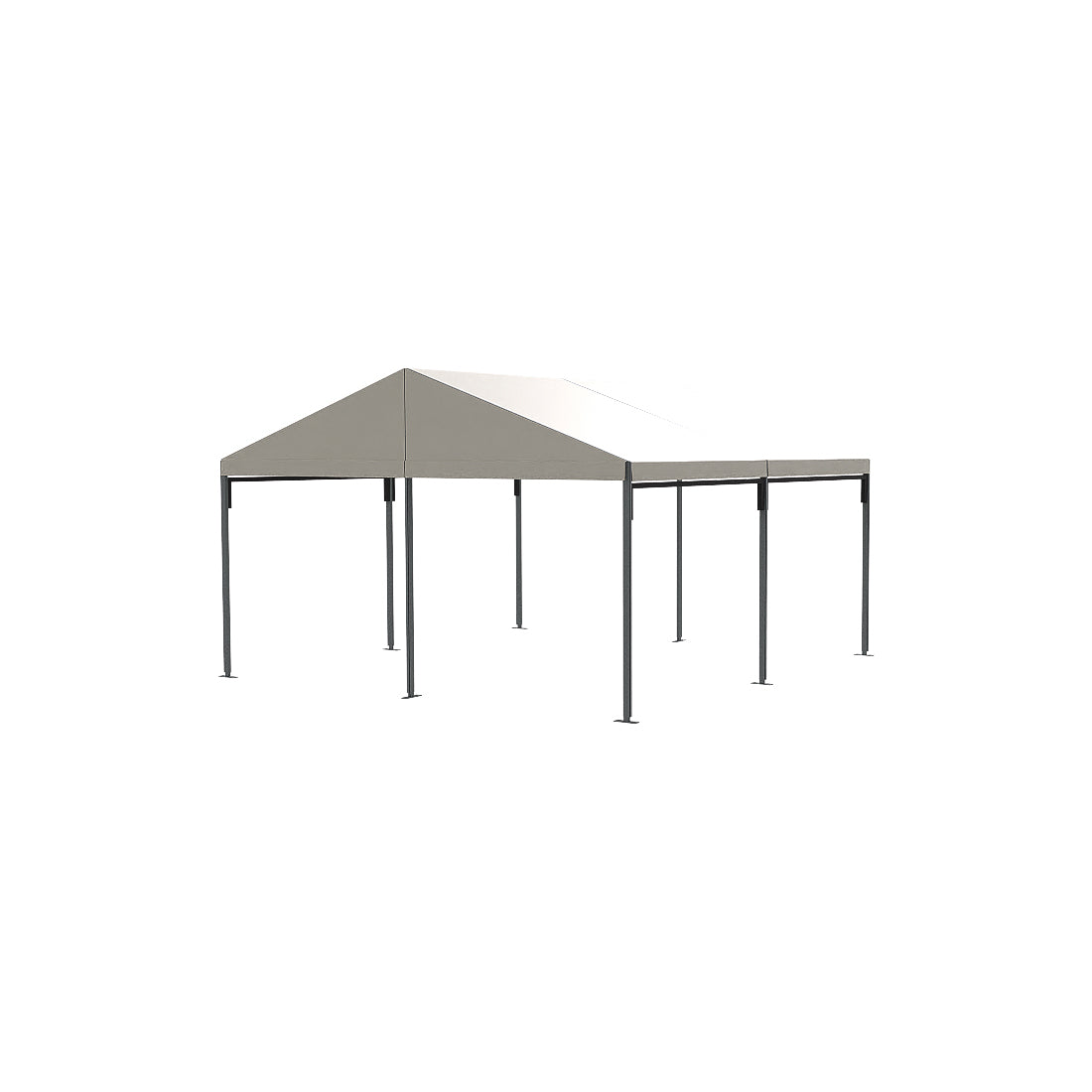

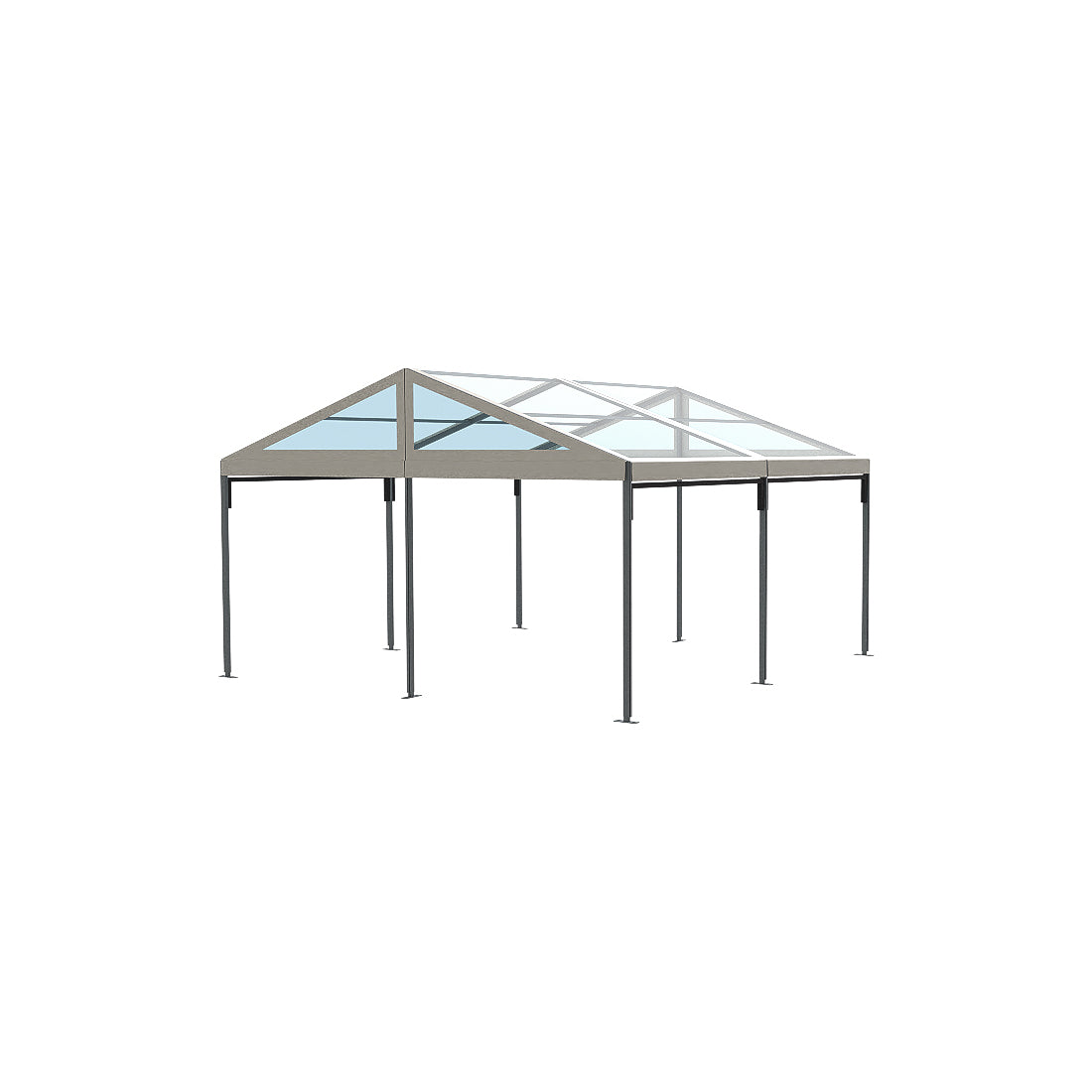

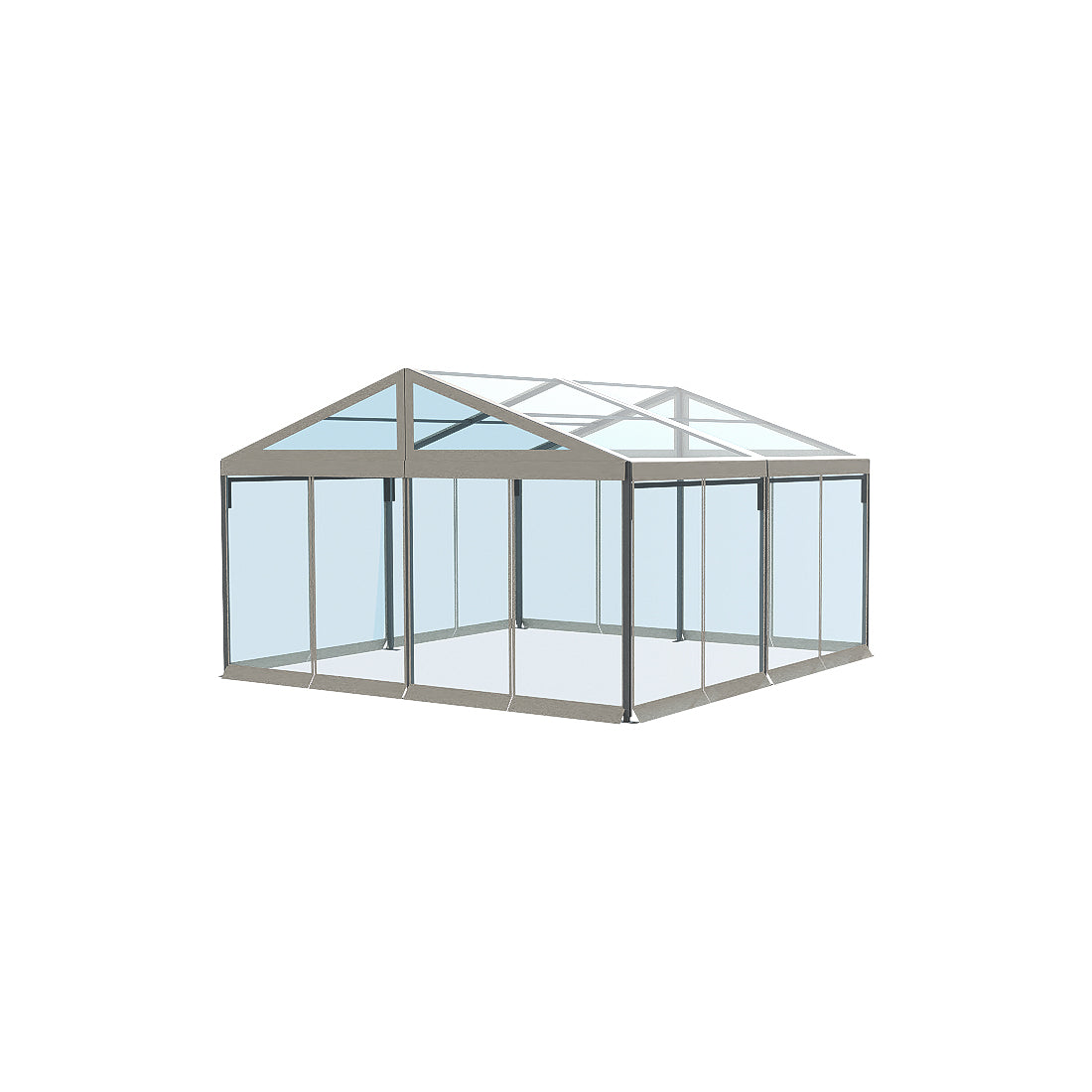

20' x 20'	36	50	24	48	40-48

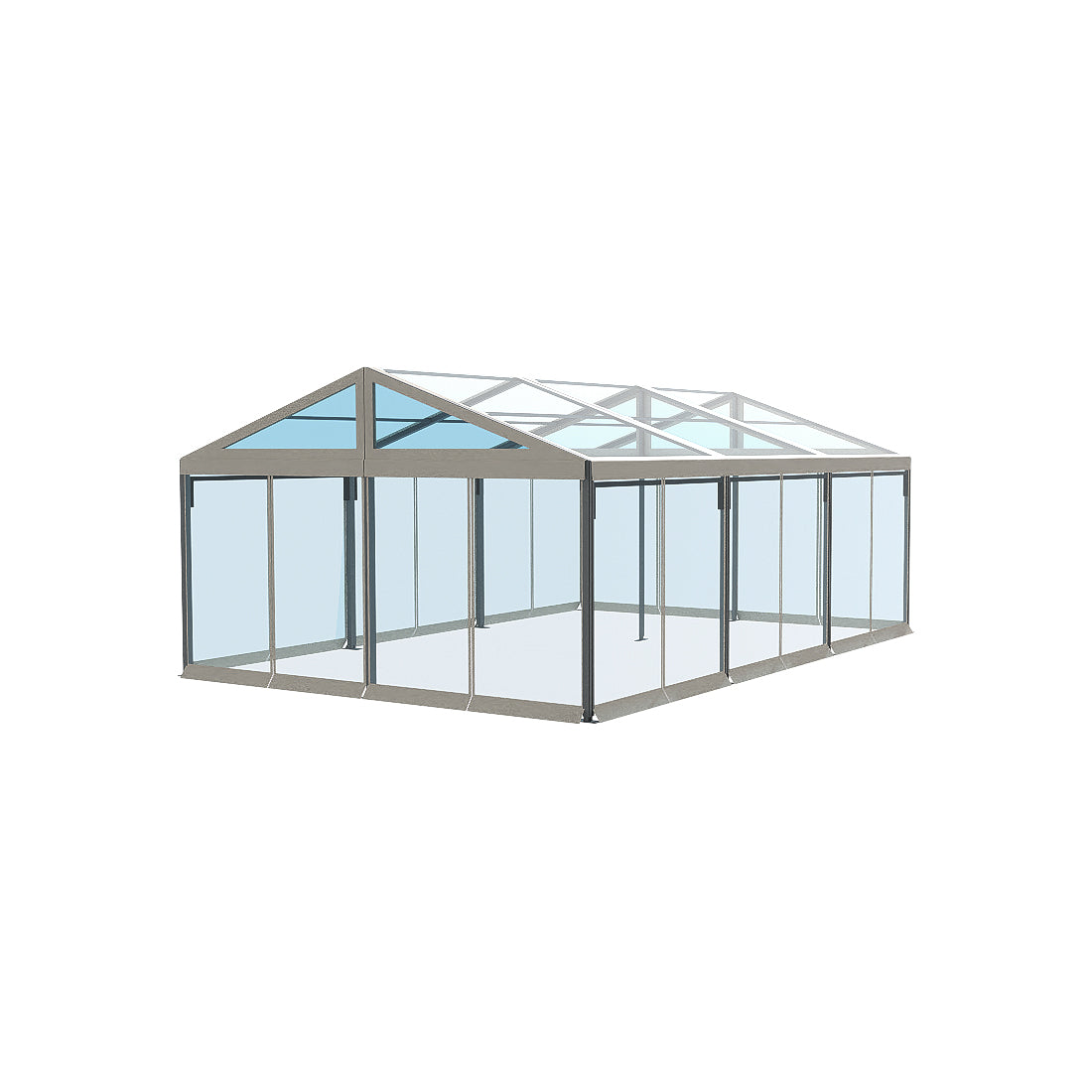

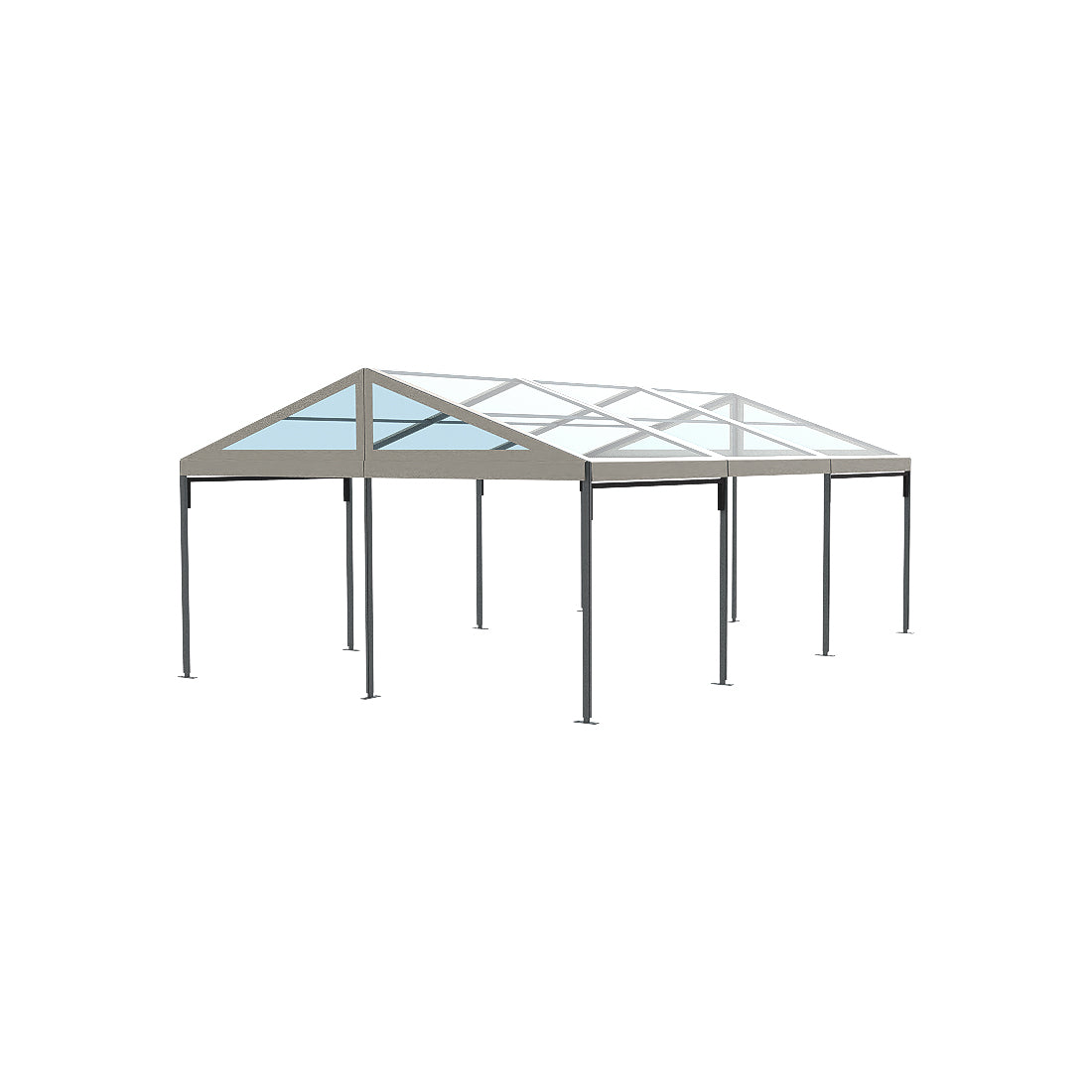

20' x 30'	54	75	48	72	60-72

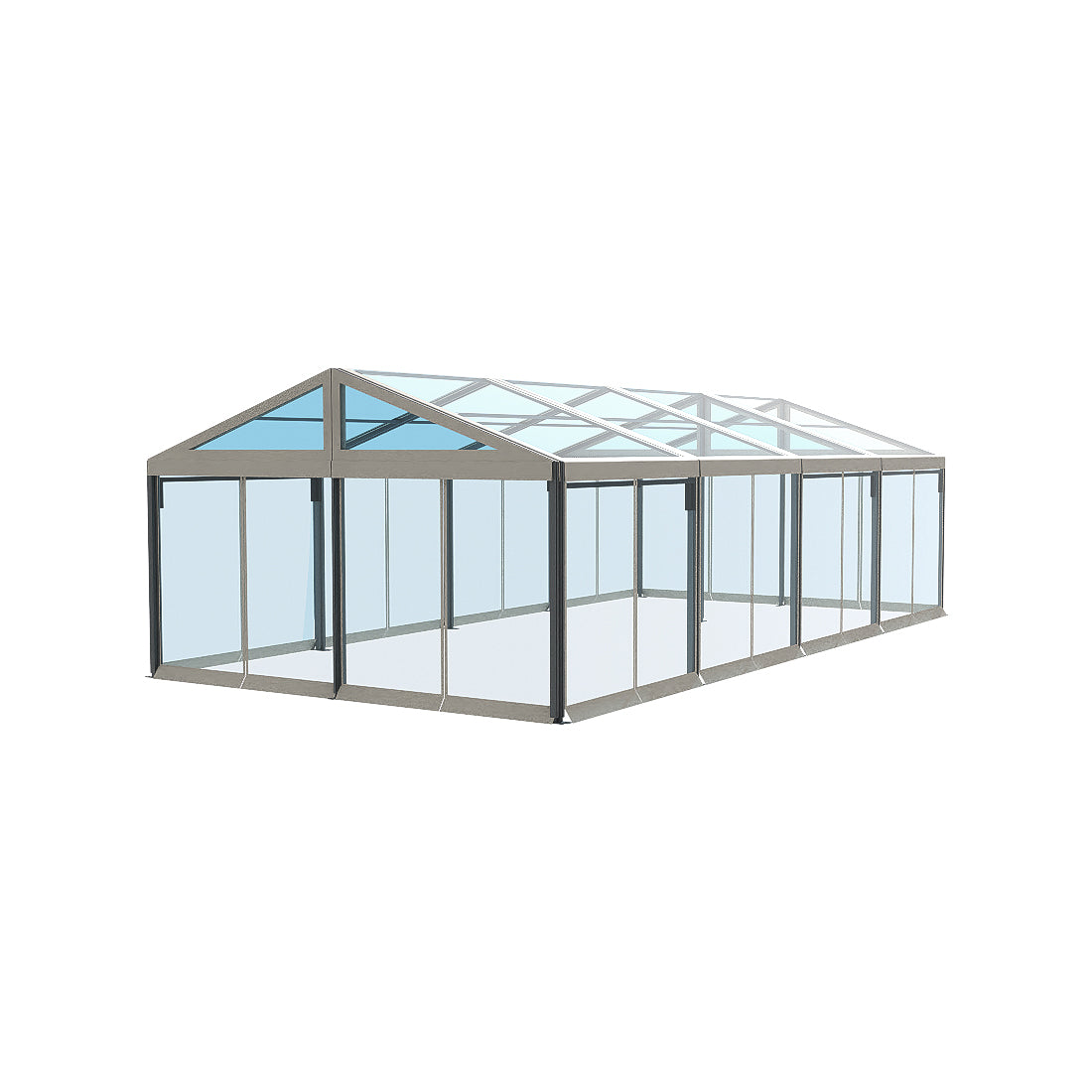

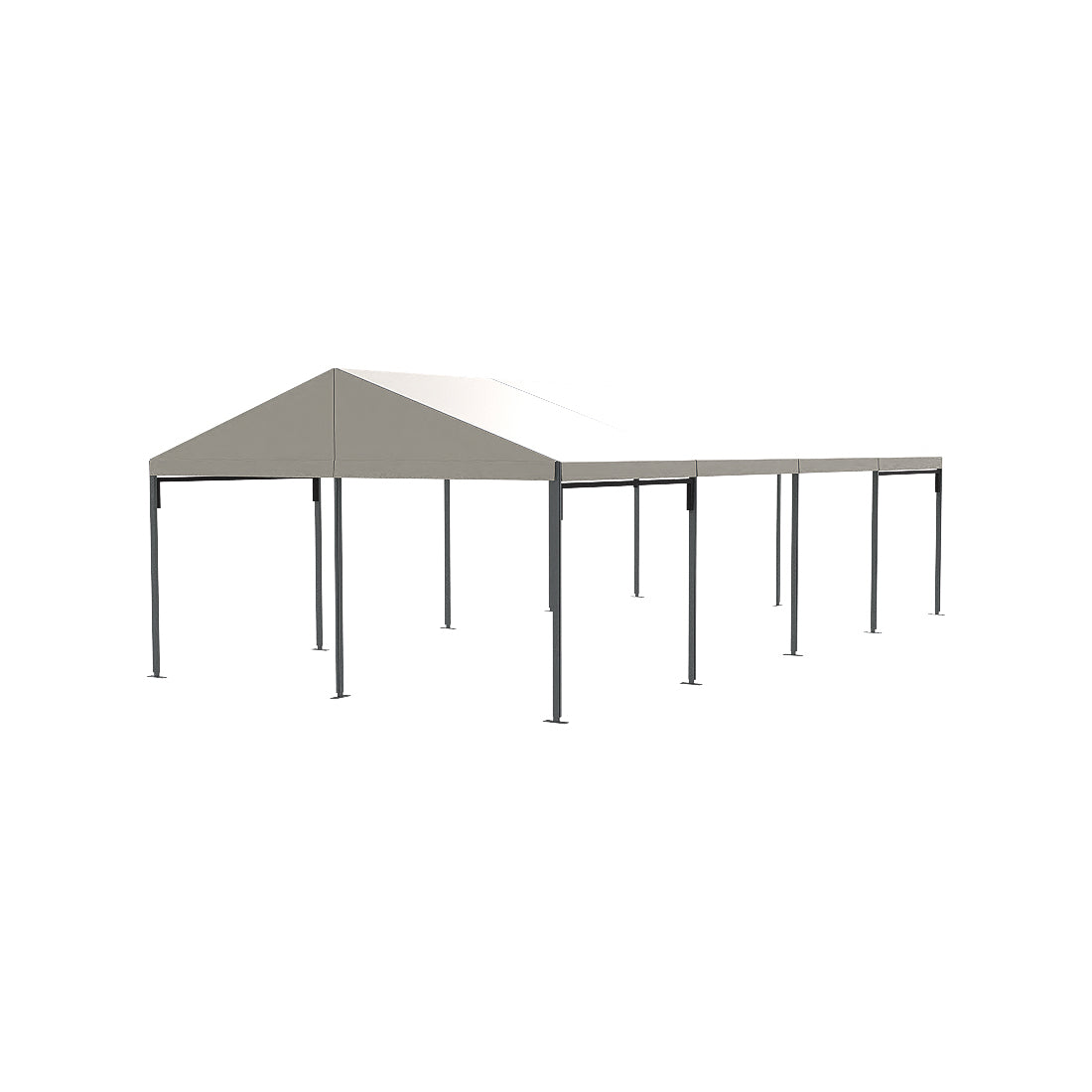

20' x 40'	72	100	72	96	80-96

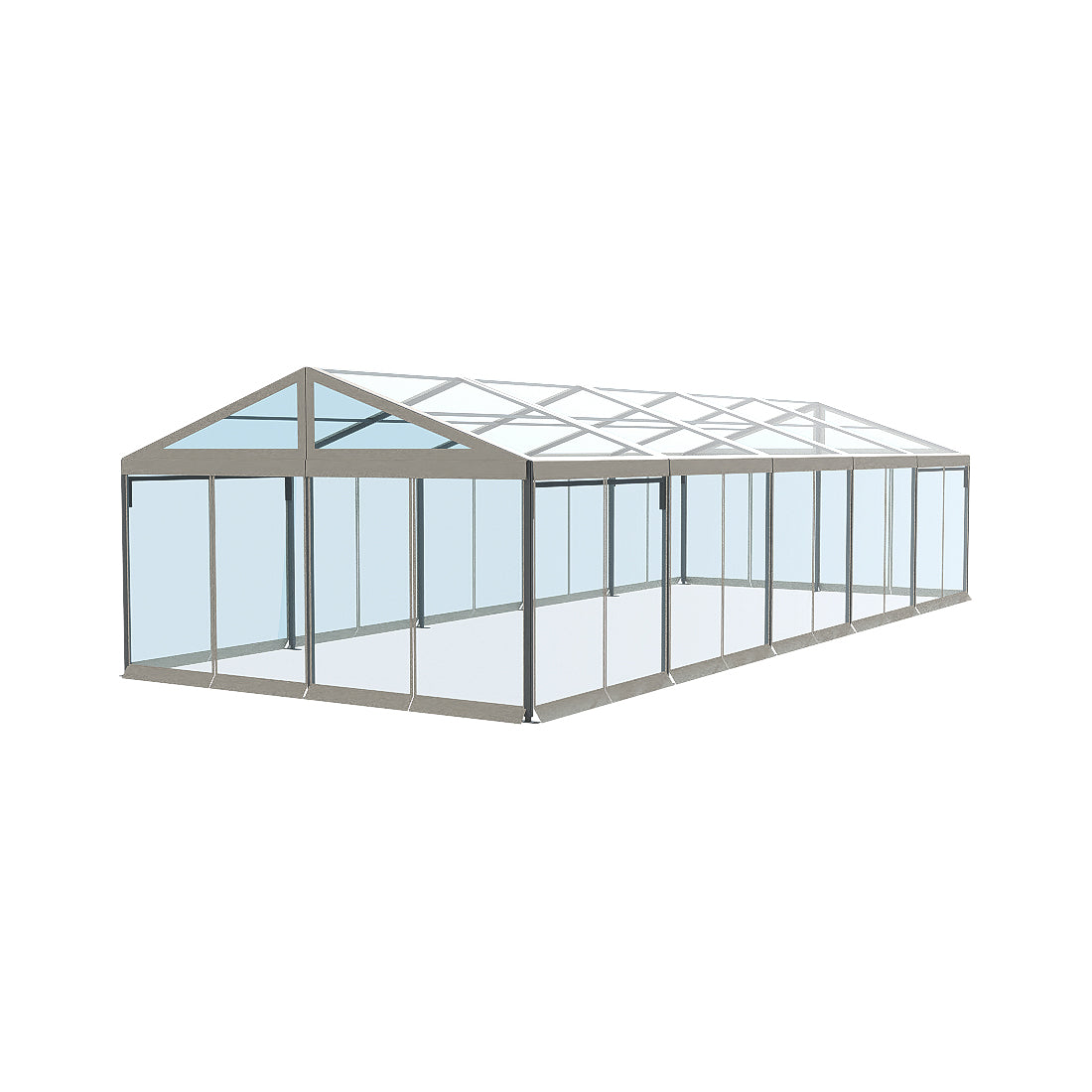

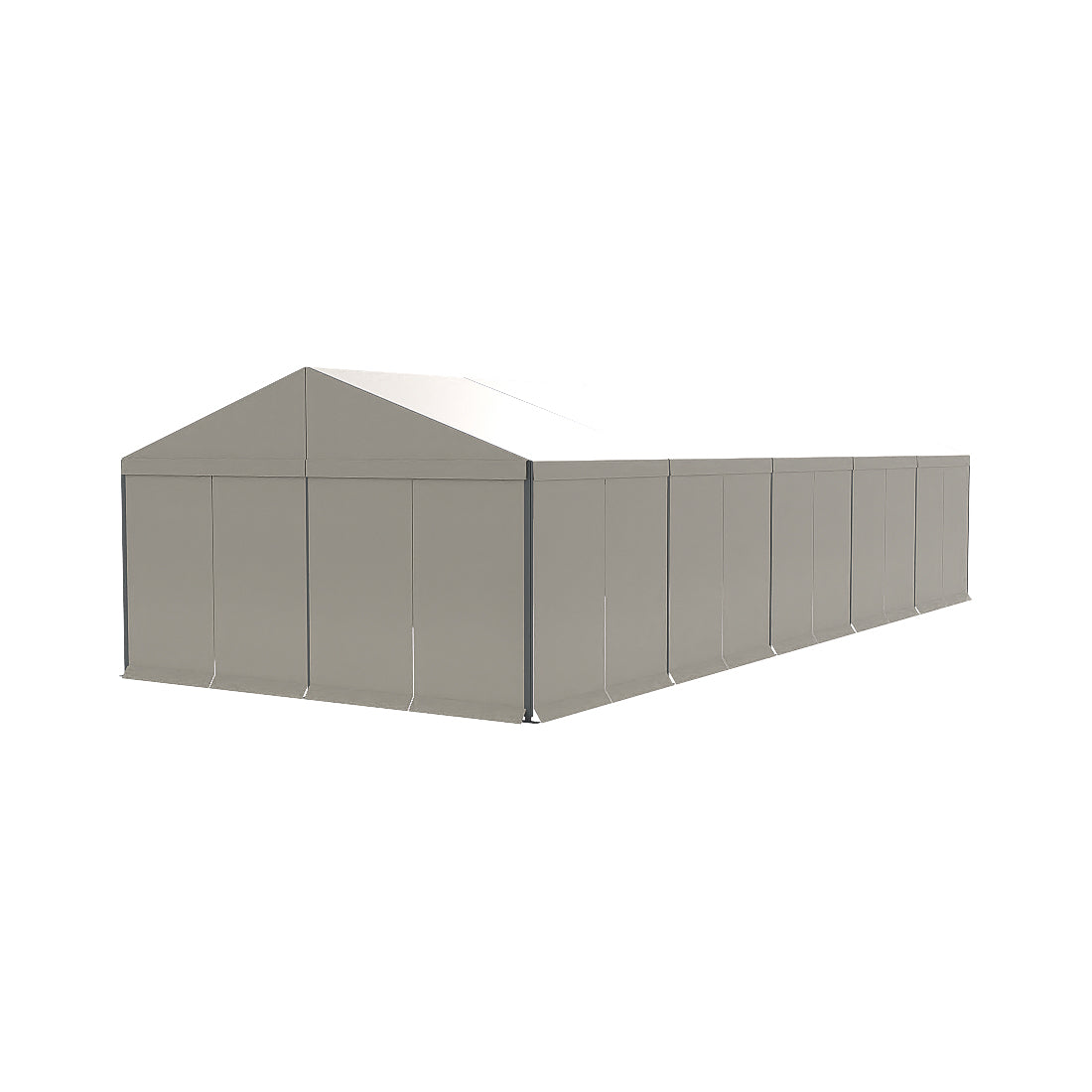

20' x 50'	90	125	96	120	100-120

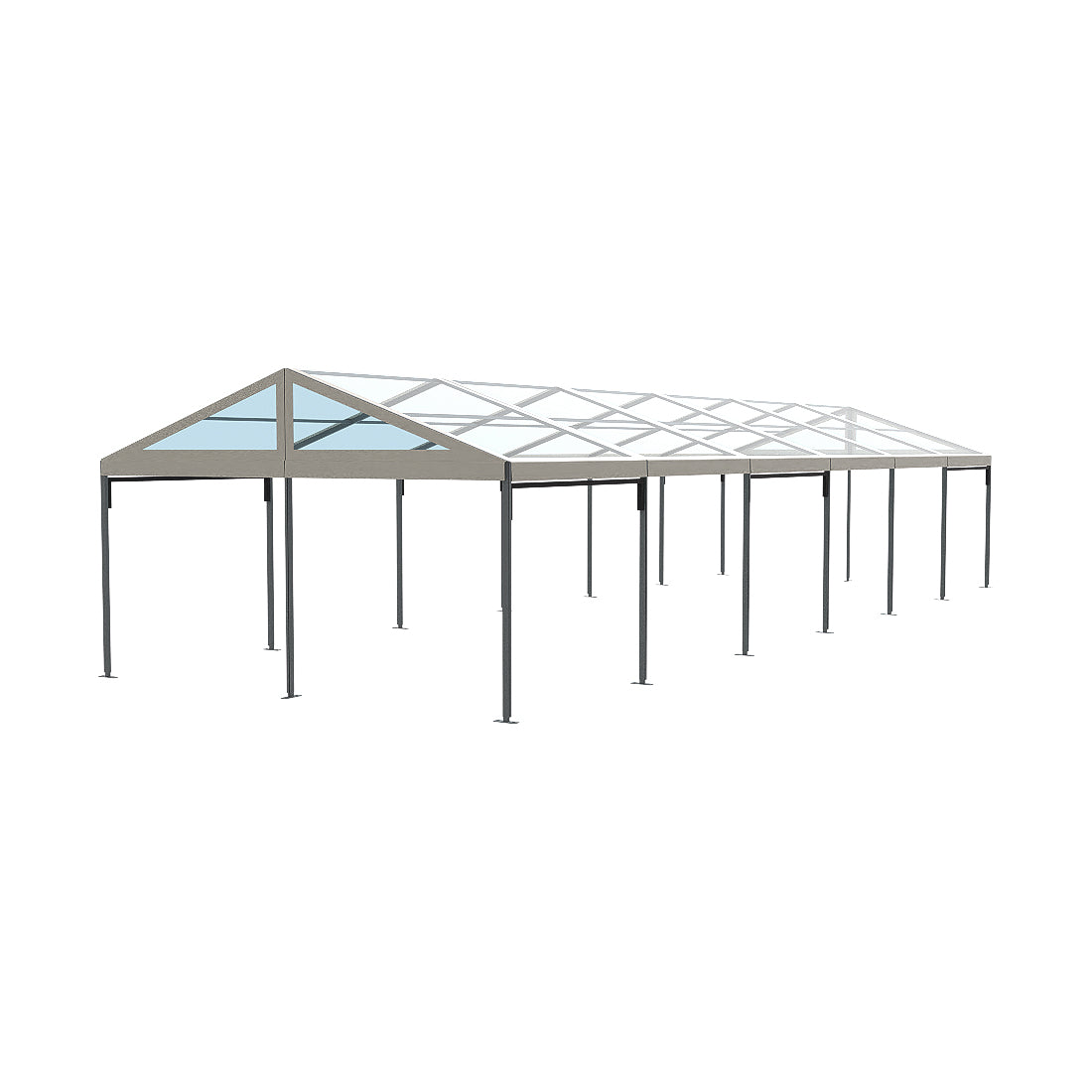

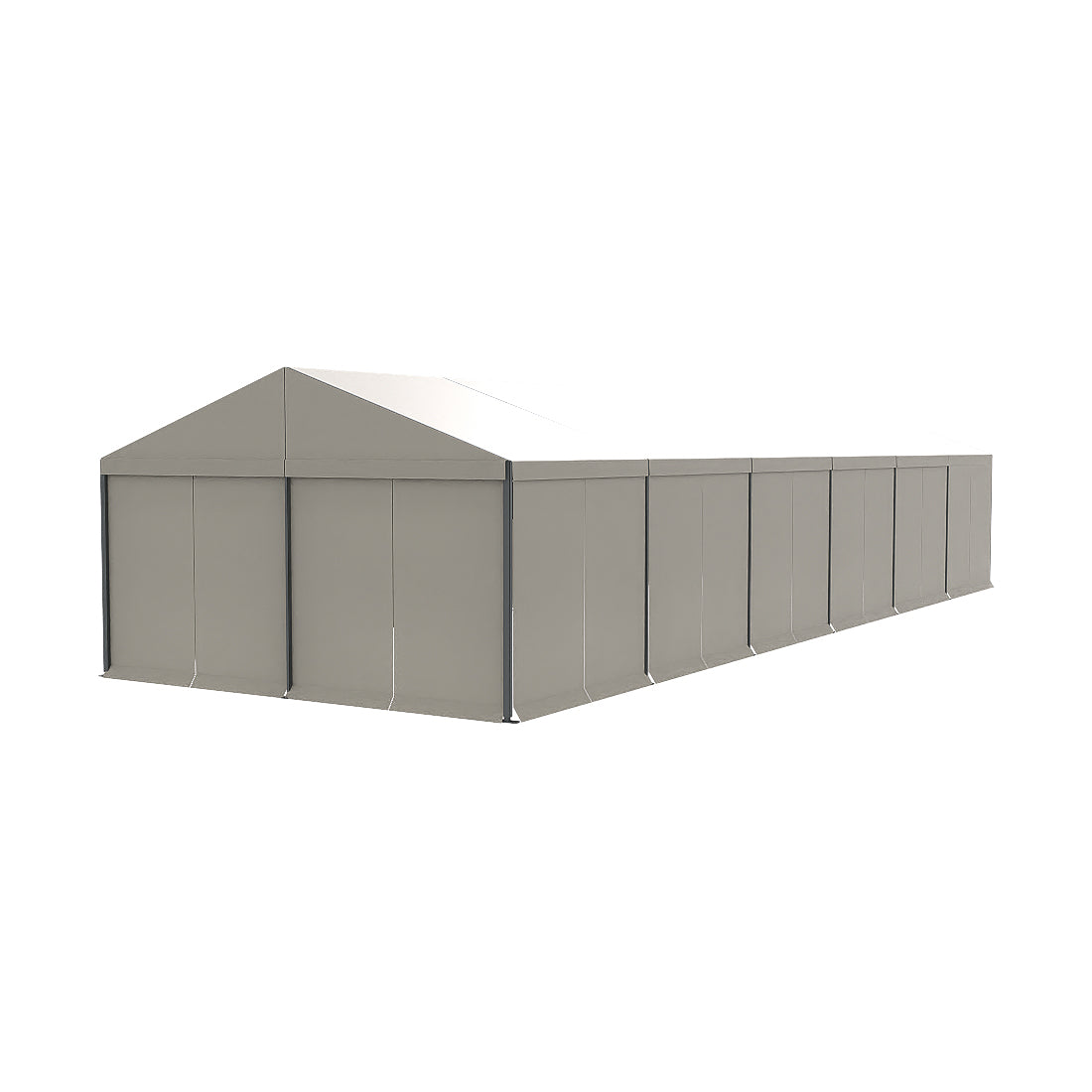

20' x 60'	108	150	120	144	120-144

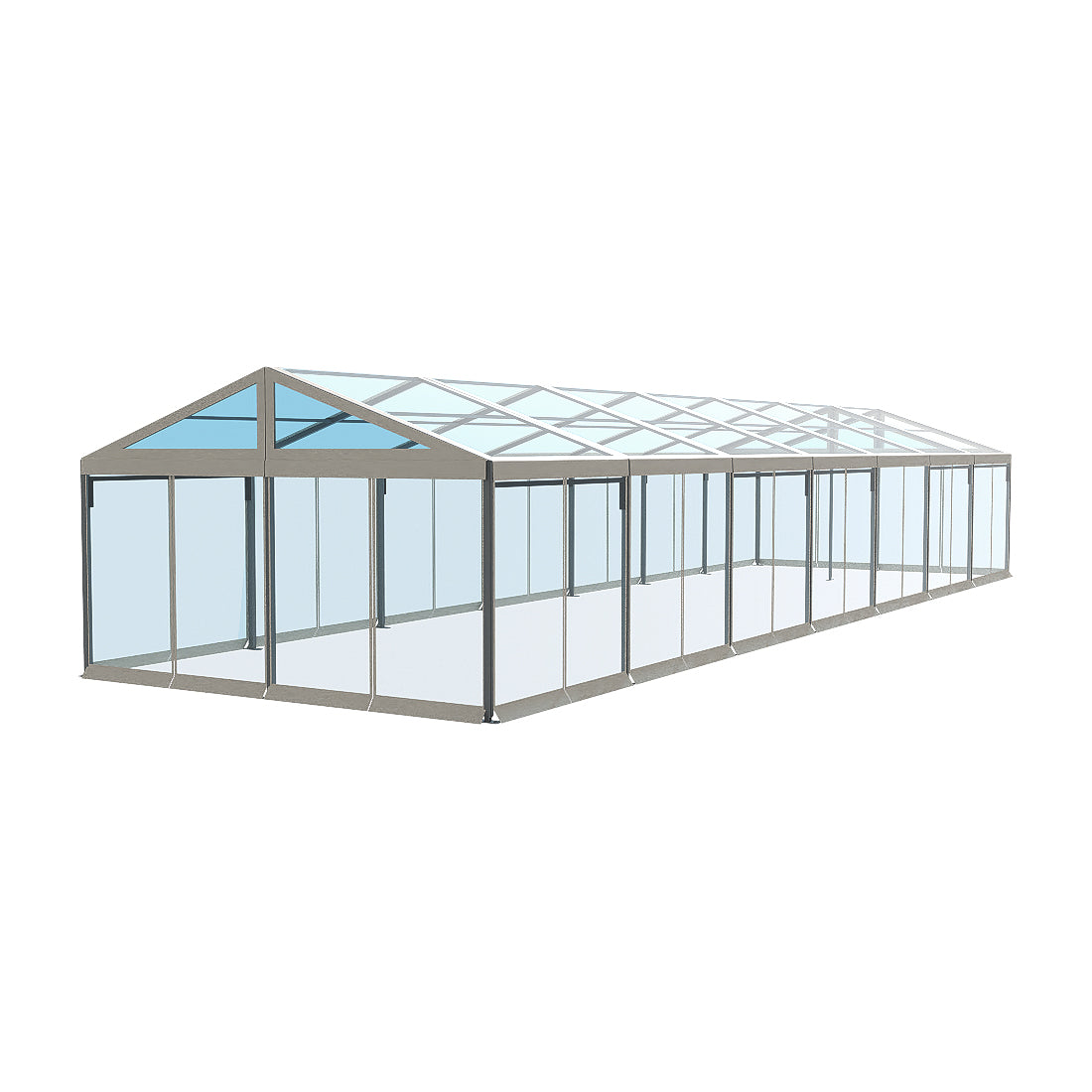

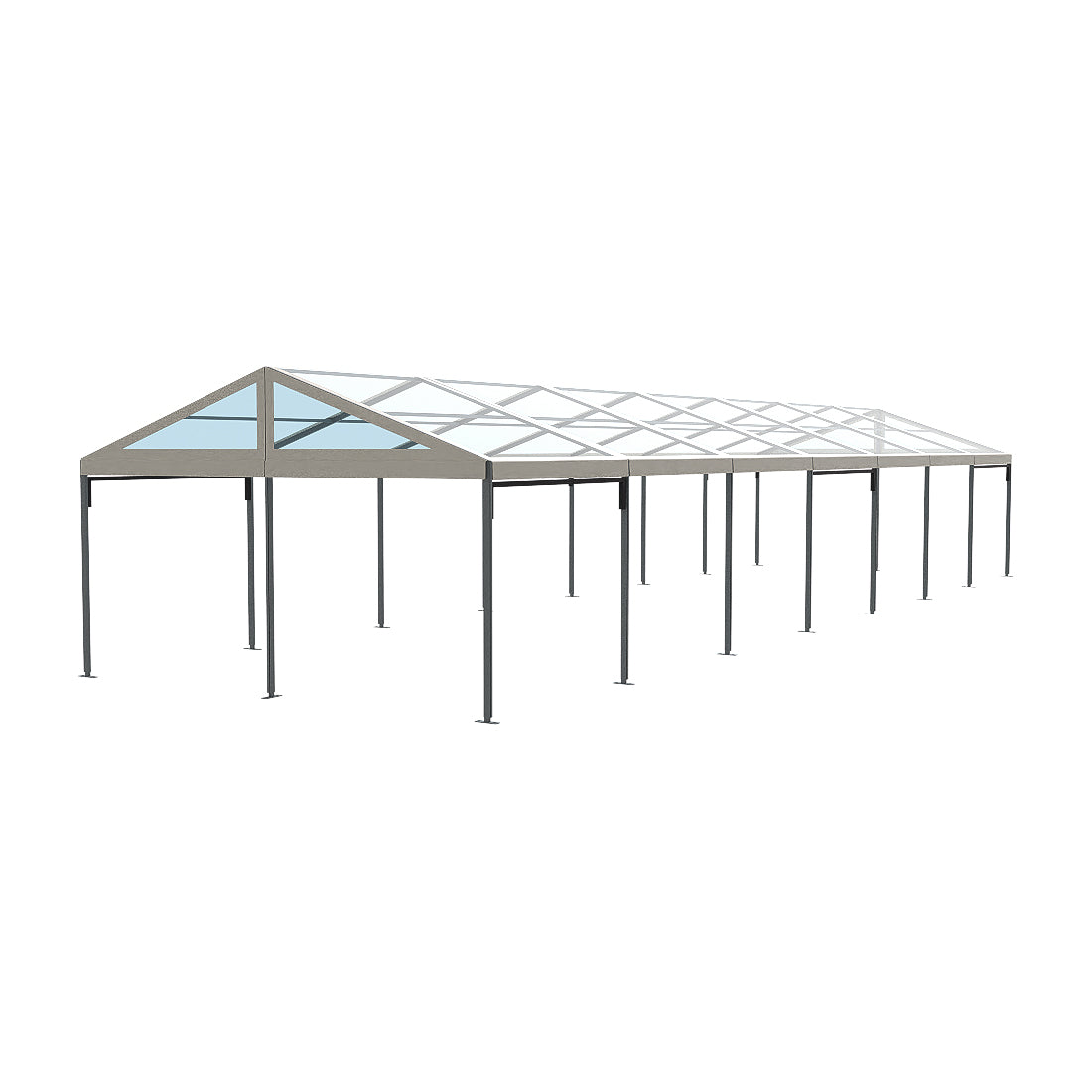

20' x 70'	126	175	144	168	140-168

This capacity chart is provided for general guidance only. Local regulations may dictate allowed capacity which may be different from the numbers we have provided.



Theatre seating
Includes a 3’3” (1m) centre aisle and a 10ft (3m) section at the front for presentation/ceremony

Trestle tables
7’8” (2.4m) Trestle tables seating 8 people each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables

Round tables
5’6” (1.8m) Round tables seating 10-12 each. This number uses the whole marquee, there is no room for anything else such as a dance floor or buffet tables etc.



Add-on accessories available (contact us for pricing)
